Make sure that the Fabric Board handles are in the open position, not flat against the faceplate.
Align the Fabric Board with the empty slot, and gently slide it into the chassis,
2.
making sure to support the Fabric Board from underneath (the sheet metal side).
See Figure 73, "Inserting the Fabric Interconnect F1-4 Fabric Board," on page
117.

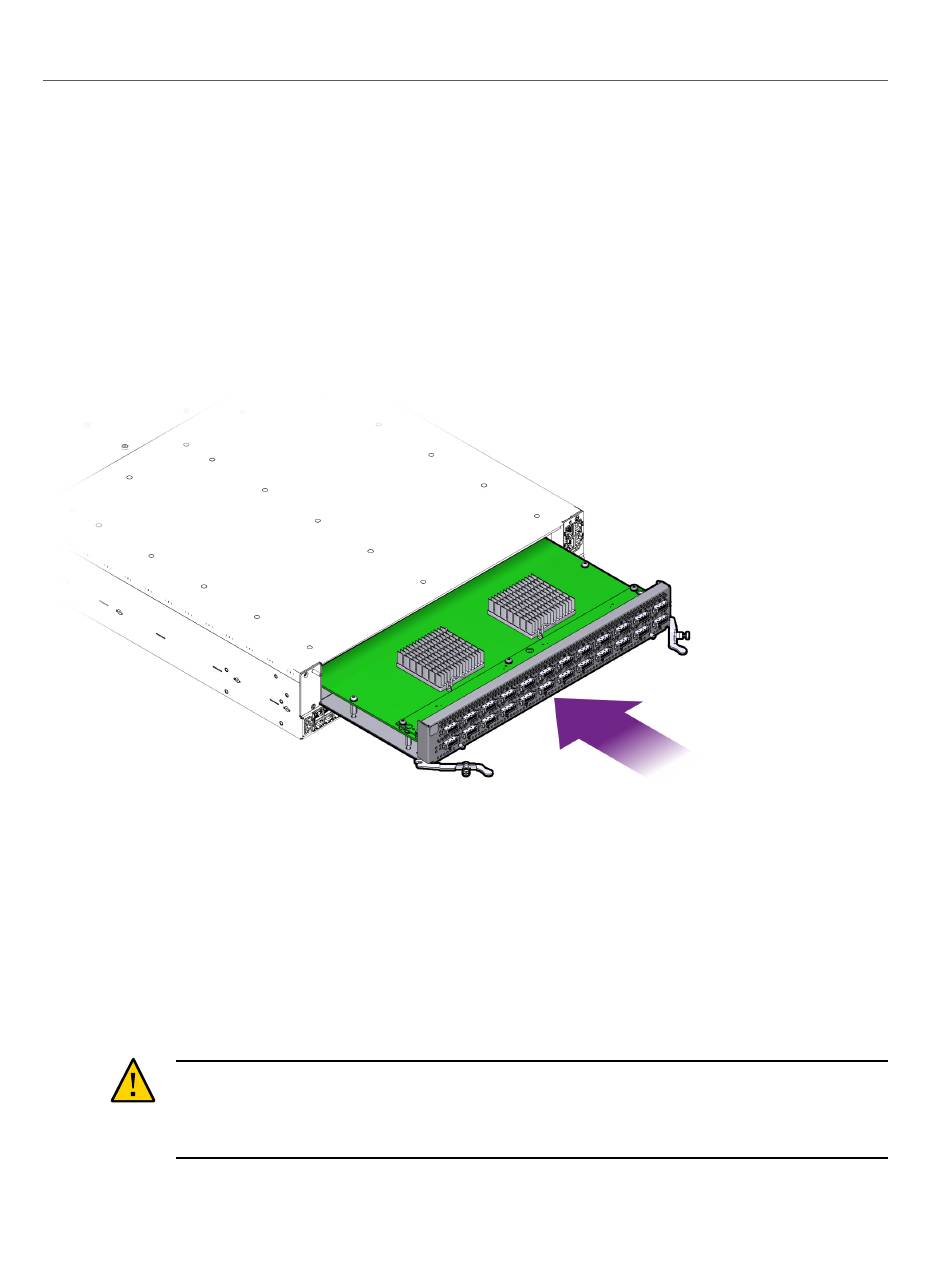

Inserting the Fabric Interconnect F1-4 Fabric Board
FIGURE 73
When the Fabric Board is almost completely inserted, you will feel some resistance when the
connector at the rear of the Fabric Board contacts its socket on the inside of the chassis.
3. When you feel the Fabric Board connector and socket meet, grasp the Fabric
Board handles and simultaneously press them inward (1). See
"Securing the Fabric Interconnect F1-4's Fabric Board," on page
Caution -
upward or downward pressure on the Fabric Board's handles when you are installing the Fabric
Board. You need to pivot the Fabric Board handles inward until they make contact with the
threaded standoff on the Fabric Board's faceplate.
Make sure to pivot the Fabric Board handles in a horizontal plane. Do not apply
Insert a Fabric Interconnect F1-4 DDR Fabric Board
Figure 74,
Performing Service Tasks
118.
