Install Fabric Interconnect F1-4 Power Supplies

Note -
it. This 30-second wait period is required to properly raise alarms and update the PSU part
number, serial number, and other pertinent information for the system's hardware inventory.
When hot swapping a PSU for a Fabric Interconnect F1-4, make sure to wait for more than 30
seconds before re-inserting a PSU.
1. Orient the new PSU so that the locking tab is at the bottom left corner when the
PSU is facing you.
2. Align the PSU with the empty PSU bay, and gently slide the PSU into the chassis
by pressing on the handle until the locking tab clicks back into place. See
68, "Inserting a Fabric Interconnect F1-4 PSU," on page

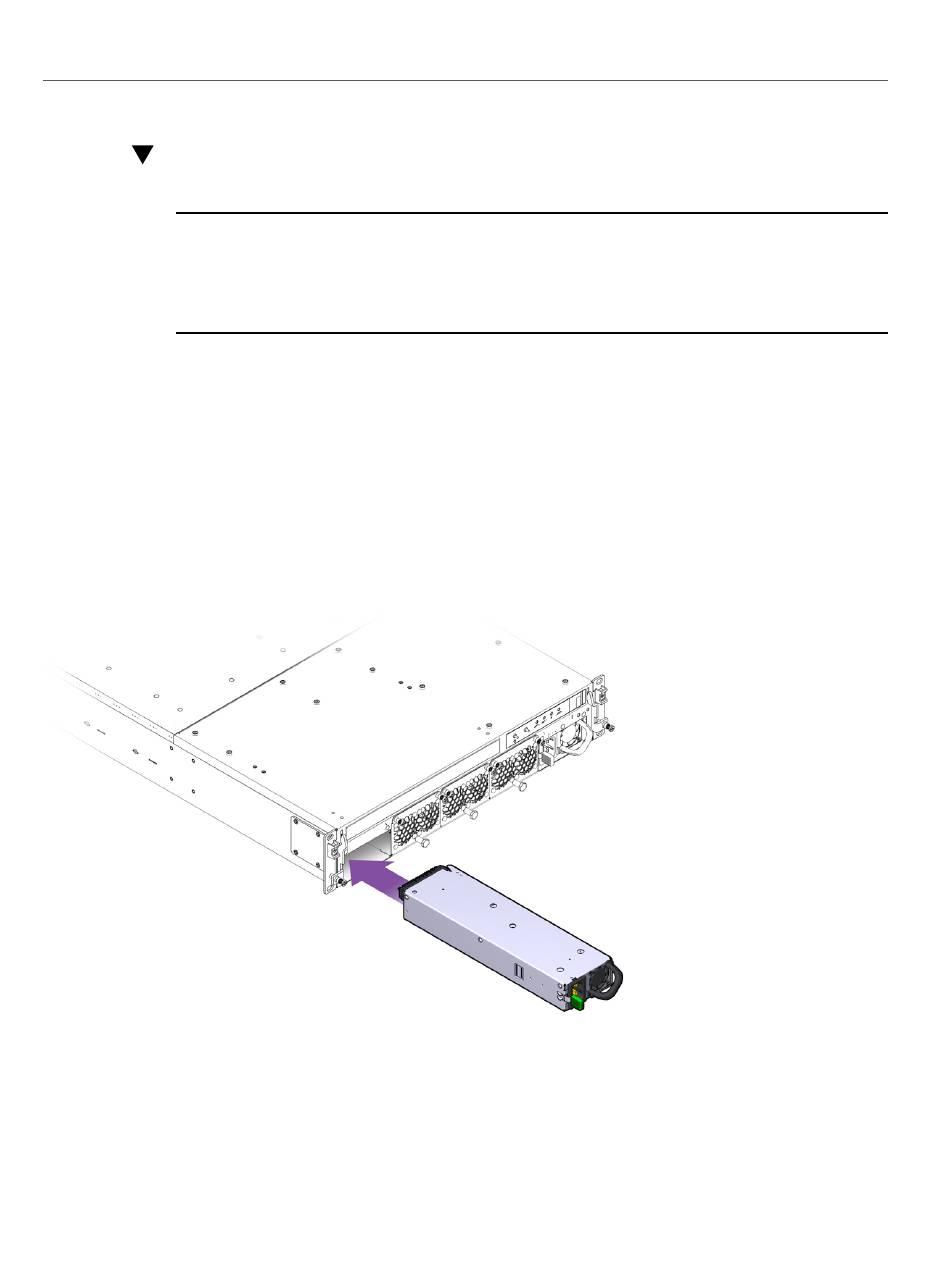

FIGURE 68 Inserting a Fabric Interconnect F1-4 PSU
When the PSU is almost all the way inserted, you might feel some resistance, which is caused
by the PSU's power socket meeting its mating part on the Fabric Interconnect F1-4 midplane.
Continue to apply gentle pressure until the PSU is fully seated in the Fabric Interconnect F1-4
chassis.
When a PSU is disconnected, you must wait for at least 30 seconds before re-inserting
Install Fabric Interconnect F1-4 Power Supplies
111.
Performing Service Tasks
Figure
111
