Attach the Right Angle Bracket
10-32 x .75" Phillips pan-head screws
■
12-24 x .75" Phillips pan-head screws
■
M6 x 20 mm Phillips pan-head screws
■

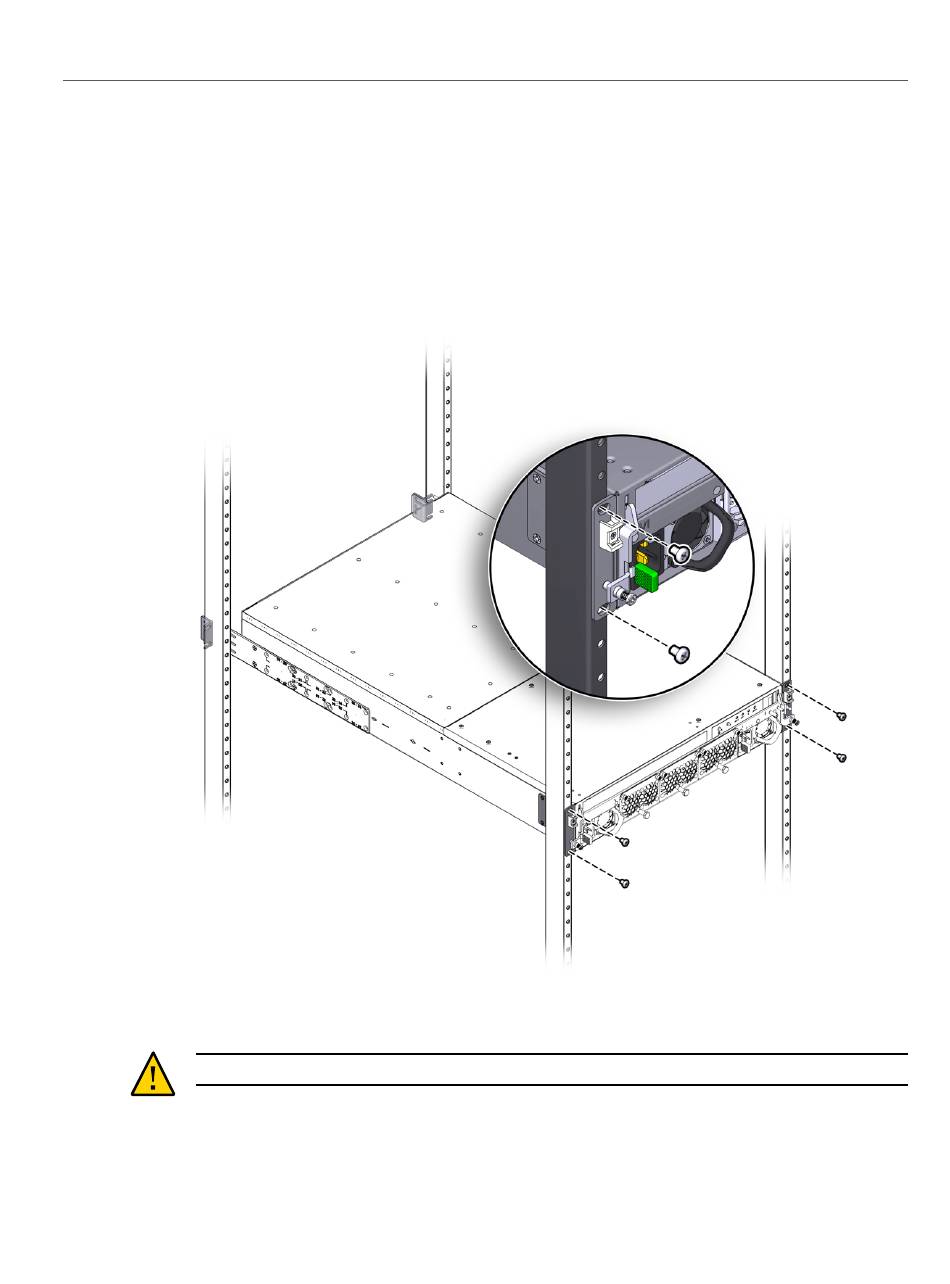

FIGURE 27
Caution -
3. Align the slots in the rack-depth rails with the screw holes in the right angle
brackets, and insert the 6 M3.5 x .6 x 6 mm Phillips flat-head screws through the
54 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Securing the Front Mounting Brackets to the Equipment Rack
Make sure that all screws are tight before proceeding.
