Insert a Fabric Interconnect F1-4 DDR Fabric Board

Caution -
upward or downward pressure on the Fabric Board's handles when you are removing the Fabric
Board. You need to pivot the Fabric Board handles outward just until you feel the Fabric Board
disconnect from the midplane. Do not force the Fabric Board handles wider than is required to
disconnect the Fabric Board.
5. After the Fabric Board has disconnected from the Fabric Interconnect F1-4
midplane, gently slide the Fabric Board out of the chassis, making sure to
support the Fabric Board from underneath (the sheet metal side). See
"Removing the Fabric Interconnect F1-4 Fabric Board," on page

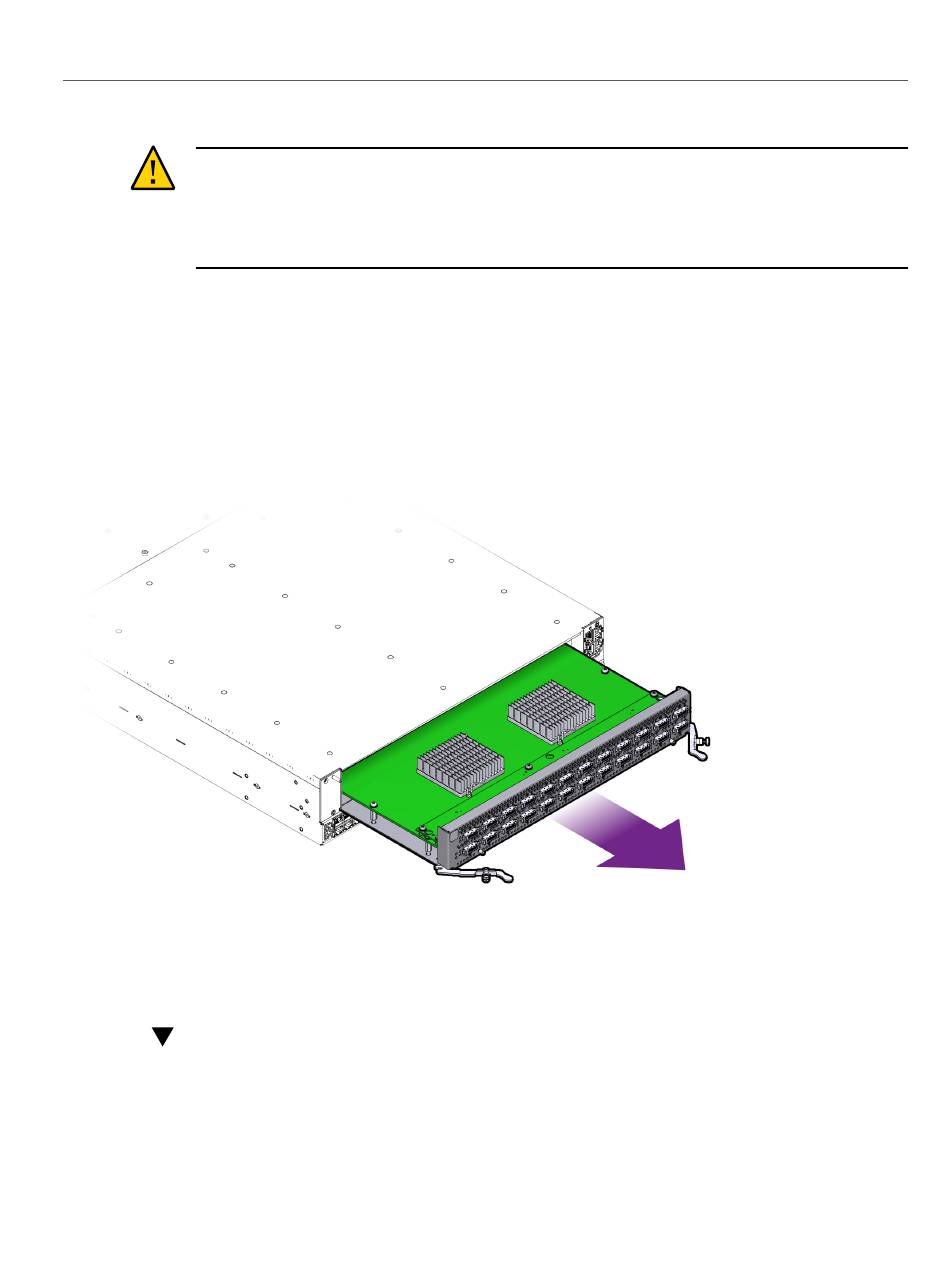

FIGURE 72 Removing the Fabric Interconnect F1-4 Fabric Board
Insert a Fabric Interconnect F1-4 DDR Fabric
Board
1. Orient the Fabric Board so that the InfiniBand server ports are facing you and
the sheet metal side is facing down.
116 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Make sure to pivot the Fabric Board handles in a horizontal plane. Do not apply
Figure 72,
116.
