Upgrade a Fabric Interconnect F1-15 to a QDR Fabric Board

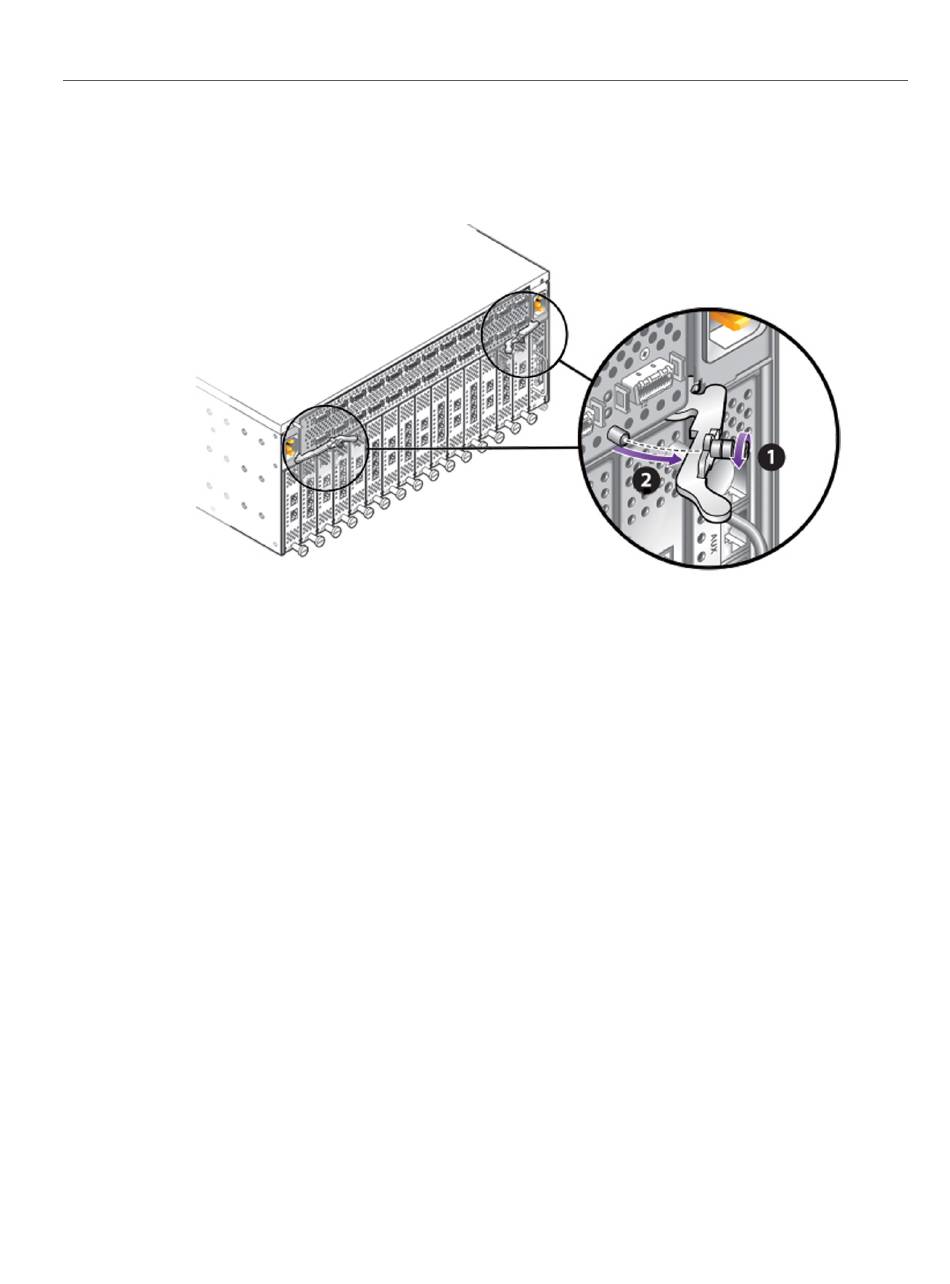

FIGURE 83
Grasp the DDR Fabric Board handles, and keeping the level, pivot them toward
5.
you until they are pointing straight at you (2). You should feel the Fabric Board's
hinges disconnect it from the Fabric Interconnect's midplane.
6. Grasping both of the release levers, slide the DDR Fabric Board halfway out of
the chassis. When the Fabric Board is halfway out, place your hand under the
sheet metal bottom to support it, then slide it out of the chassis the rest of the
way. Figure 84, "Removing the DDR Fabric Board from a Fabric Interconnect
F1-15," on page 131
130 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Unlocking the DDR Fabric Board from a Fabric Interconnect F1-15
shows removing the Fabric Board.
