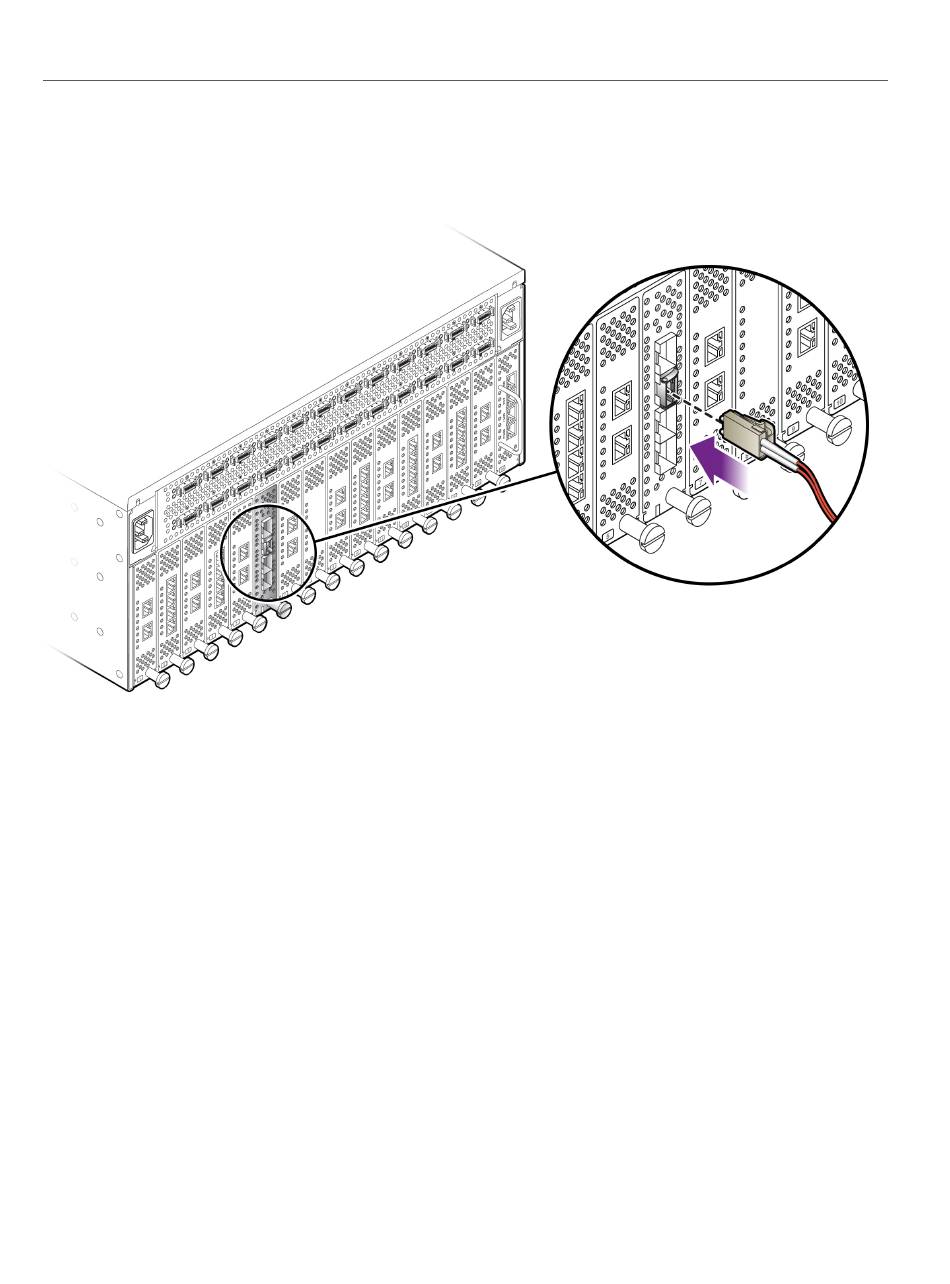

Inserting the Optical Cable into the Optical Transceiver
FIGURE 54
5. Connect the other end of the cable to a 10 Gbps port on a peer device, such as a
10 Gbps Ethernet switch.
6. Check the Link LED on the 4-Port 10 GE module's port to make sure that the port
detects the cable. The Link LED should be glowing steady green.
7. Check the Link LED on the peer device. The Link LED on the peer device should
show that a physical link has been successfully established.
Check the Activity LED. If traffic is being transmitted or received between the 4-
8.
Port 10 GE Module and the peer device, the Activity LED blink amber whenever
traffic is detected on the link.
Connect the 4-Port 10 GE Module to Other Equipment
Installing the Fabric Interconnect 85
