Attach the Right Angle Bracket in a 27" Sun/
Oracle Rack
With the chassis on the rail kit, follow these steps to install the right angle brackets for a 27"
Sun/Oracle equipment rack:
1. Align the 27" angle bracket (7068910 Rev 03 or later) so that it is outside of the
side panels. Make sure that the angle bracket's fold fits together with the fold in
the side panel.
From inside the side panels, insert the 10-32 flat-head screws through the slots
2.
in the side panel and into the angle bracket's screw holes. Each angle bracket
requires 3 screws.
Side Panels," on page 35
screws. When the angle brackets are correctly installed, the slotted surface will
lie flush against the rack posts.

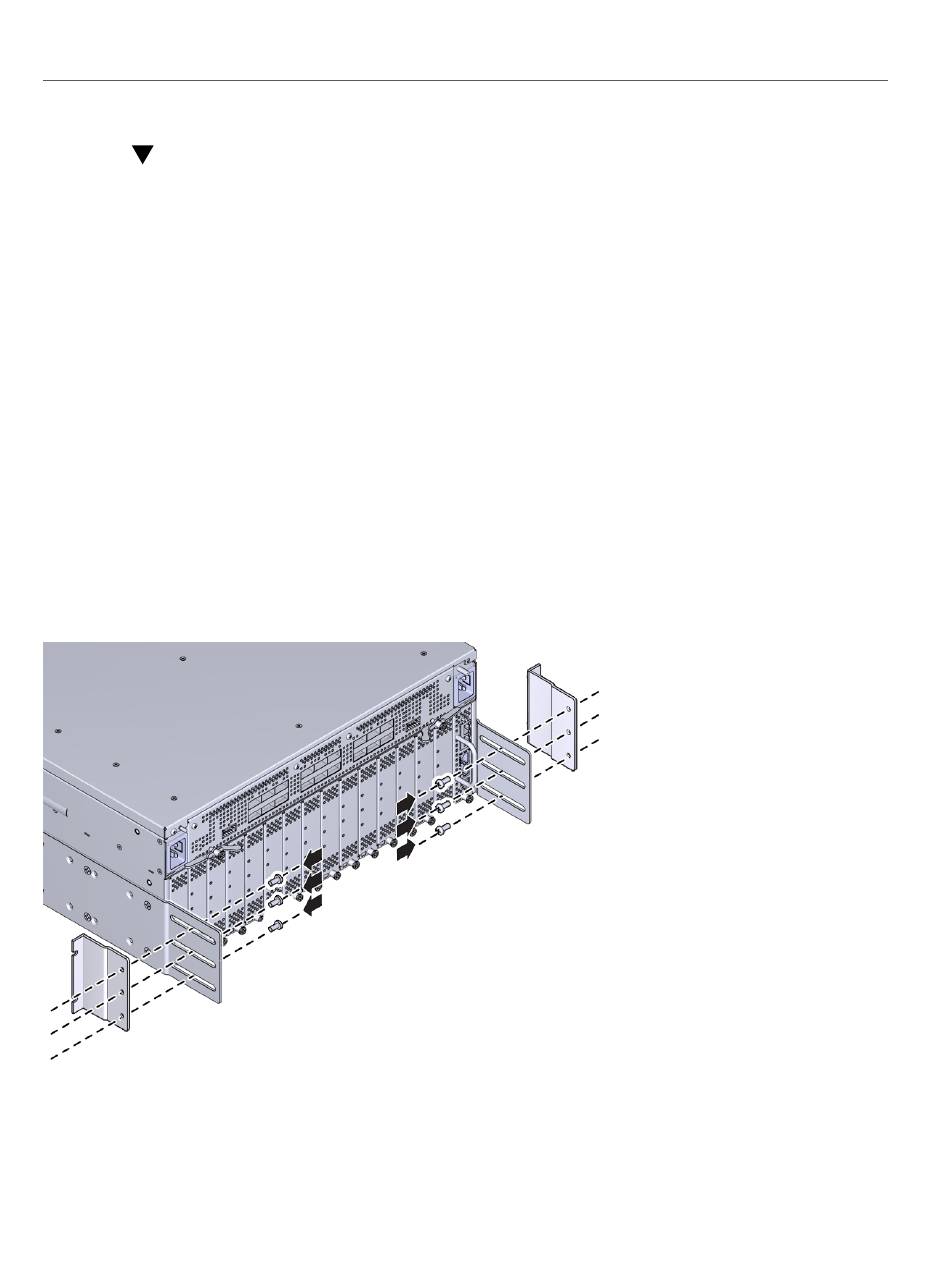

FIGURE 14 Attaching Angle Brackets for 27" Rack to the Side Panels
Make sure the screw holes in the angle brackets lie flush against the slotted edge of the side
panels. The slotted edge of the angle bracket will attach to the rack post.

Attach the Right Angle Bracket in a 27" Sun/Oracle Rack

Figure 14, "Attaching Angle Brackets for 27" Rack to the
shows aligning the angle brackets and inserting the
