Oracle Fabric Interconnect Series User Manual page 154

Remove a Fabric Interconnect F1-4 Front Panel Assembly

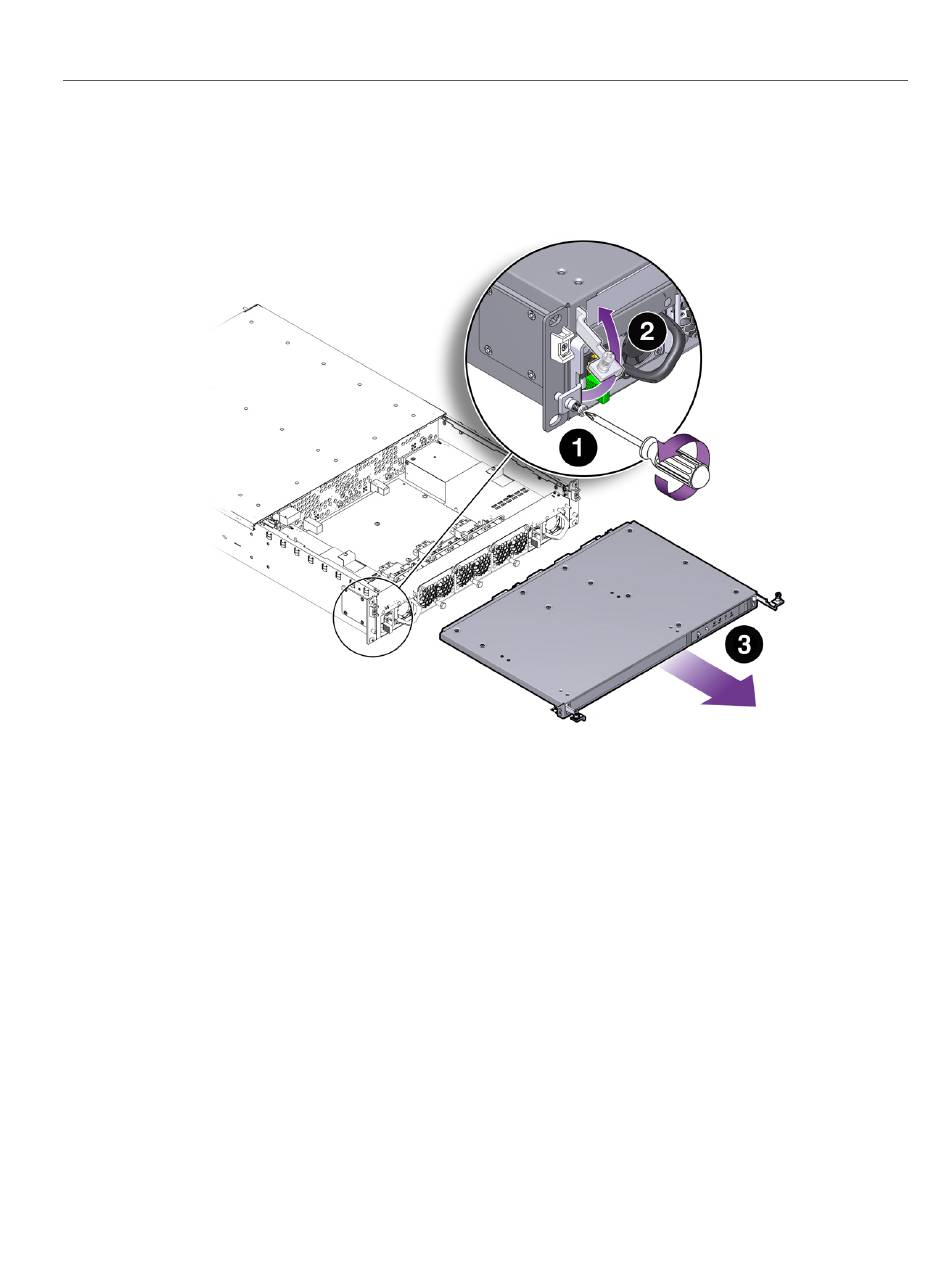

FIGURE 98
When the screws are loose, gently lift the lever arms in a 90 degree upward arc
3.
(2) as shown in
Assembly," on page
Panel disengage from the chassis.
4. Holding the lever arms, apply even pressure to both handles and slide the Front
Panel towards you (3) until it is completely removed from the Fabric Interconnect
F1-4.
154 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Removing the Fabric Interconnect F1-4 Front Panel Assembly
Figure 98, "Removing the Fabric Interconnect F1-4 Front Panel
154. When both arms are lifted, you should feel the Front
