Replace the Fabric Interconnect F1-15 DDR Fabric
Board
To replace the Fabric Interconnect F1-15 fabric board, follow this procedure:
1. Power down the Fabric Interconnect.
2. Disconnect all cables attached to the server ports, as well as any other cables
that could interfere with the Fabric Board's removal.
3. Using a screwdriver, loosen the captive screws in the release levers by turning
them counterclockwise (1). See
F1-15 Fabric Board," on page

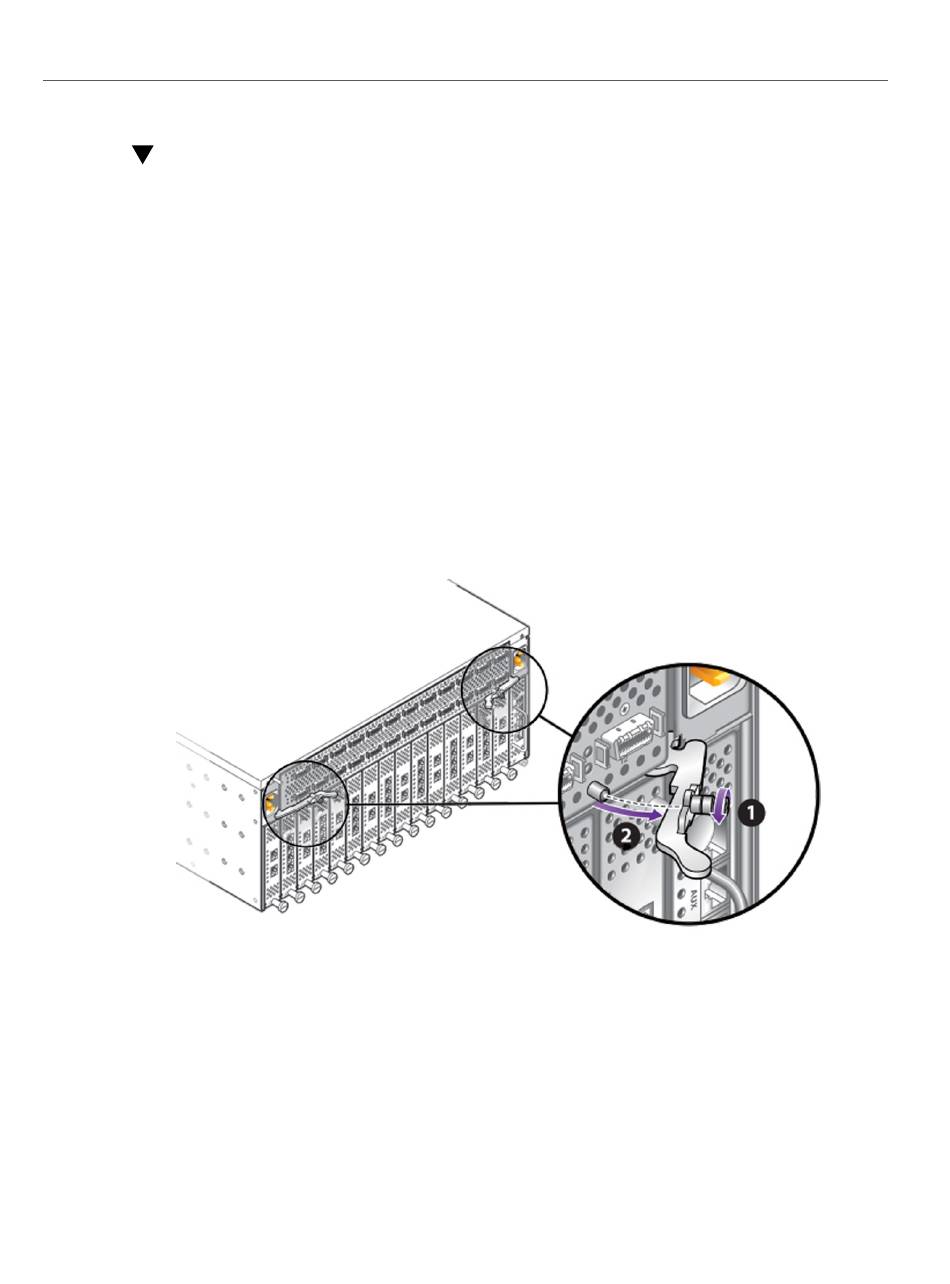

FIGURE 69 Unlocking the Fabric Interconnect F1-15 Fabric Board
4. Grasp both of the Fabric Board's release levers, and simultaneously swing them
outward (2).
5. Grasping both of the release levers, slide the Fabric Board out of the chassis.
See Figure 70, "Removing the Fabric Interconnect F1-15 Fabric Board," on page
114.

Replace the Fabric Interconnect F1-15 DDR Fabric Board

Figure 69, "Unlocking the Fabric Interconnect
113.
Performing Service Tasks 113
