2. Disconnect all cables attached to the server ports, as well as any other cables
that could interfere with the Fabric Board's removal.
Using a screwdriver, loosen the captive screws in the release levers by turning
3.
them counterclockwise (1). See
F1-15 QDR Fabric Board," on page
Unlocking the Fabric Interconnect F1-15 QDR Fabric Board

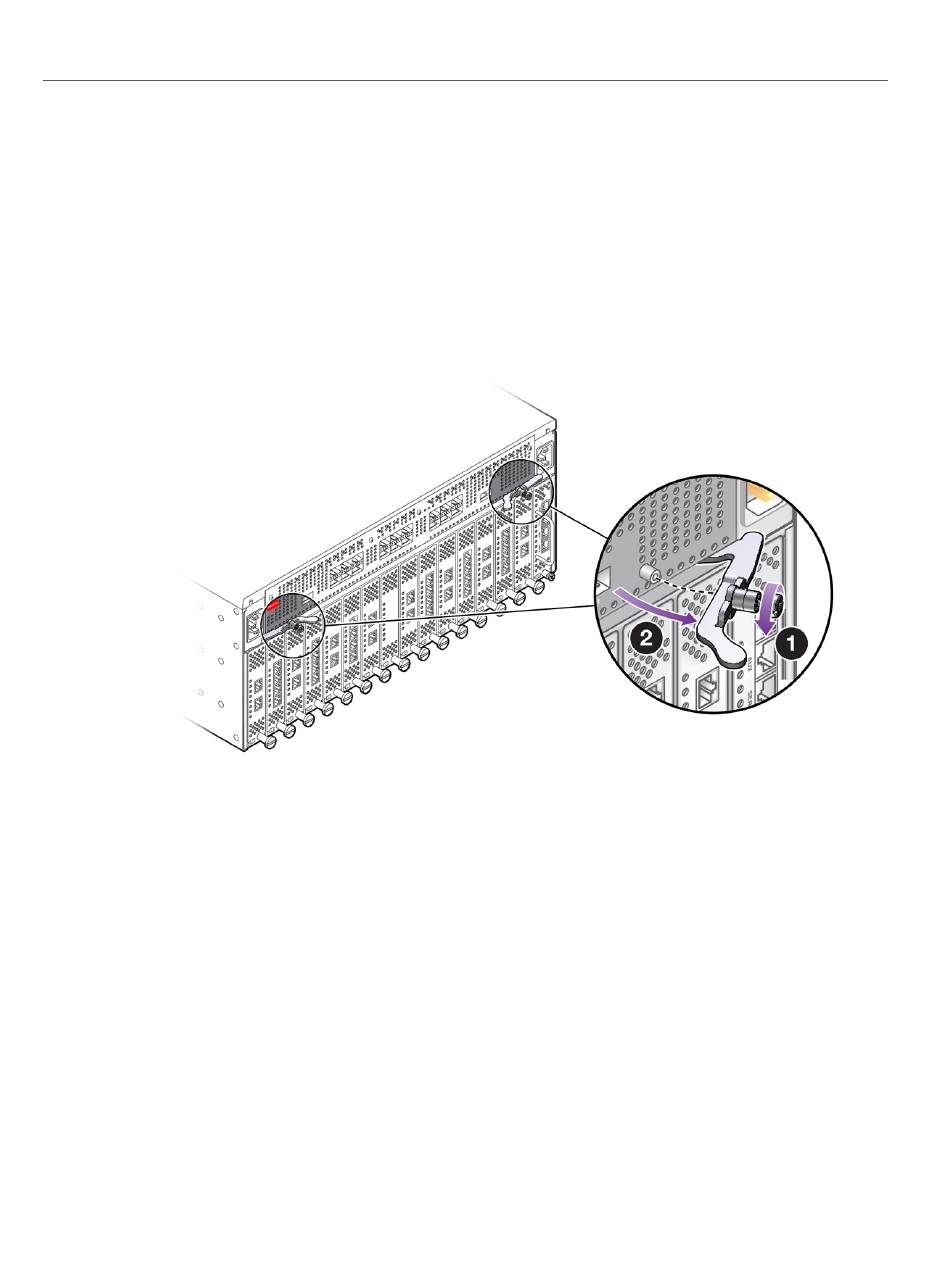

FIGURE 75
4. Grasp both of the Fabric Board's release levers, and simultaneously swing them
outward (2).
Grasping both of the release levers, slide the Fabric Board out of the chassis.
5.
See Figure 76, "Removing the Fabric Interconnect F1-15 QDR Fabric Board," on
page 120.
Replace the Fabric Interconnect F1-15 QDR Fabric Board
Figure 75, "Unlocking the Fabric Interconnect
119.
Performing Service Tasks 119
