Install I/O Modules in a Fabric Interconnect F1‐4
is facing you. Also, ensure that the module is aligned with the slot before sliding
it into the chassis.

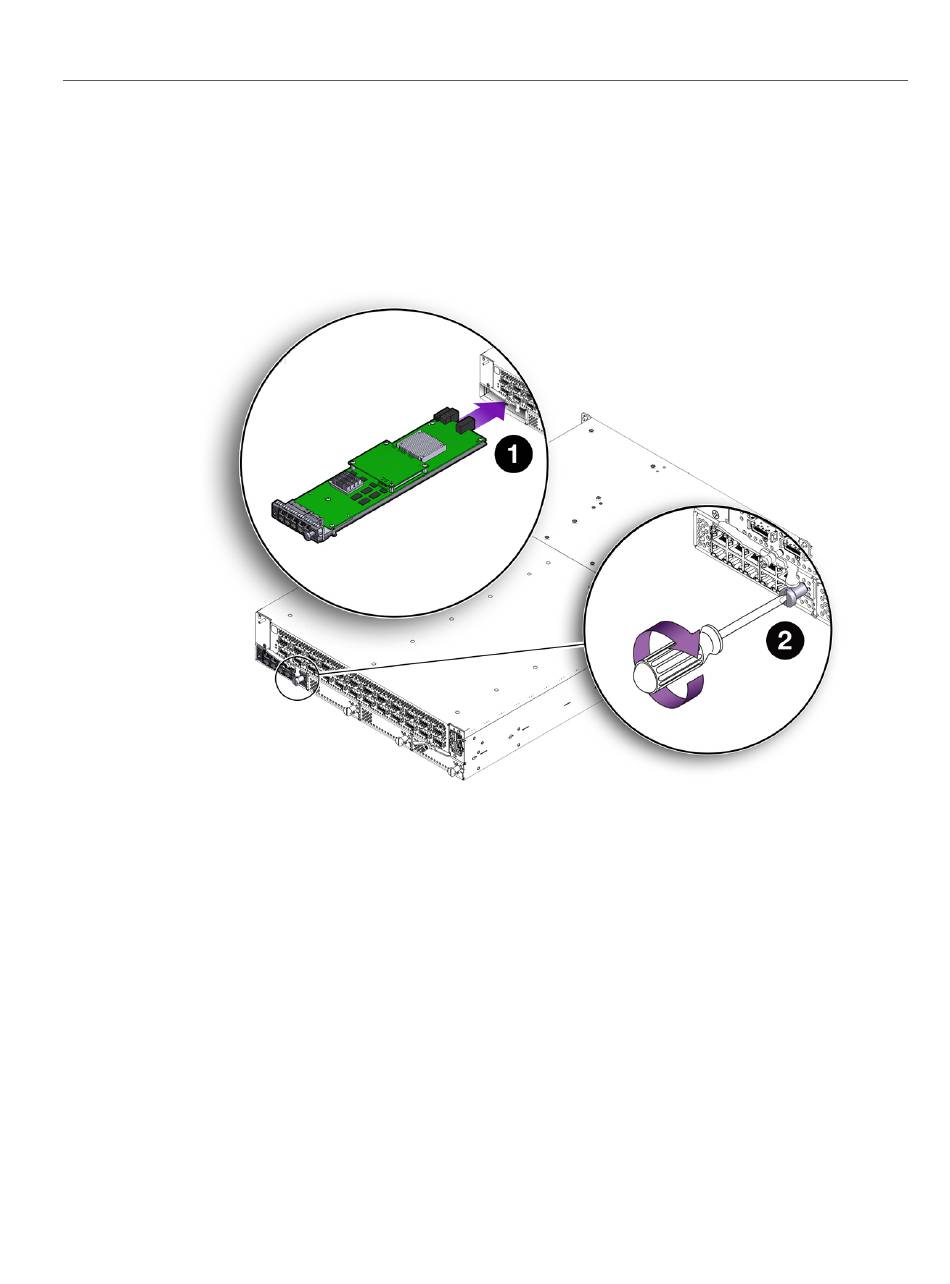

FIGURE 45
When the I/O Module is almost completely inserted, you will feel some resistance, which is the
I/O Module's connector meeting its midplane socket. Continue to apply gentle pressure until the
connector is seated in the socket.
6. When the module is completely inserted, it should lie flush with the face of the
Fabric Interconnect F1-4.
Using a slotted screwdriver, lock the I/O Module into the chassis (2) by turning
7.
the lock 90 degrees clockwise.
8. Repeat this procedure as needed to remove all the I/O module blanks and install
all the I/O modules.
74 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Inserting a Fabric Interconnect F1-4 I/O Module
