- Page 1 Oracle Talari T860 Hardware Guide Original Publication Date: Nov 1, 2019...
- Page 2 This software or hardware and documentation may provide access to or information on content, products, and services from third parties. Oracle Corporation and its affiliates are not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Oracle...
-
Page 3: Table Of Contents
Oracle Talari T860 Hardware Guide Table of Contents About This Document ..............................4 Reference Documents ............................4 Hardware and Software Requirements........................5 About the APN Appliance ............................6 Talari APN Overview ............................6 Front Panel Configuration ..........................7 Front LED Codes ............................7 Rear Panel Configuration ........................... -
Page 4: About This Document
For non-technical issues such as registration or assistance with My Oracle Support, select 2. You are connected to a live agent who can assist you with My Oracle Support registration and opening a support ticket. My Oracle Support is available 24 hours a day, 7 days a week, 365 days a year. -
Page 5: Reference Documents
Loss of the system ability to provide any required critical or major trouble notification Any other problem severely affecting service, capacity/traffic, billing, and maintenance capabilities may be defined as critical by prior discussion and agreement with Oracle. Locate Product Documentation on the Oracle Help Center Site Oracle Communications customer documentation is available on the web at the Oracle Help Center (OHC) site, http://docs.oracle.com. -
Page 7: Hardware And Software Requirements
Oracle Talari T860 Hardware Guide Hardware and Software Requirements Oracle Talari T860 APN Appliances (APNAs) have the following hardware and software requirements: Hardware: T860 APNAs require a standard 19 inch (480mm) two post rack for mounting. Software: The APNA Web Console is supported in latest versions of the following web browsers: ... -
Page 8: About The Apn Appliance

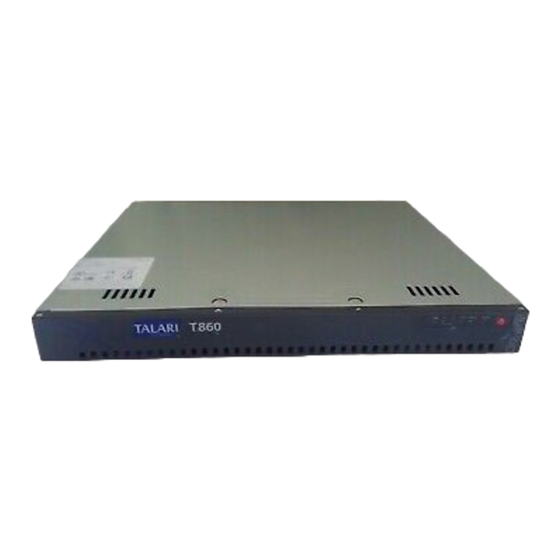

Oracle Talari T860 Hardware Guide About the APN Appliance Designed to bring reliability and bandwidth to regional data centers and small headquarters, the 1U rack-mountable T860 APN Appliance (APNA) affordably delivers up to 200 Mbps across 8 WAN links and connects up to 32 sites, complementing Talari’s higher-capacity APNA models. -
Page 9: Front Panel Configuration
Oracle Talari T860 Hardware Guide Front Panel Configuration Bypass Power On P o we r Indicators Disk Activity B u t t o n Front LED Codes Description Off = The system is powered off Power Green = The system is powered on... -
Page 10: Rear Panel Configuration
Oracle Talari T860 Hardware Guide Rear Panel Configuration – Port 1 User defined; forms – Ports X1-X4 a bypass pair with Port 2 User defined – Port 2 User defined; forms DB-9 USB 2.0 a bypass pair with Port 1... -
Page 11: Lan/Wan Port Connectivity
Oracle Talari T860 Hardware Guide Ethernet ports on the rear panel have indicator lights for information on network activity and link status. Ethernet Link Status LED Ethernet Activity Status LED Off = 10 Mbps Flashing Amber = Network Activity Green = 100 Mbps... -
Page 12: Hardware Specifications
Oracle Talari T860 Hardware Guide Hardware Specifications The T860 APNA has the following are the hardware specifications. Specification Power 100-240V, 50-60 Hz, 3-1.5 Amp Max, 200W EIA RS-310 standards 1U Physical Dimensions Height 1.7” (43mm) Width 16.8” (426mm) Depth 14.0” (356mm) -
Page 13: Installing The Apn Appliance
Oracle Talari T860 Hardware Guide Installing the APN Appliance Rack Installation Prior to installing the system in a rack, adhere to the following rack installation guidelines: Ensure that there is adequate airflow in the rack. Improper installation or restricted airflow can damage the equipment. -
Page 14: Important Note About Cabling And Bypass Mode
Oracle Talari T860 Hardware Guide Important Note About Cabling and Bypass Mode When your APNA is operating in bypass mode (when powered off, for example), logic used by the appliance represents the functionality provided by a crossover cable. This may cause a loss of the link between the APNA and older network devices that do not support auto-mdix when straight-through cables are used to connect the LAN and WAN ports of the APNA. -
Page 15: Powering Up The Appliance
Oracle Talari T860 Hardware Guide Powering Up the Appliance Checklist for Power Up Power up the T860 APNA by completing the following steps: Determine the IP addresses for the Ethernet management interface. Confirm that the chassis is securely mounted. -
Page 16: Connecting To The Console Port
Oracle Talari T860 Hardware Guide Connecting to the Console Port The T860 APNA can be directly connected to a PC through a console port located on the rear panel. In order to serial into your appliance via the console port, on your terminal application you must select the specific serial line and use the following settings: ... - Page 17 Oracle Talari T860 Hardware Guide pairs are configured as “fail-to-wire” by default. Bypass mode is used when the APNA is not powered on, when the APNA is powered on but is not configured, or when the APNA is powered on and configured but the Talari Service is disabled.
