Understanding Chassis Components and Indicators
Fabric Interconnect F1-4 Front and Rear Panel Components

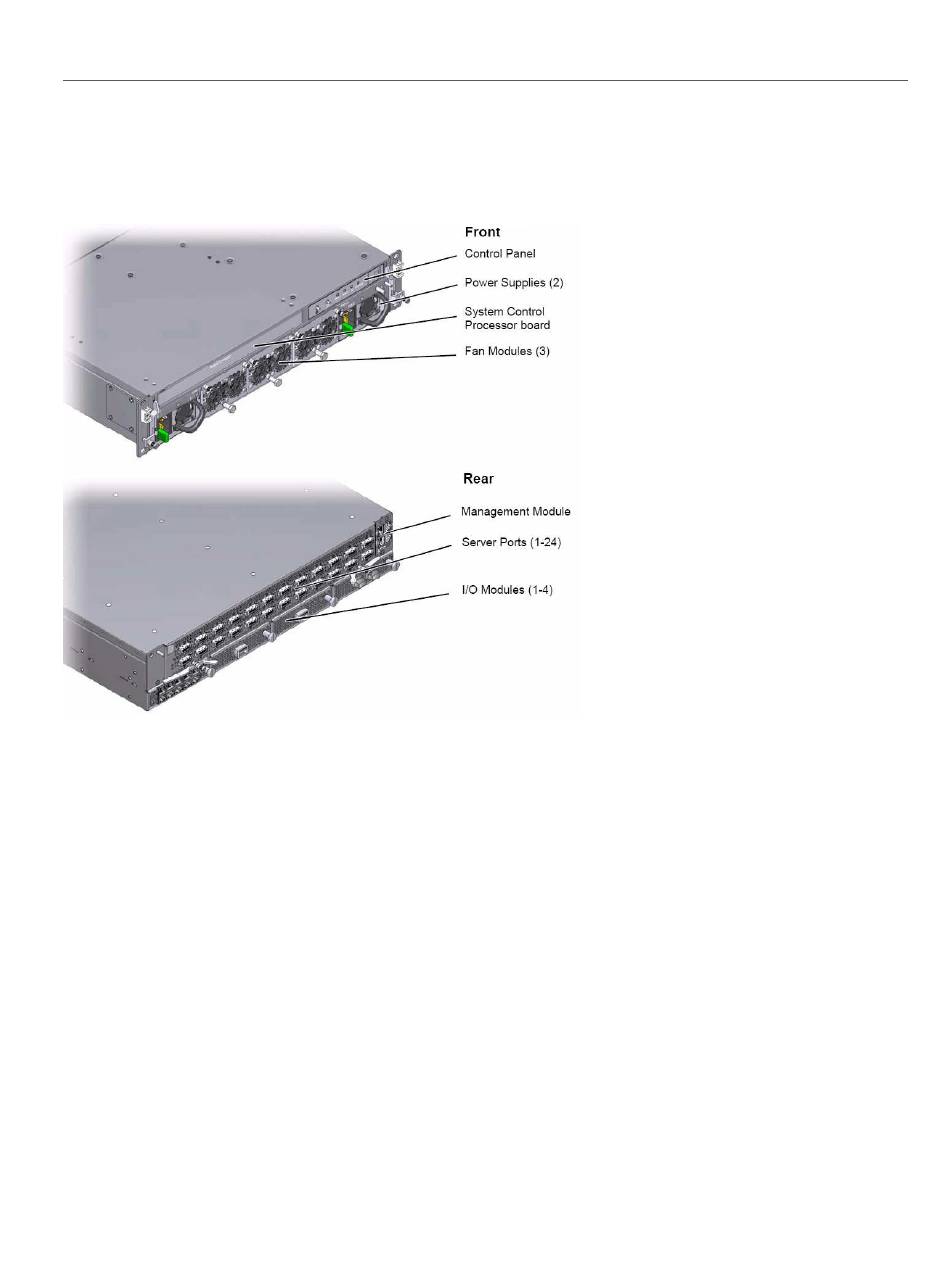

FIGURE 32
The Fabric Interconnect F1-4 can also support InfiniBand connections at Quad Data Rate
(QDR) speeds.
61 shows the Fabric Interconnect F1-4's rear panel with a QDR Fabric Board installed. The
QDR Fabric Board is easily identifiable by the different layout of its 20 physical ports.
The front of a QDR Fabric Interconnect F1-4 has the same standard equipment—for example,
power supplies, fans, and so on are the same between a QDR Fabric Interconnect F1-4 and
DDR Fabric Interconnect F1-4.
60 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Figure 33, "QDR Fabric Interconnect F1-4 Rear Panel Components," on page
