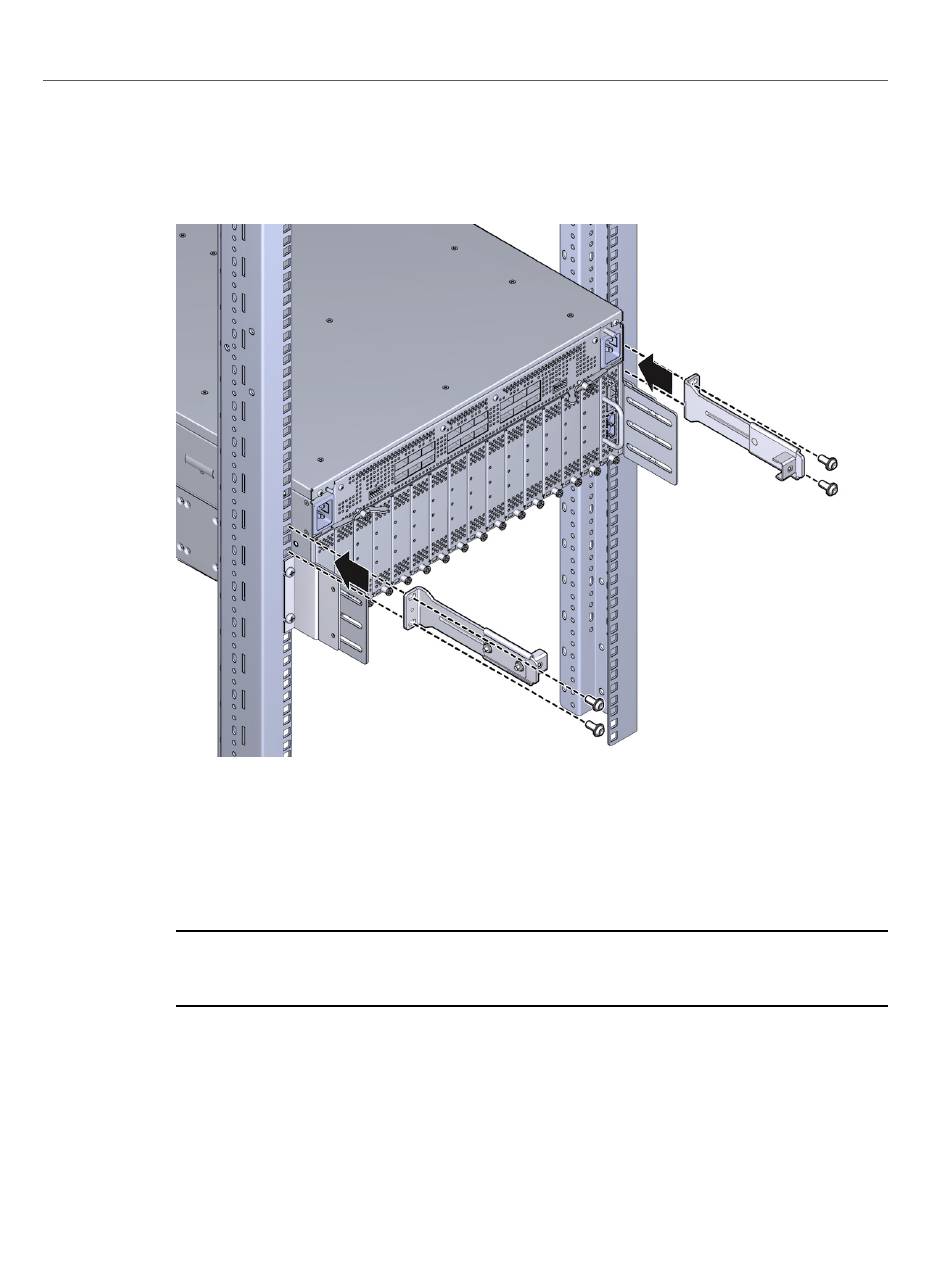

front brackets being installed
FIGURE 18
8.
Secure the assembly to the post with the correct screw type for the rack (10-32,
12-24, or M6) by inserting the screw through the slotted end of the CMA and into
the rack or cage nut.
If you are installing into a rack tapped for 12-24 screws, you must use the accompanying
Note -
#12 lock washers. For 12-24 racks, insert the screw into the lock washer before installing the
screw into the rack.
9.
Repeat
Step 7
to
10.
If needed, disassemble the CMA comb and plate by loosening the green captive
screws.
Step 8
for the other cable management extender and long rail.
Install the CMA
Installing the Fabric Interconnect
41
