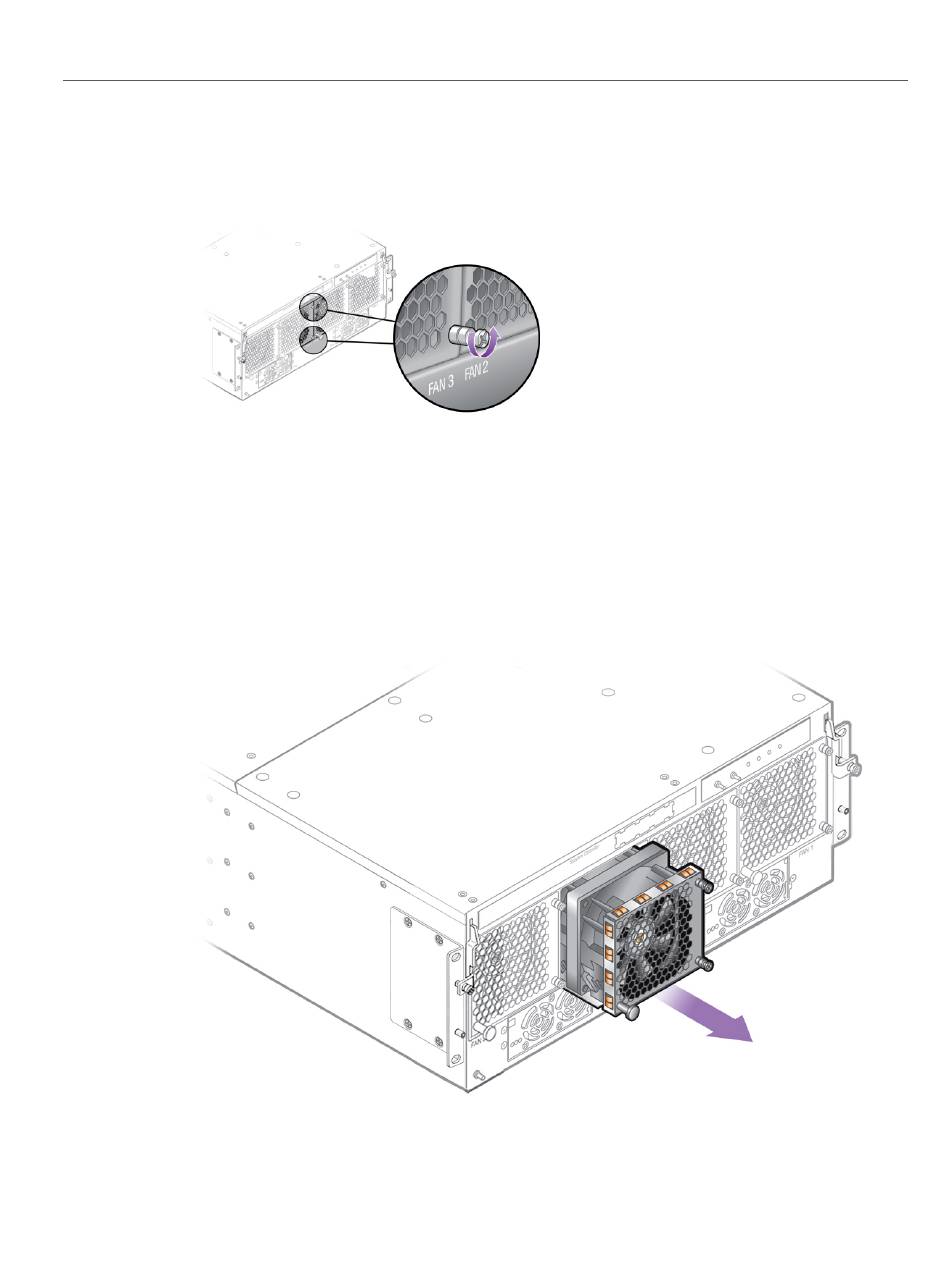

Remove Fabric Interconnect F1-15 Fan Modules
FIGURE 61
2. Grasp the handle and slide the fan module out of the chassis. See
"Removing a Fabric Interconnect F1-15 Fan Module," on page
FIGURE 62
104 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Releasing the Fabric Interconnect F1-15 Fan's Securing Screws
Removing a Fabric Interconnect F1-15 Fan Module
Figure 62,
104.
