Replace the Fabric Interconnect F1-4 DDR Fabric Board

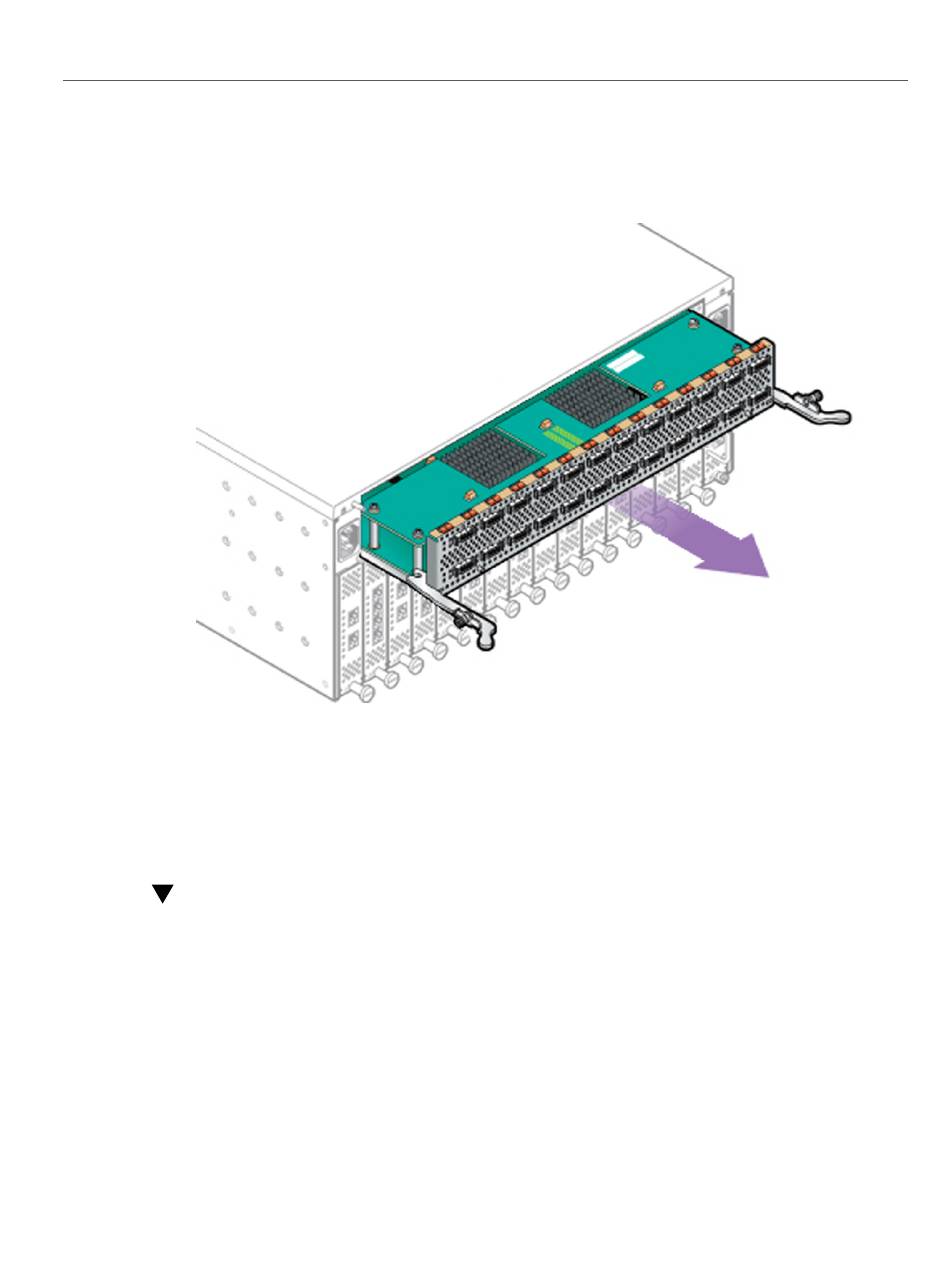

FIGURE 70
Installation is the reverse of this procedure.
Replace the Fabric Interconnect F1-4 DDR Fabric
Board
The Fabric Interconnect F1-4 Fabric Board is on the rear of the chassis, and connects to a
threaded standoff on the mounting bracket.
To replace the Fabric Interconnect F1-4 Fabric Board, you will need a #2 Phillips-head
screwdriver.
To remove the Fabric Interconnect F1-4 Fabric Board, follow this procedure:
1. Power down the Fabric Interconnect.
114 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Removing the Fabric Interconnect F1-15 Fabric Board
