10 GE Ethernet I/O Module LED Codes

Figure 38, "LED Codes — 10 Gigabit Ethernet Module," on page 65
Ethernet module LED codes. The 10 Gigabit Ethernet module is supported by all models of
Fabric Interconnect F1-15 and Fabric Interconnect F1-4.

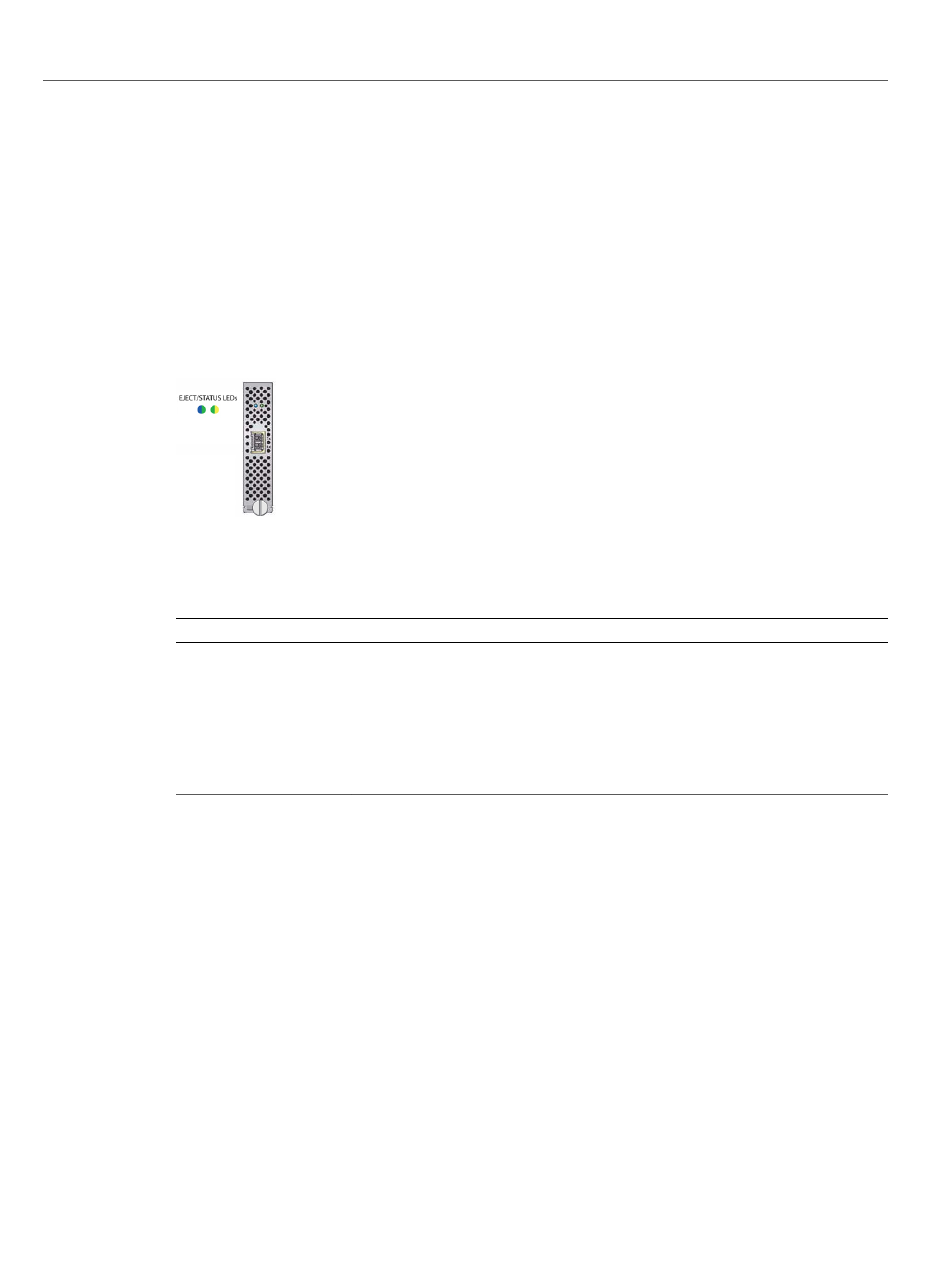

FIGURE 38 LED Codes — 10 Gigabit Ethernet Module
Eject
Blinking green
Off
Off
Off
Solid blue
Blinking blue

10-Port GE Ethernet I/O Module LED Codes

Figure 39, "LED Codes — 10-Port Gigabit Ethernet Module," on page 66
Port Gigabit Ethernet module LED codes. The 10-Port Gigabit Ethernet module is supported by
all models of Fabric Interconnect F1-15 and Fabric Interconnect F1-4.
Status Description
Blinking green I/O card is running diagnostics
Blinking green I/O card is booting
Solid green I/O card is up/running
Solid amber Fault detected
Solid green I/O card is down (power to card is off)
Solid green I/O card is shutting down
