Oracle Fabric Interconnect Series User Manual page 40

Install the CMA
FIGURE 17
5. Using a No. 2 Phillips screwdriver, tighten the two screws.
6. Repeat
Place the long rail to the mounting location (see
7.
Make sure that these rails are flush with the side of the Fabric Interconnect
chassis, with the flange pointing outward as shown in
being installed," on page
40 Oracle Fabric Interconnect Hardware User's Guide • July 2016

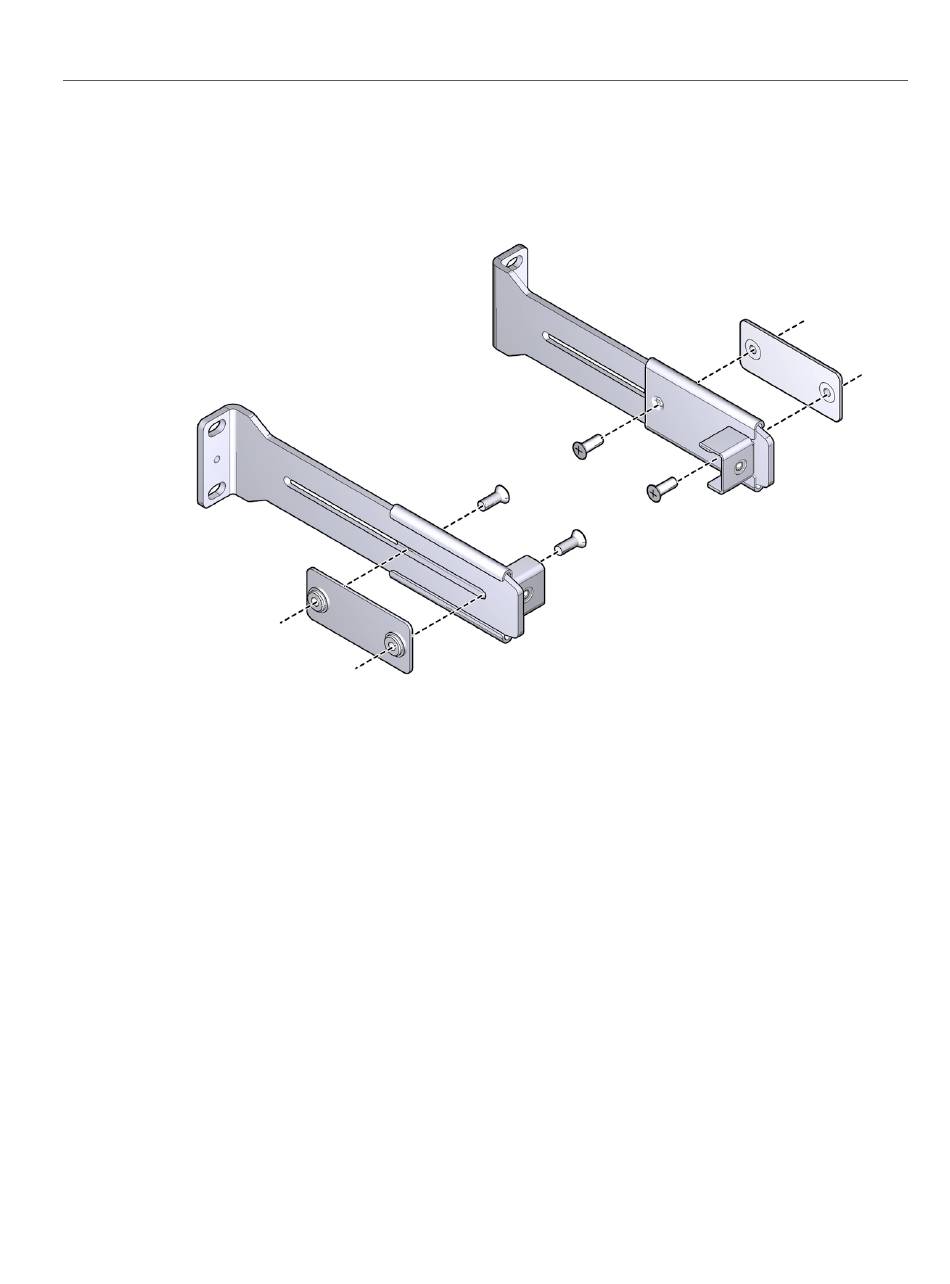

Bracket and Plate Sandwiching to the Rail
Step 2 through Step 5
41.
for the other cable management extender.
Step 1) on the post of the rack.
Figure 18, "front brackets
