Attach the Right Angle Bracket in a 27-Inch Sun/Oracle Rack
FIGURE 28
3.
Make sure that screw holes in the angle brackets lie flush against the slotted
edge of the side panels.
The slotted edge of the angle bracket will attach to the rack post.
Note -
the rack. While the screws are loose, you can slide the chassis along the slots in the mounting
brackets until the chassis is flush with the rack, or whatever depth is your preference.
4.
Insert the M6 pan-head rack screw through the slotted edge of the angle bracket,
and into the chassis.
The Sun/Oracle rack is untapped, so you should have already installed the M6 cage nuts into the
rack. For the Sun/Oracle rack, use only the M6 screws to attach the chassis to the rack.
5.
Tighten the pan-head rack screws to secure the chassis to the rack.
56
Oracle Fabric Interconnect Hardware User's Guide • July 2016

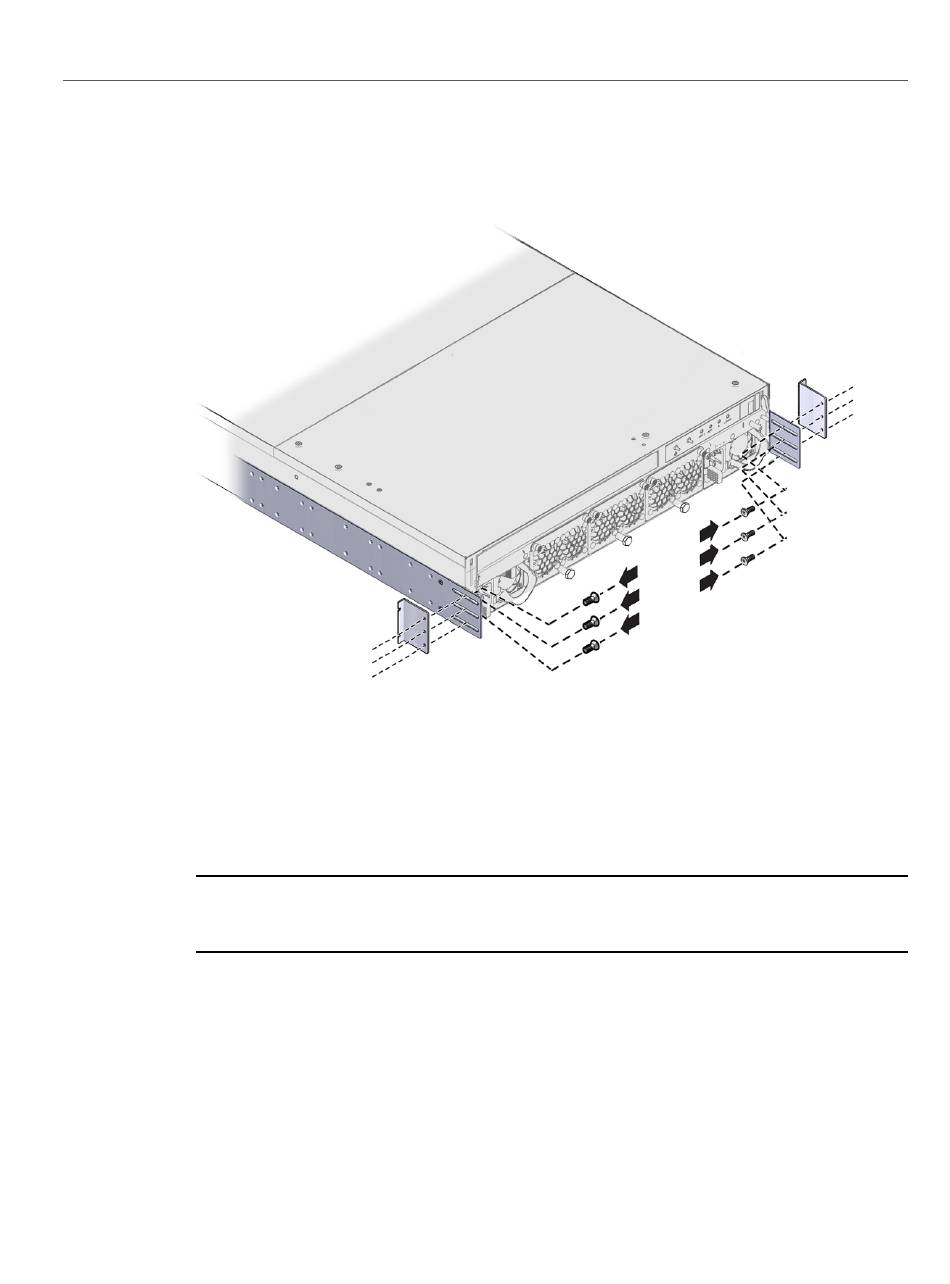

Aligning the Angle Brackets and Inserting the Screws
Leave the M3.5 screws loose enough to adjust the Oracle Fabric Interconnect's depth in
