Upgrade a Fabric Interconnect F1-15 to a QDR Fabric Board
Caution -
and insert into the chassis first. These edges must be kept horizontal. If you tip one side of the
Fabric Board, it possible to insert the Fabric Board incorrectly. Make sure you hold the Fabric
Board level while you insert it.

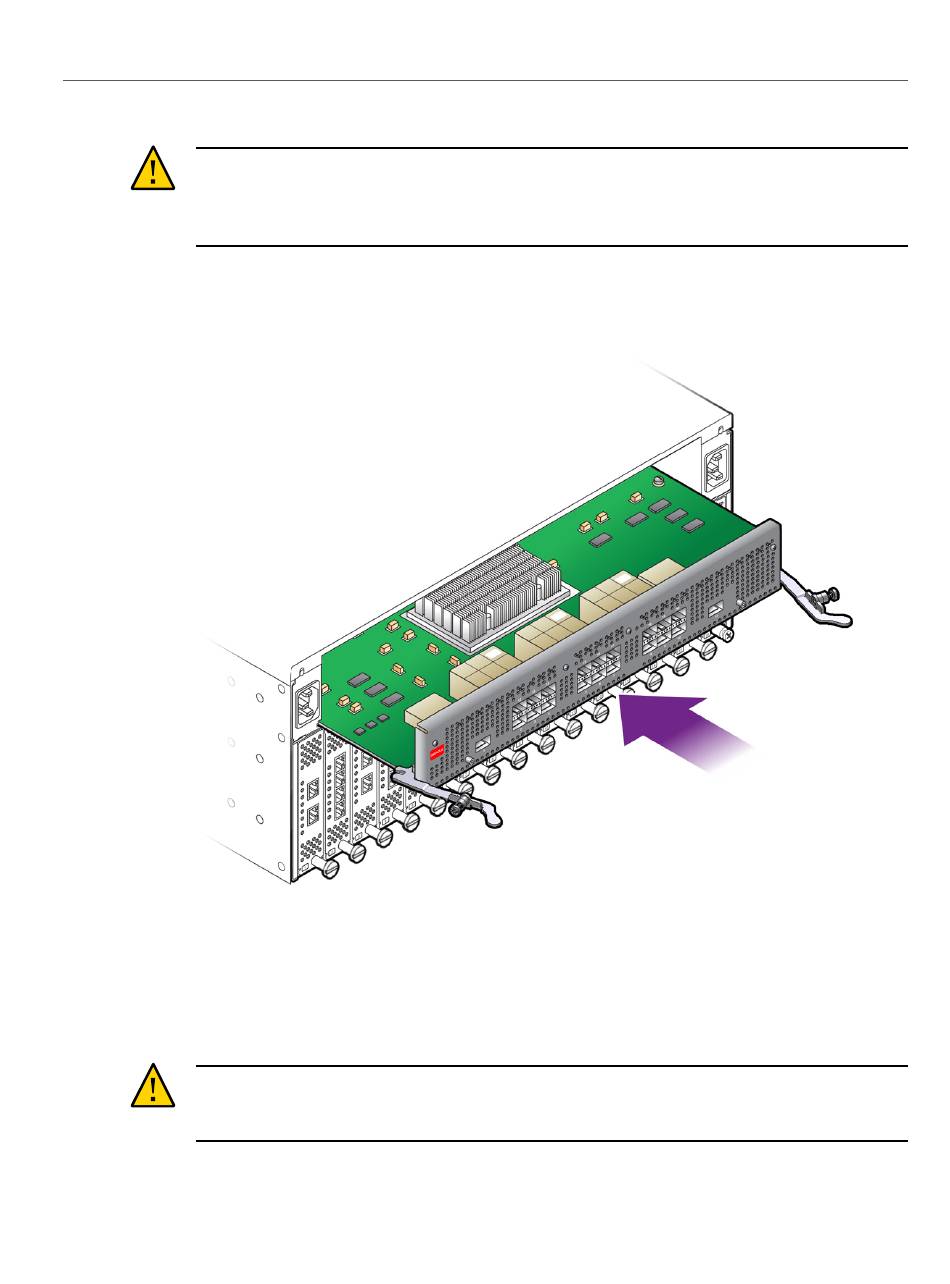

FIGURE 85
11.
When the Fabric Board is properly aligned, gently slide it in until you feel some
resistance, then check the notches at the end of the Fabric Board's handles to
make sure they are contacting the guides on the inside of the chassis.
Caution -
attempt to insert it again. Make sure that the leading edges are level, and you are keeping the
Fabric Board level while you slide it in.
132
Oracle Fabric Interconnect Hardware User's Guide • July 2016
Pay attention to the leading edges of the Fabric Board—the edges that will contact
Inserting the QDR Fabric Board into a Fabric Interconnect F1-15
Do not force the Fabric Board into place. If it does not slide in easily, remove it and
