Replace the Fabric Interconnect F1-15 QDR Fabric Board
Interconnect F1-15," on page 121 shows aligning and inserting the QDR Fabric
Board.
Caution - Pay attention to the leading edges of the Fabric Board—the edges that will contact
and insert into the chassis first. These edges must be kept horizontal. If you tip one side of the
Fabric Board, it possible to insert the Fabric Board incorrectly. Make sure you hold the Fabric
Board level while you insert it.

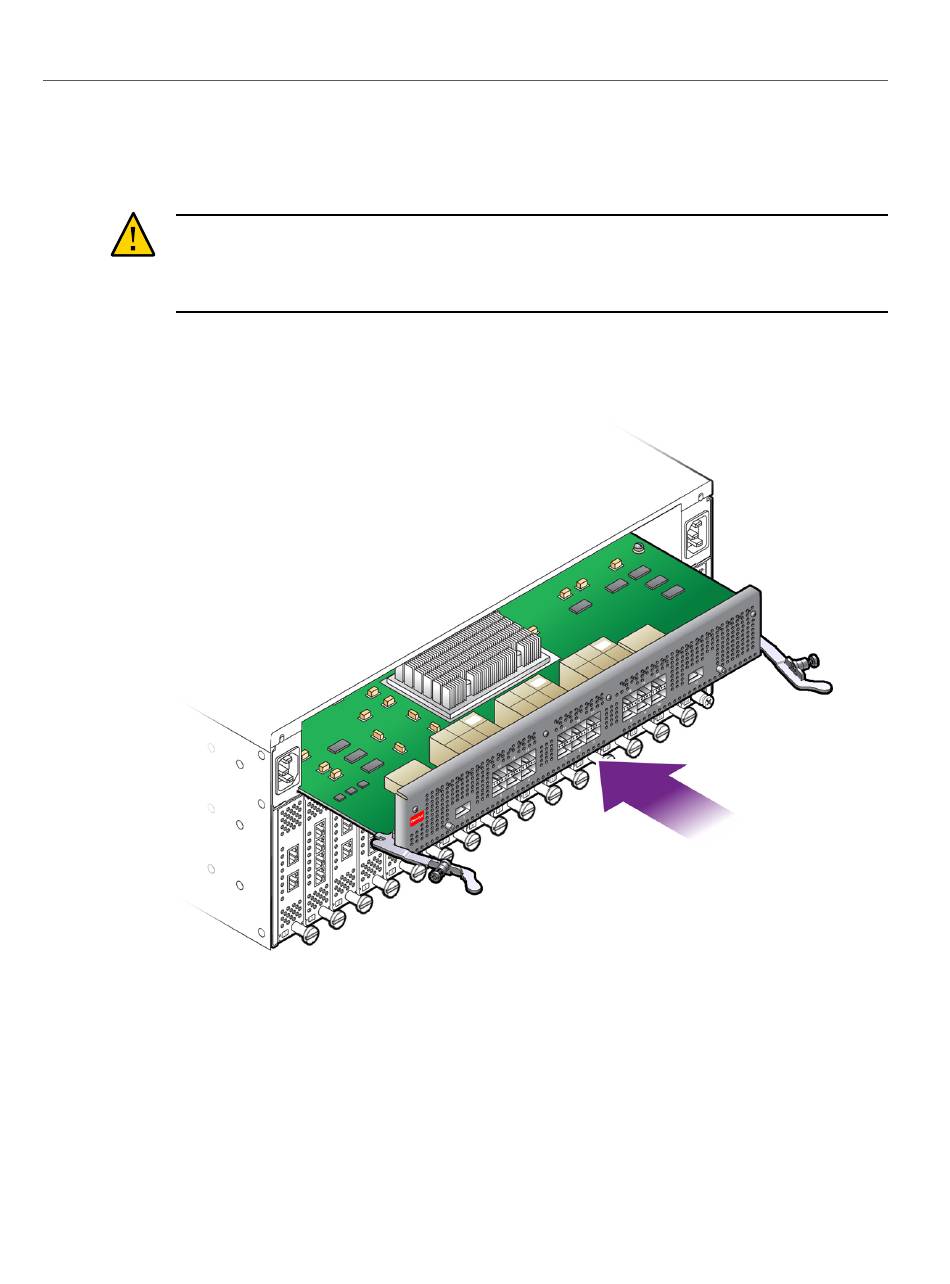

Inserting the QDR Fabric Board into a Fabric Interconnect F1-15
FIGURE 77
When the Fabric Board is properly aligned, gently slide it in until you feel some
9.
resistance, then check the notches at the end of the Fabric Board's handles to
make sure they are contacting the guides on the inside of the chassis.
