3. Choose the correct mounting screws for your rack. The Fabric Interconnect is
shipped with three complete sets of mounting screws (10-32, 12-24 and M6),
which support a wide variety of common equipment racks.
4. If you are using an untapped rack, for example a Sun/Oracle rack, insert the M6
cage nuts now if you have not already done so. Later in the procedure, you will
then use M6 screws to secure the chassis to the rack.
5. Mark each of the rack posts at the locations that will correspond to the bottom
of the Fabric Interconnect when it is installed. Verify that all four marks are level.
This mark also indicates the top of the rail kit.

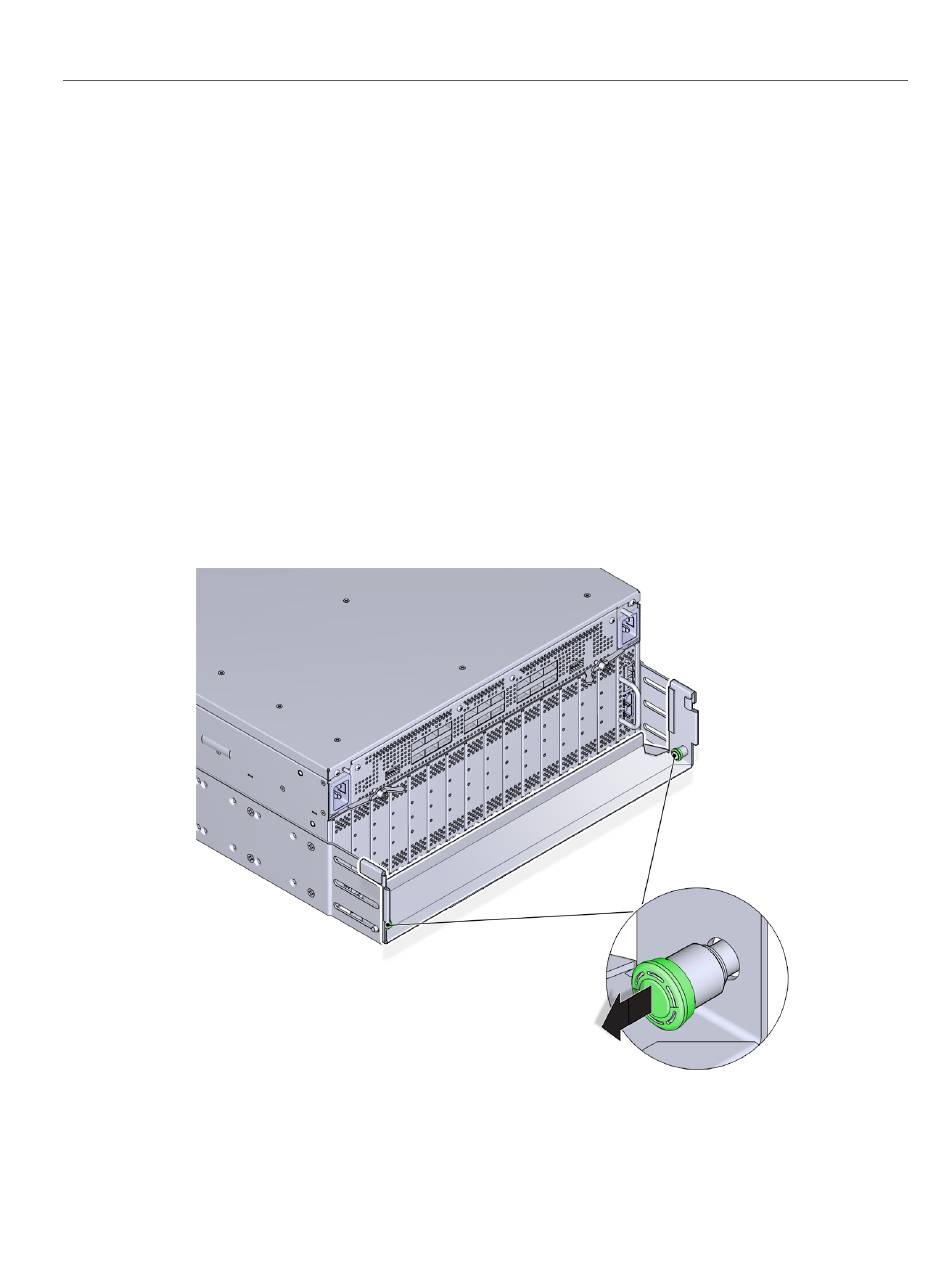

Inside the module retention bracket, locate the two spring-loaded pins as shown
6.
in Figure 5, "Module Retention Bracket's Compression Pins," on page
FIGURE 5
24 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Module Retention Bracket's Compression Pins
24.
