4-Port Ge Ethernet I/O Module Led Codes - Oracle Fabric Interconnect Series User Manual

Understanding Chassis Components and Indicators

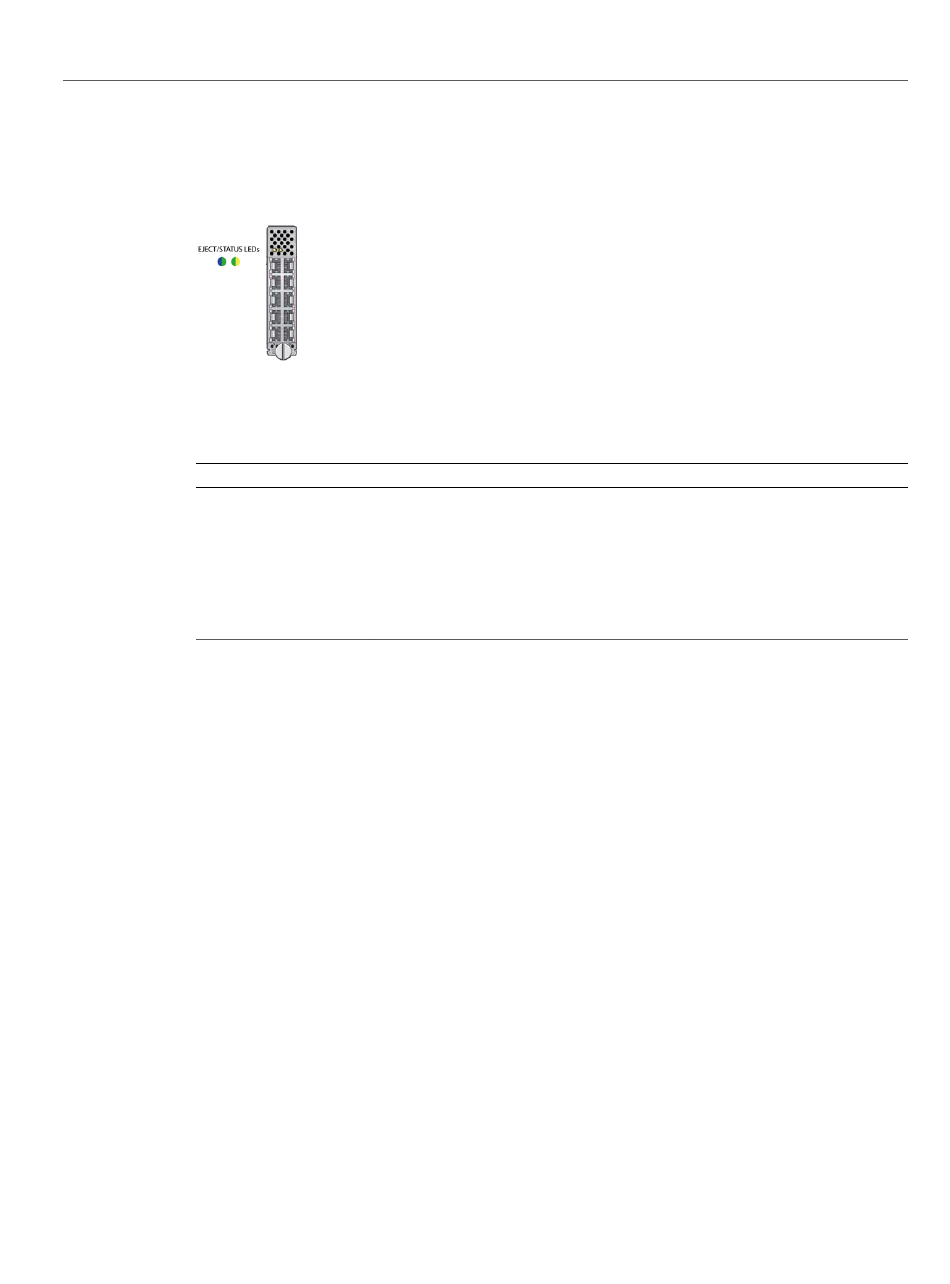

FIGURE 39
Eject
Blinking green
Off
Off
Off
Solid blue
Blinking blue

4-Port GE Ethernet I/O Module LED Codes

Status LEDs show information for the module and each port. The module has two LEDs that
show status and power status for the module:
the Module Status LED indicates the module's runtime or boot time status, which is affected
■
by whether the module is inserted or being ejected.
the Power Status LED indicates the condition of power to the module:
■
Each Gigabit Ethernet port has two LEDs that indicate the state of the port:
one LED indicates physical link. If the port is enabled and the physical link is up, the LED
■
glows steady green. If the port is enabled and the physical link is down, the LED blinks
green. If the port is disabled or not receiving power, the LED is dark.
one LED indicates traffic activity on the port. If the physical link is up and traffic is
■
detected, the LED blinks yellow whenever traffic exists on the link. If the link is up but has
no traffic activity, the LED glows steady yellow (not blinking). If the port is disabled, the
link is down, or the port is not receiving power, the LED is dark.
66 Oracle Fabric Interconnect Hardware User's Guide • July 2016
LED Codes — 10-Port Gigabit Ethernet Module
Status
Blinking green
Blinking green
Solid green
Solid amber
Solid green
Solid green
Description
I/O card is running diagnostics
I/O card is booting
I/O card is up/running
Fault detected
I/O card is down (power to card is off)
I/O card is shutting down
