Remove Fabric Interconnect F1-4 Power Supplies

2. Pull the locking lever out and down until the finger hole in the lever is accessible
(2). See
Chassis," on page
FIGURE 66
Use the finger hole in the locking lever to remove the power supply from the
3.
chassis (3).
Installation is the reverse of this procedure. The supply is fully reinserted in the chassis when
the locking lever rotates upward to its original, locked position. Make sure to properly tighten
the locking screw.
Remove Fabric Interconnect F1-4 Power Supplies
The Fabric Interconnect F1-4 power supply units (PSUs) are on the front of the chassis. The
Fabric Interconnect F1-4 power cords have their own cable management system which anchors
them to a pre-installed part that sits on the front mounting brackets. The Fabric Interconnect
F1-4 power cord management system consists of:
two (2) plastic anchors, one per side
■
108 Oracle Fabric Interconnect Hardware User's Guide • July 2016
Figure 66, "Removing the Fabric Interconnect F1-15 PSU from the
108.

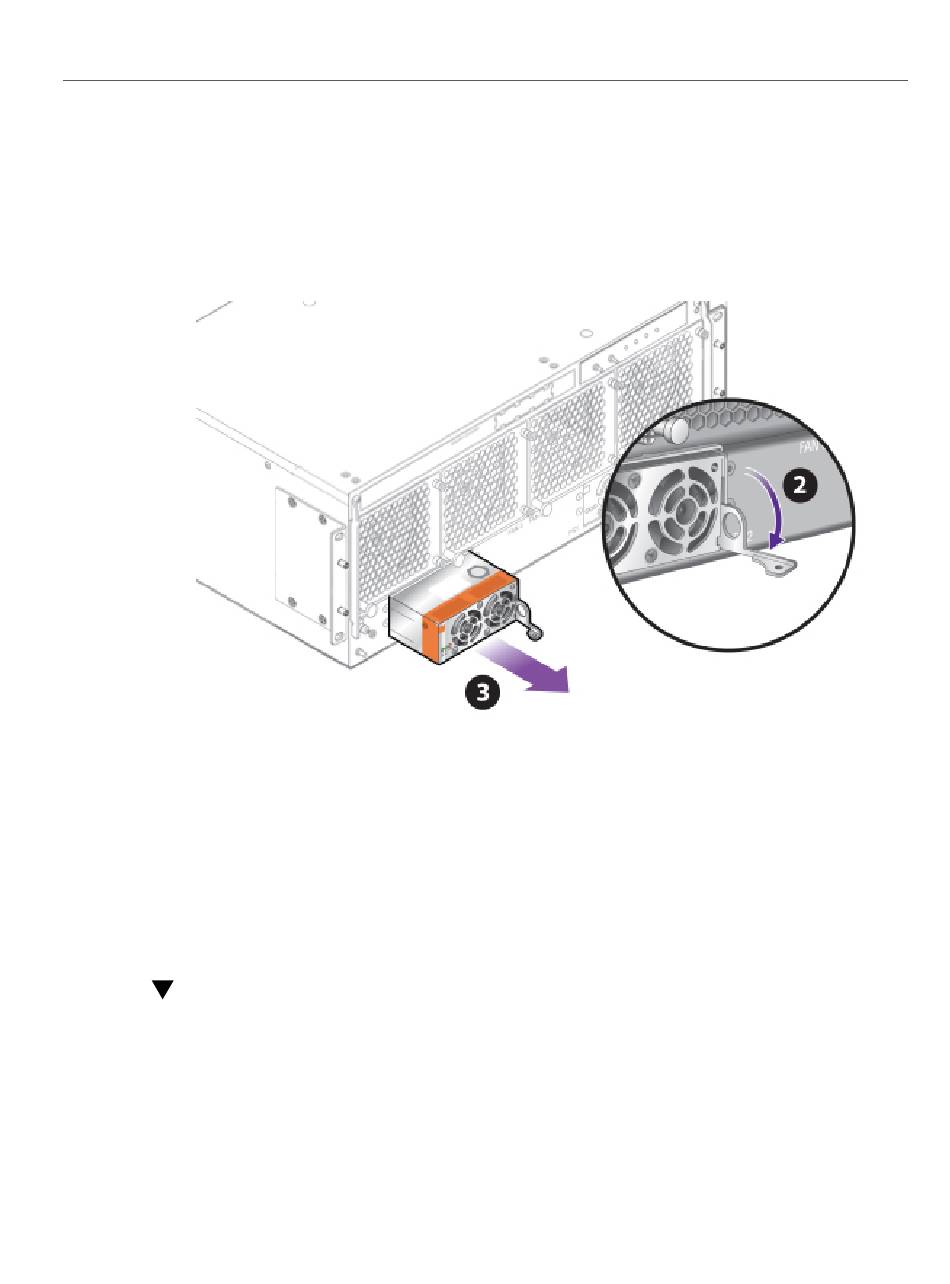

Removing the Fabric Interconnect F1-15 PSU from the Chassis
