The traffic activity LED (yellow LED) states are conditional on the presence of a

Note -

physical link. They are valid only if the Link LED is solid green, which indicates the port is

enabled and link is present. If the port is not enabled and link is not present, traffic activity

cannot occur, and as a result, the traffic activity LED will be dark.

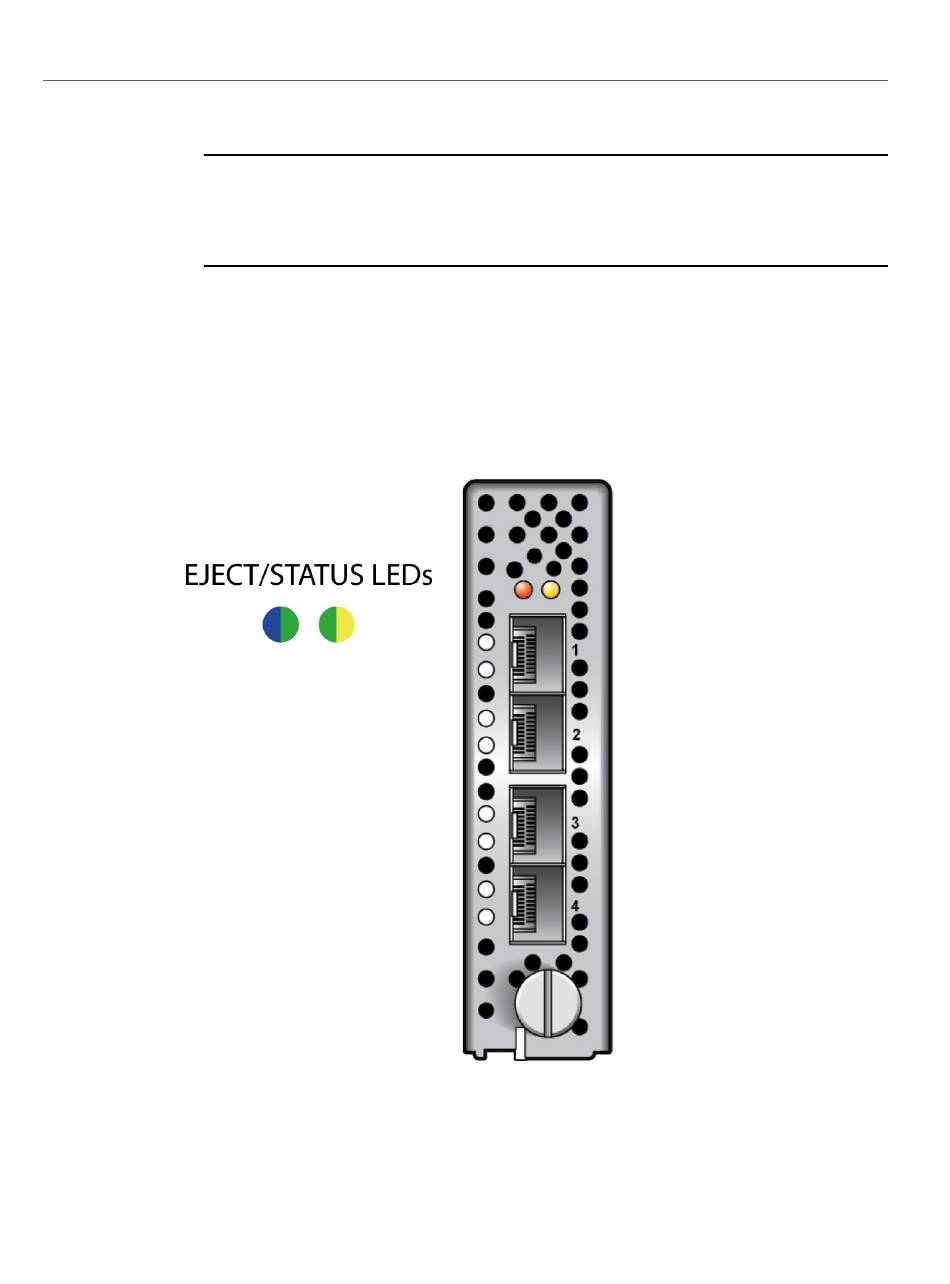

Figure 40, "LED Codes 4-Port 10 Gigabit Ethernet Module," on page 67

codes for the 4-Port 10 GE Modules. The 10-Port Gigabit Ethernet module is supported by all

models of Fabric Interconnect F1-15 and Fabric Interconnect F1-4.

LED Codes 4-Port 10 Gigabit Ethernet Module

FIGURE 40

Understanding Chassis Components and Indicators

shows the LED
