Connect Cables for a Fabric-connected VG8
Figure 60
96 EMC VNX VG2/VG8 Gateway Configuration Setup Guide

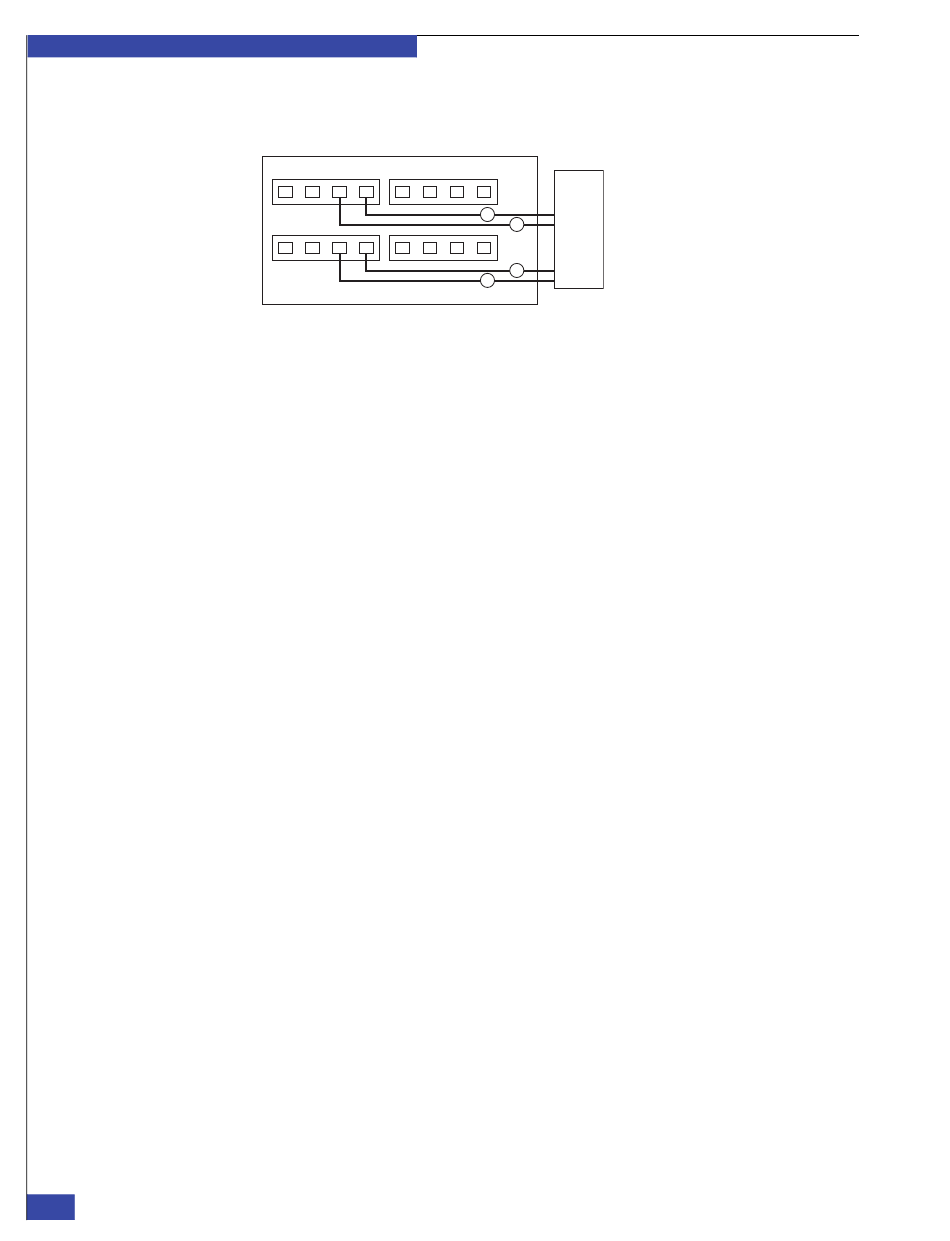

If you are using one switch to connect a VNX7500 array, connect the cables as shown
in the example in Figure 60.
2 3
2 3
VNX7500 connected to a single switch (example)
The array SAN ports 2 and 3 are used in this example, but you can use any two ports
on each SP:
1. Connect SP A slot 0, port 2 to the switch.
2. Connect SP B slot 0, port 2 to the switch.
3. Connect SP A slot 0, port 3 to the switch.
4. Connect SP B slot 0, port 3 to the switch.
5. Record the SP ports you connected to the switch ports by using the
cabling worksheet" on page
Switch
SP B
4
2
SP A
3
1
CNS-000895
273.
"FC/FCoE
