Cable Connections from Fibre Channel Switch to Storage

Connecting a CLARiiON CX700 array

Figure 161
254 EMC VNX VG2/VG8 Gateway Configuration Setup Guide
Each CLARiiON CX700 SP has four SAN ports. If all of the SAN ports on the array
are already connected to the fabric, you need not change these connections. If the
array has two available ports on each SP, the recommended practice is to cable these
ports to the switches and dedicate them to the VNX gateway system.
If you are using two switches to connect a CLARiiON CX700 array, connect the cables
(Figure 161):
Switch B
SP B
2
3 2 1 0
SP A
3
0 1 2 3

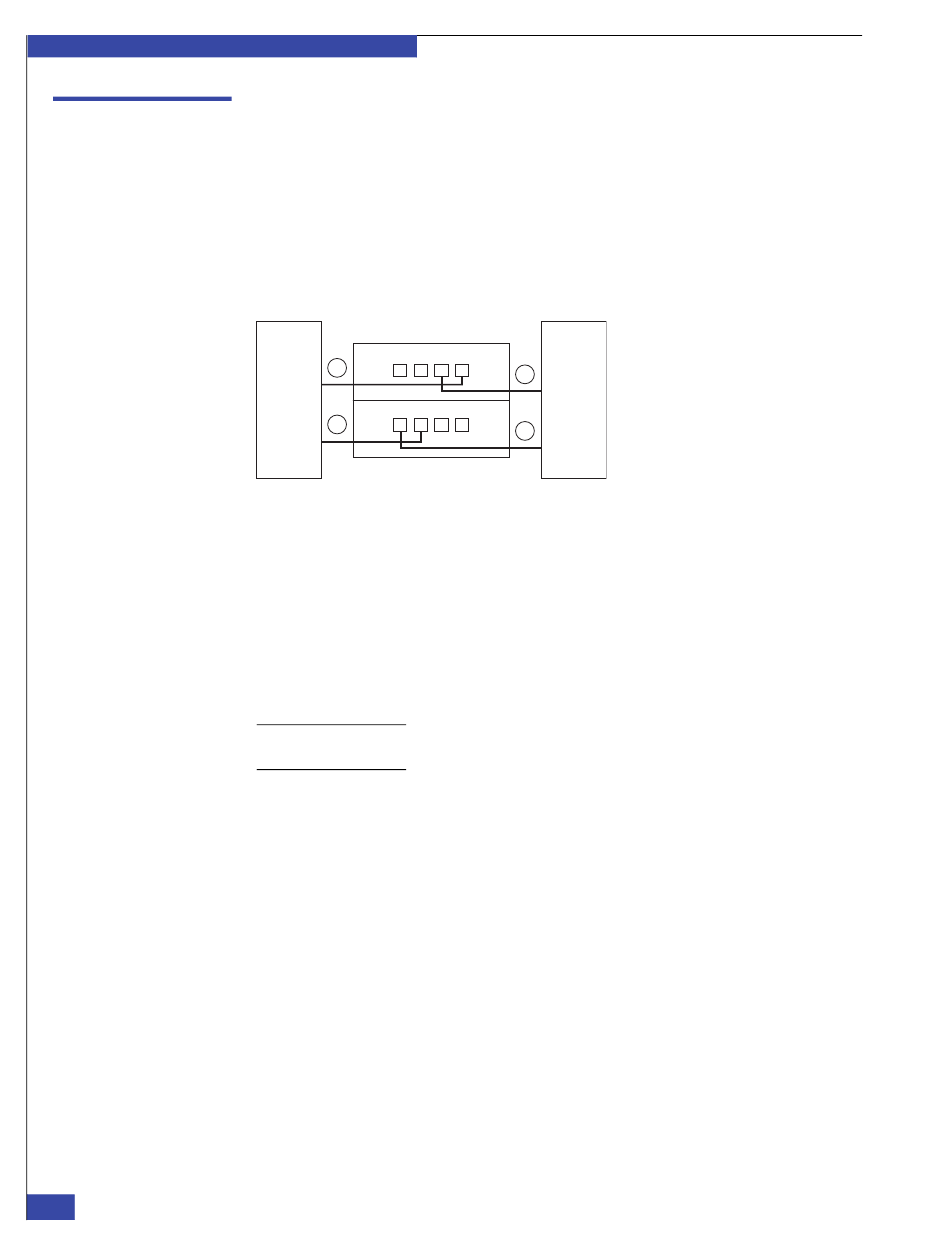

CLARiiON CX700 connected to two switches for high availability
1. Connect SP A port 0 to switch A.
2. Connect SP B port 0 to switch B.
3. Connect SP A port 1 to switch B.
4. Connect SP B port 1 to switch A.
5. Record which SP ports you connected to which switch ports using the
cabling worksheet" on page
Note: If you did not use the default SP and FC switch cabling, you must manually select the FC
switch ports the array will use in
Switch A
4
1
CIP-000746
273.
"Step 2: Install latest File OE on CS 0" on page
"FC/FCoE
139.
