EMC CONFIDENTIAL
Connect Cables for a Direct-connected VG2
Step 3: Optional tape backup device cables
Figure 49
84
EMC VNX VG2/VG8 Gateway Configuration Setup Guide
The VNX gateway can connect to tape backup devices by using optical cables, either
directly or through a Fibre Channel switch.
Each blade has two ports that can be used for tape devices: ports 2 and 3 in the FC
I/O module in slot 0.
These ports sense the:
Speed of the device they connect to and automatically adjust to the appropriate
◆
speed (depending on the type of I/O module installed).
Topology of the Fibre Channel network they are connected to and automatically
◆
configure for arbitrated loop or switched fabric as needed.
To connect the FC I/O module:
1. Connect one end of the appropriate cable to the FC I/O module in blade 2 (see
example in
Figure
49).

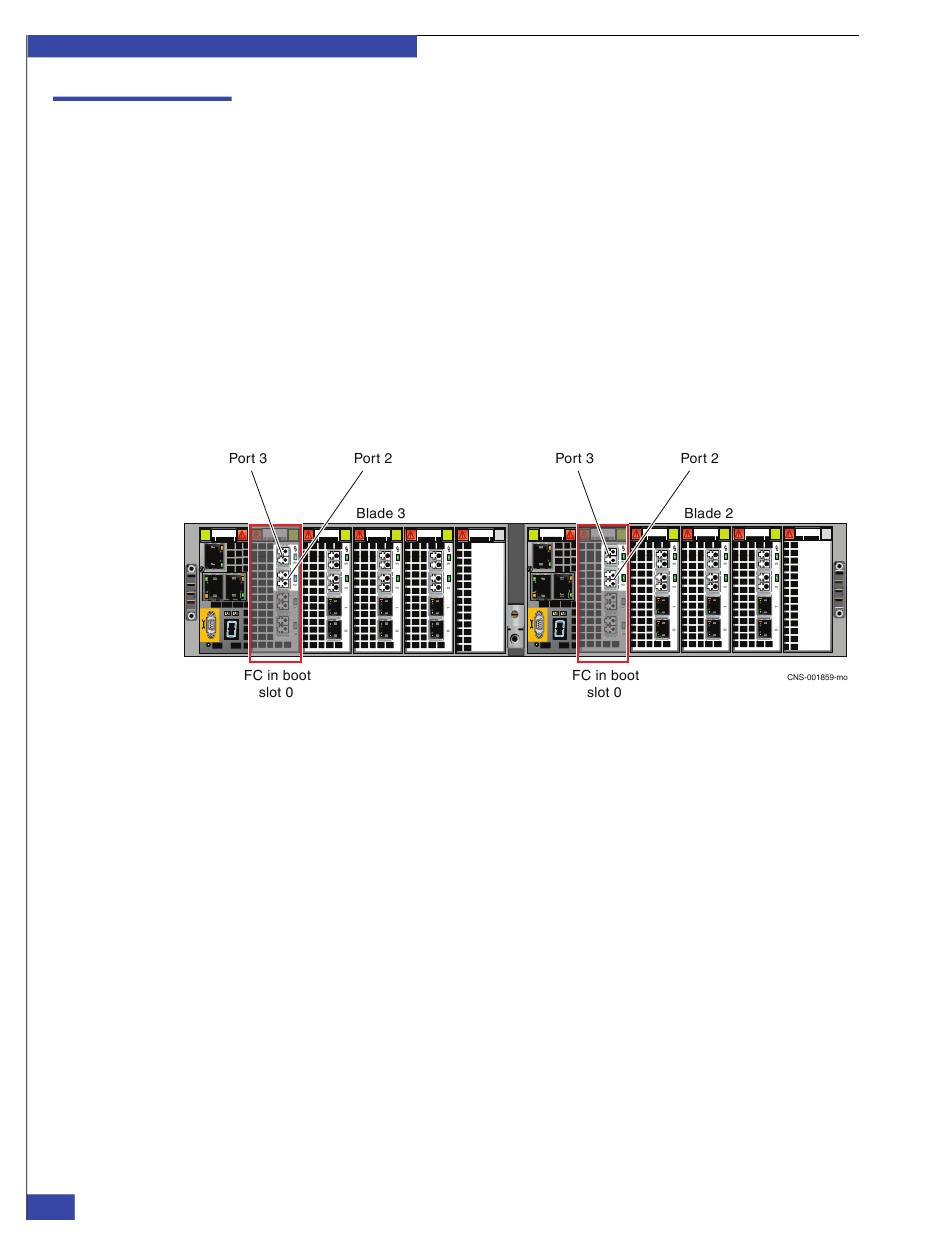

Tape device ports on FC (example)
2. Connect the other end of the cable to an FC switch, or directly to a tape device.
3. Optionally, connect the remaining port to a switch or tape device.
4. Repeat steps
1
through
3
for the other blade as needed.
