Direct- Or Fabric-Connected - EMC VNX VG2 Setup Manual

Direct- or
fabric-connected
Direct-connected
system
Figure 20
The setup procedures for the VG2/VG8 provide steps for direct-connected or
fabric-connected systems. The VG2 can be direct- or fabric-connected; the VG8 is
usually fabric-connected, but direct-connected VG8 systems are also supported.
Your customer may have ordered a VNX or Symmetrix array with the VNX gateway,
or your customer may already have the array. If your customer ordered the optional
cabinet, the components are installed in the cabinet at the EMC factory.
The installation of the array is outside the scope of this guide. Refer to the VNX or
Symmetrix installation documentation.
A working system requires a fully operational VNX array (for example, the
VNX5300) and a cabinet.

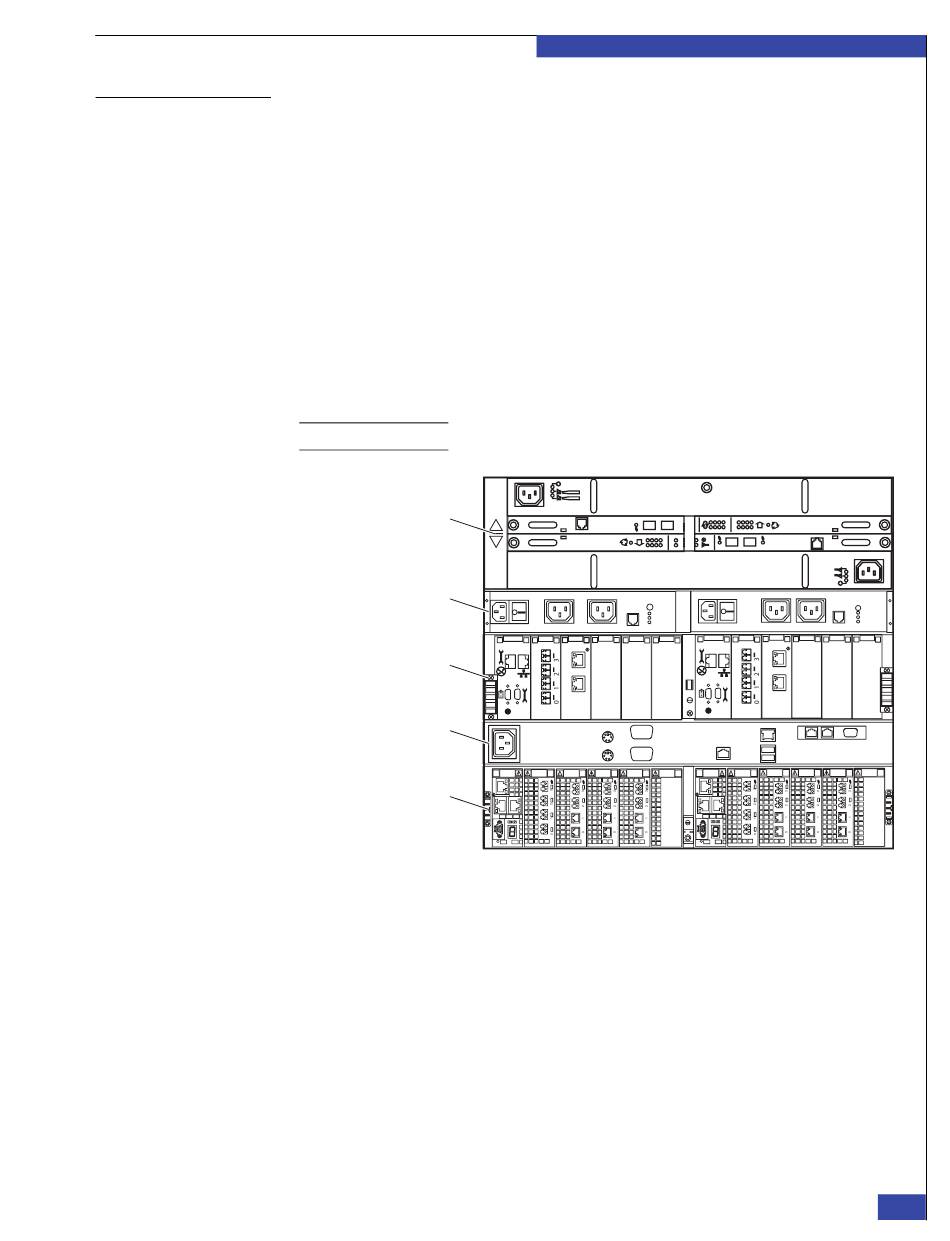

Figure 20 shows an example of a VNX VG2 gateway (two blades and one Control
Station) with a CX4-120 storage array. Because components can have different depths,
you should stack them within the cabinet to facilitate easy access to the rear.
Note: FCoE is not supported in a direct-connected system.
Disk-array enclosure
Standby power supply
CX4-120 storage
processor
Control Station
Blade enclosure
Example of VNX VG2 gateway with CX4-120 storage array
