Connect Cables for a Fabric-connected VG2

Step 5: Private LAN cables

Management
Figure 41
!
74 EMC VNX VG2/VG8 Gateway Configuration Setup Guide
The private (internal) LAN cables connect the Control Station to the blades through
the blade enclosure's management modules. These cables and switches make up a
private network that does not connect to any external network.
The blade enclosure has two management modules, which are redundant. If module
A fails, module B assumes control of the private network. The Control Stations
communicate to the blades through the management modules.

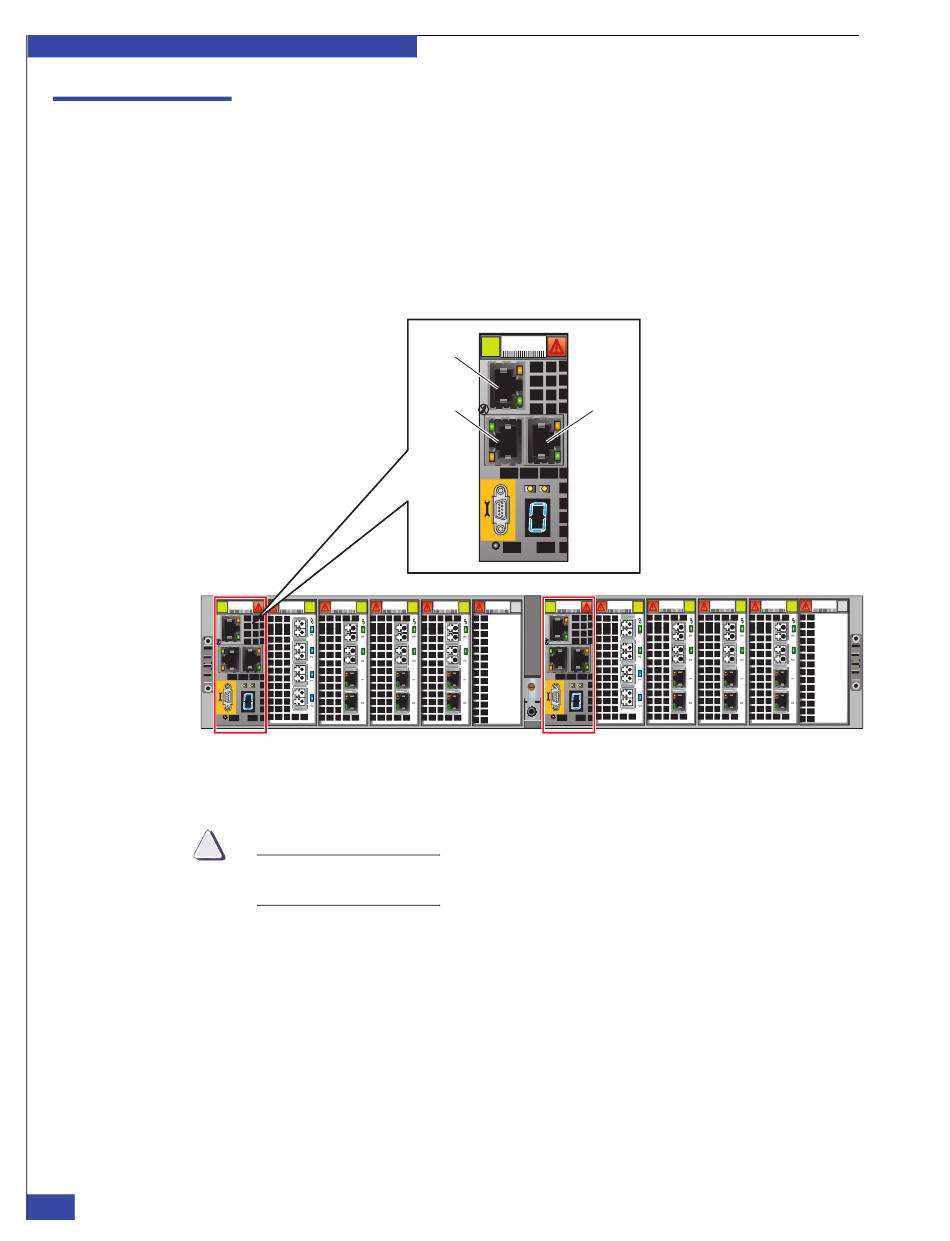

Figure 41 shows VG2 management module with the private LAN ports 0, 1, and 2.
module B
VG2 management modules
CAUTION
Do not connect any other cables to the management modules, such as public LAN
cables, or array management port cables.
To connect the private LAN cables:
1. Connect an RJ-45 Ethernet cable from port 1 on management module A to the
port labeled A on CS 0 (cable 1 in
2. Connect an RJ-45 Ethernet cable from port 1 on management module B to the port
labeled B on CS 0 (cable 2 in
3. For dual Control Station systems, connect an RJ-45 Ethernet cable from port 2 on
management module A to the port labeled A on CS 1 (cable 3 in
4. For dual Control Station systems, connect an RJ-45 Ethernet cable from port 2 on
management module B to the port labeled B on CS 1 (cable 4 in
Port 2
Port 0 Port 1
Management
module A
Figure 42).
Figure 42).
CNS-001679
Figure 42).
Figure 42).
