NAS Install Options

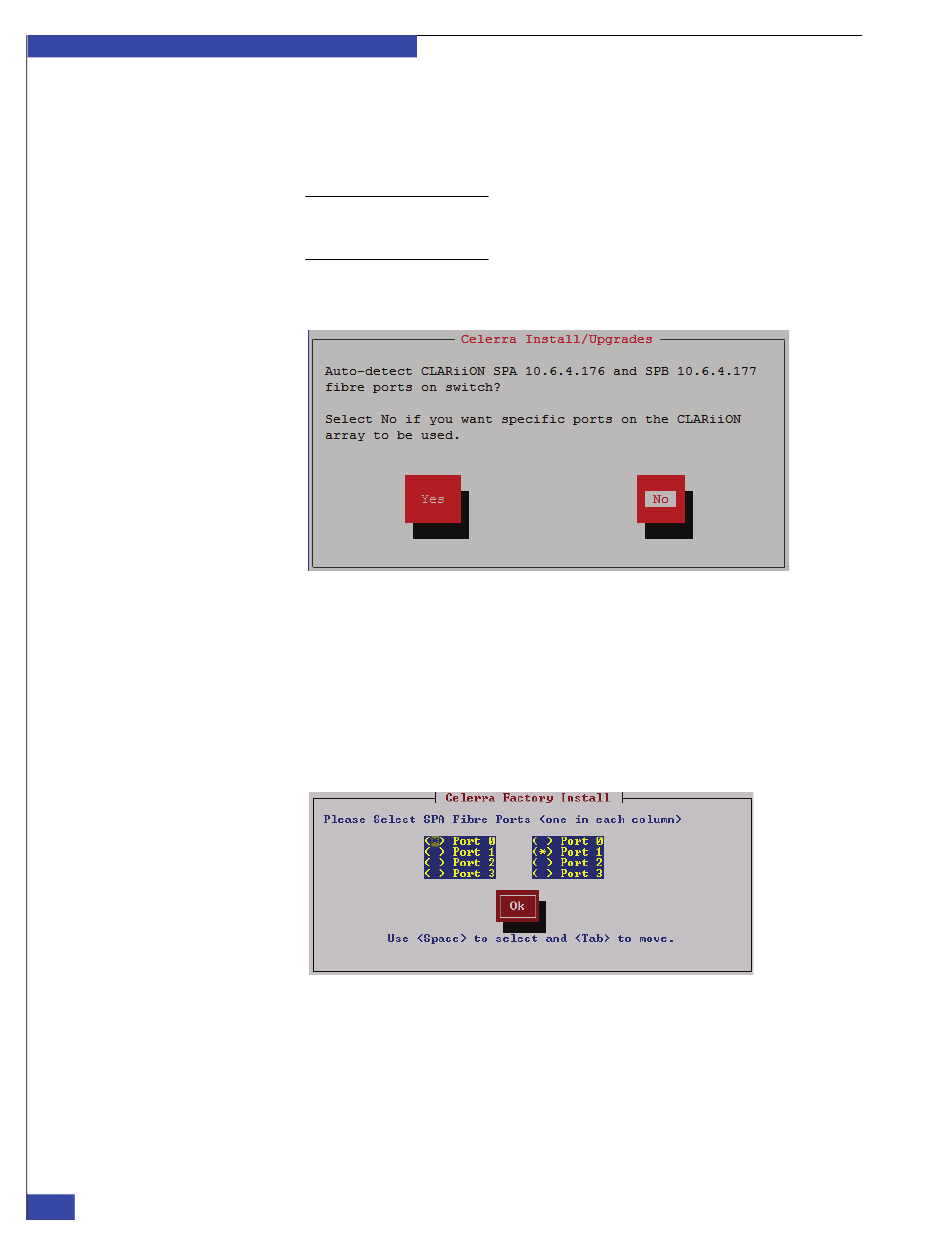

Figure 130
Figure 131
214 EMC VNX VG2/VG8 Gateway Configuration Setup Guide
30. If the VNX array has more than two frontend ports on each SP, the system prompts
you about automatically detecting the VNX fibre ports
a. To automatically detect which ports the VNX backend is using on the FC
switch, select Yes and press Enter. Then go to
Note: If you did not use the default SP and FC switch cabling in
Channel cables" on page 58
FC switch ports the VNX array will use.
b. To manually select which FC switch ports the VNX array will use, tab to No
and press Enter.
Auto-detect VNX Fibre Channel ports on switch screen
31. The dialog box in Figure 131
a. Use the Spacebar and Tab to select one port in the left column going into the
switch from the frontend.
b. Use the Spacebar and Tab to select one port in the right column going out of
the switch into the backend.
c. Tab to Ok and press Enter.
Manually configure VNX Fibre Channel ports on switch screen
step 32 on page 215
for VG2 or page 90 for VG8, you must manually select the
appears. Do the following:
(Figure 130):
.
"Step 1: Blade Fibre
