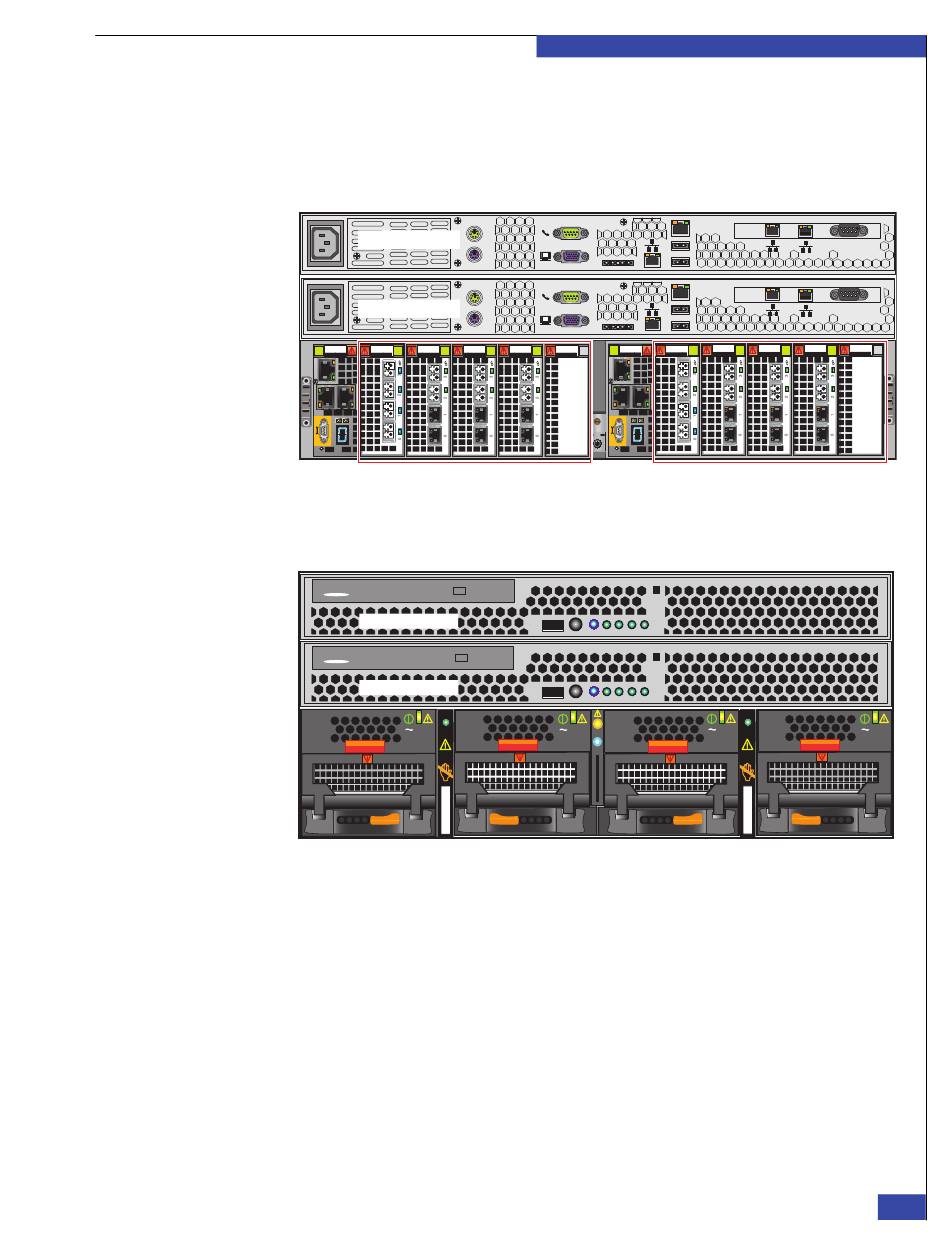

Figure 6 shows the rear view of an VG2 blade enclosure with two blades and two
Control Stations. The right blade in the enclosure has the lower blade number. For
example, in the blade enclosure, blade 2 is on the right and blade 3 is on the left. Each
blade can have from one to four I/O modules (the last slot contains an I/O filler
panel). A mix of different I/O module types is possible.
Control Station 1
Control Station 0
Figure 6 Example of VNX VG2 system—two blades and two CSs (rear)
Figure 7 shows the front view of the same system shown in
DVD
Control Station 1
DVD
Control Station 0
Example of VNX VG2 system—two blades and two CSs (front)
Figure 7
MODEM plug
VGA socket
MODEM plug
VGA socket
Blade 3
AC AC
EMC CONFIDENTIAL
Before Installing
B MGMT
CS
A
B MGMT
CS
A
Blade 2
Figure 6.
AC
Step 1: Check components
Serial
console
Serial
console
CNS-001641
AC
CNS-001655
