4. If required, verify that an RJ-45 Ethernet cable connects from port 2 on
management module B in blade enclosure 0 (blades 2 and 3) to the port labeled B
on CS 1. This is cable #4 in
5. Verify that an RJ-45 Ethernet cable connects from port 0 on management
module B in blade enclosure 0 (blades 2 and 3) to port 1 on management
module B in blade enclosure 1 (blades 4 and 5). This is cable #5 in
page 122.
6. Verify that an RJ-45 Ethernet cable connects from port 0 on management
module A in blade enclosure 0 (blades 2 and 3) to port 1 on management
module A in blade enclosure 1 (blades 4 and 5). This is cable #6 in
page 122.
7. If required, verify that an RJ-45 Ethernet cable connects from port 0 on
management module B in blade enclosure 1 (blades 4 and 5) to port 1 on
management module B in blade enclosure 2 (blades 6 and 7). This is cable #7 in
Figure 86 on page
8. If required, verify that an RJ-45 Ethernet cable connects from port 0 on
management module A in blade enclosure 1 (blades 4 and 5) to port 1 on
management module A in blade enclosure 2 (blades 6 and 7). This is cable #8 in
Figure 86 on page
9. If required, verify that an RJ-45 Ethernet cable connects from port 0 on
management module B in blade enclosure 2 (blades 6 and 7) to port 1 on
management module B in blade enclosure 3 (blades 8 and 9). This is cable #9 in
Figure 86 on page
10. If required, verify that an RJ-45 Ethernet cable connects from port 0 on
management module A in blade enclosure 2 (blades 6 and 7) to port 1 on
management module A in blade enclosure 3 (blades 8 and 9). This is cable #10 in
Figure 86 on page

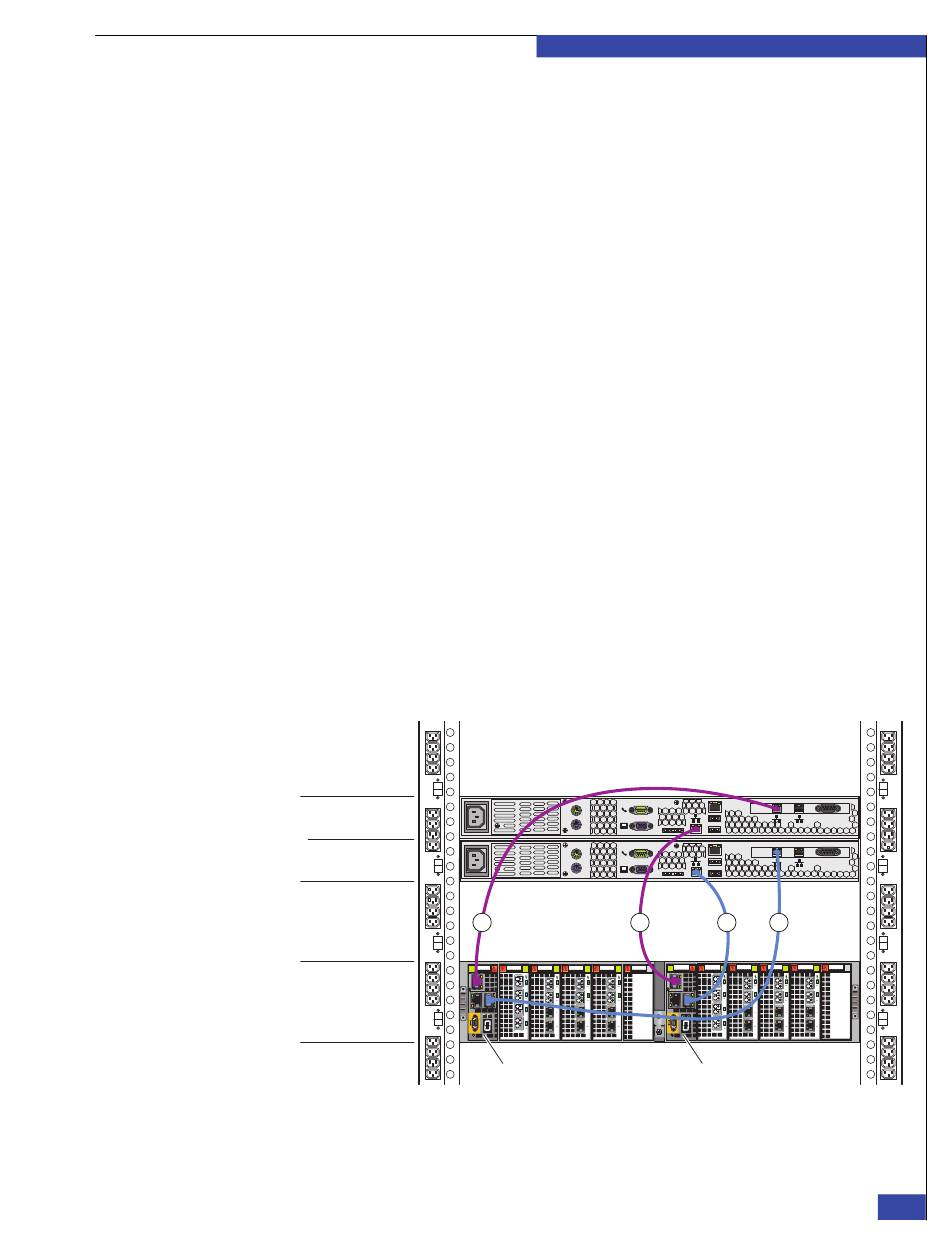

Control Station 1
Control Station 0
Blade enclosure 0
Private LAN cables to CS 0 and CS 1
Figure 85
Figure 85 on page
122.
122.
122.
122.
B
4
Management
module B
EMC CONFIDENTIAL
Connect Cables for a Direct-connected VG8
121.
Figure 86 on
Figure 86 on
B MGMT
MODEM plug
CS
VGA socket
A
B MGMT
MODEM plug
CS
VGA socket
A
3 1 2
Management
module A
Step 4: Private LAN cables
A
Serial
console
Serial
console
CNS-001691
