Cable Connections from Fibre Channel Switch to Storage

Connecting a CLARiiON CX3-10 array

The CLARiiON CX3-10 array requires two SAN ports from each SP to be connected to
the switch or switches. All traffic to the array travels over these connections.
If you are using two switches to connect a CLARiiON CX3-10 array, connect the
cables as shown in Figure 163:
Switch B Switch A
SP B SP A
2 Fibre 3 Fibre 2 Fibre 3 Fibre
3
1
2 4
CIP-001204

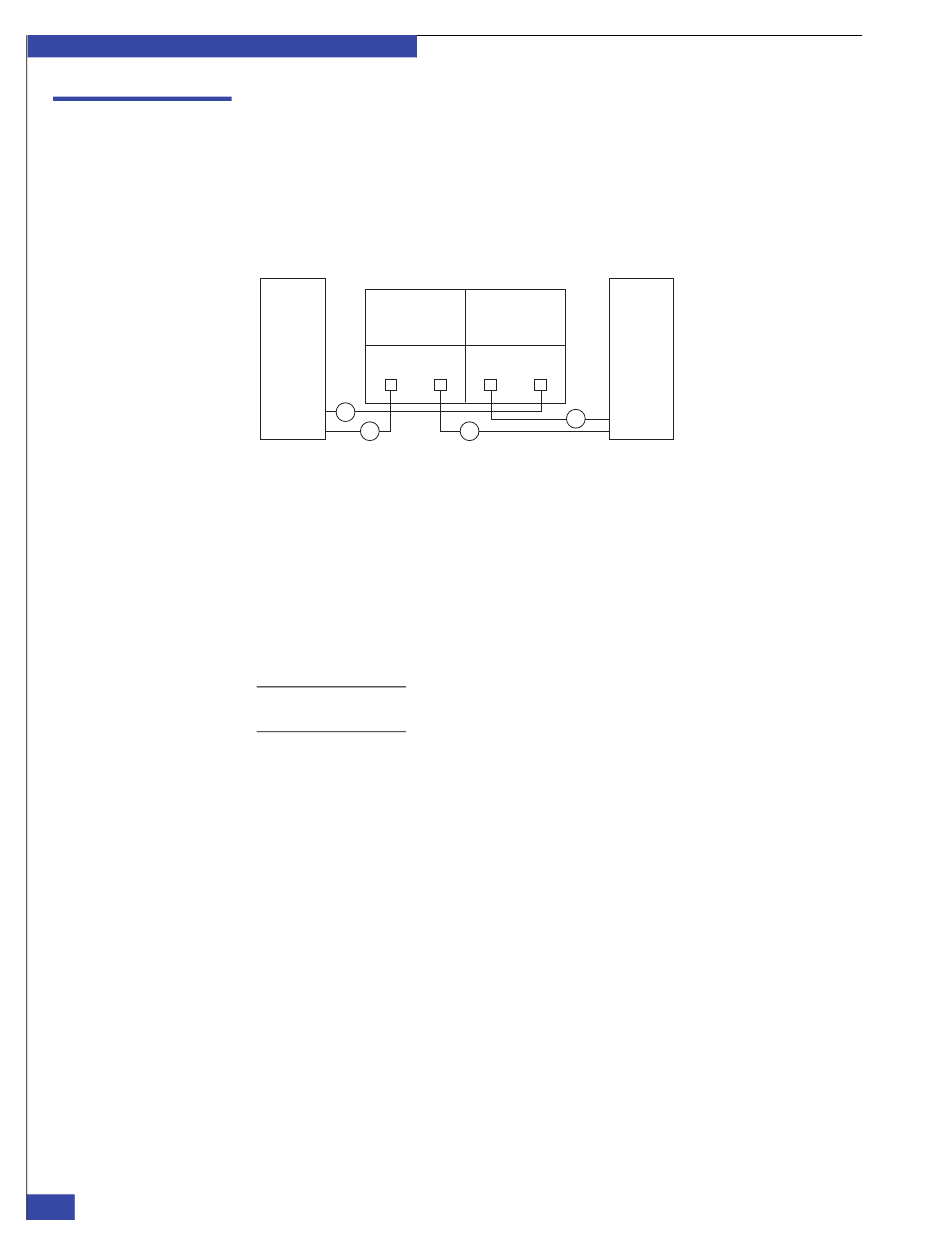

CLARiiON CX3-10 connected to two switches for high availability
Figure 163
1. Connect SP A port 2 Fibre to switch A.
2. Connect SP B port 2 Fibre to switch B.
3. Connect SP A port 3 Fibre to switch B.
4. Connect SP B port 3 Fibre to switch A.
5. Record which SP ports you connected to which switch ports using the "FC/FCoE
cabling worksheet" on page 273.
Note: If you did not use the default SP and FC switch cabling, you must manually select the FC
switch ports the array will use in "Step 2: Install latest File OE on CS 0" on page 139.
