Connect Cables for a Fabric-connected VG8
Figure 74
108 EMC VNX VG2/VG8 Gateway Configuration Setup Guide
4. If required, verify that an RJ-45 Ethernet cable connects from port 2 on
management module B in blade enclosure 0 (blades 2 and 3) to the port labeled B
on CS 1. This is cable #4 in
5. Verify that an RJ-45 Ethernet cable connects from port 0 on management
module B in blade enclosure 0 (blades 2 and 3) to port 1 on management
module B in blade enclosure 1 (blades 4 and 5). This is cable #5 in
page 109.
6. Verify that an RJ-45 Ethernet cable connects from port 0 on management
module A in blade enclosure 0 (blades 2 and 3) to port 1 on management
module A in blade enclosure 1 (blades 4 and 5). This is cable #6 in
page 109.
7. If required, verify that an RJ-45 Ethernet cable connects from port 0 on
management module B in blade enclosure 1 (blades 4 and 5) to port 1 on
management module B in blade enclosure 2 (blades 6 and 7). This is cable #7 in
Figure 75 on page 109.
8. If required, verify that an RJ-45 Ethernet cable connects from port 0 on
management module A in blade enclosure 1 (blades 4 and 5) to port 1 on
management module A in blade enclosure 2 (blades 6 and 7). This is cable #8 in
Figure 75 on page 109.
9. If required, verify that an RJ-45 Ethernet cable connects from port 0 on
management module B in blade enclosure 2 (blades 6 and 7) to port 1 on
management module B in blade enclosure 3 (blades 8 and 9). This is cable #9 in
Figure 75 on page 109.
10. If required, verify that an RJ-45 Ethernet cable connects from port 0 on
management module A in blade enclosure 2 (blades 6 and 7) to port 1 on
management module A in blade enclosure 3 (blades 8 and 9). This is cable #10 in
Figure 75 on page 109.
B
Control Station 1
Control Station 0
4
Blade enclosure 0
Management

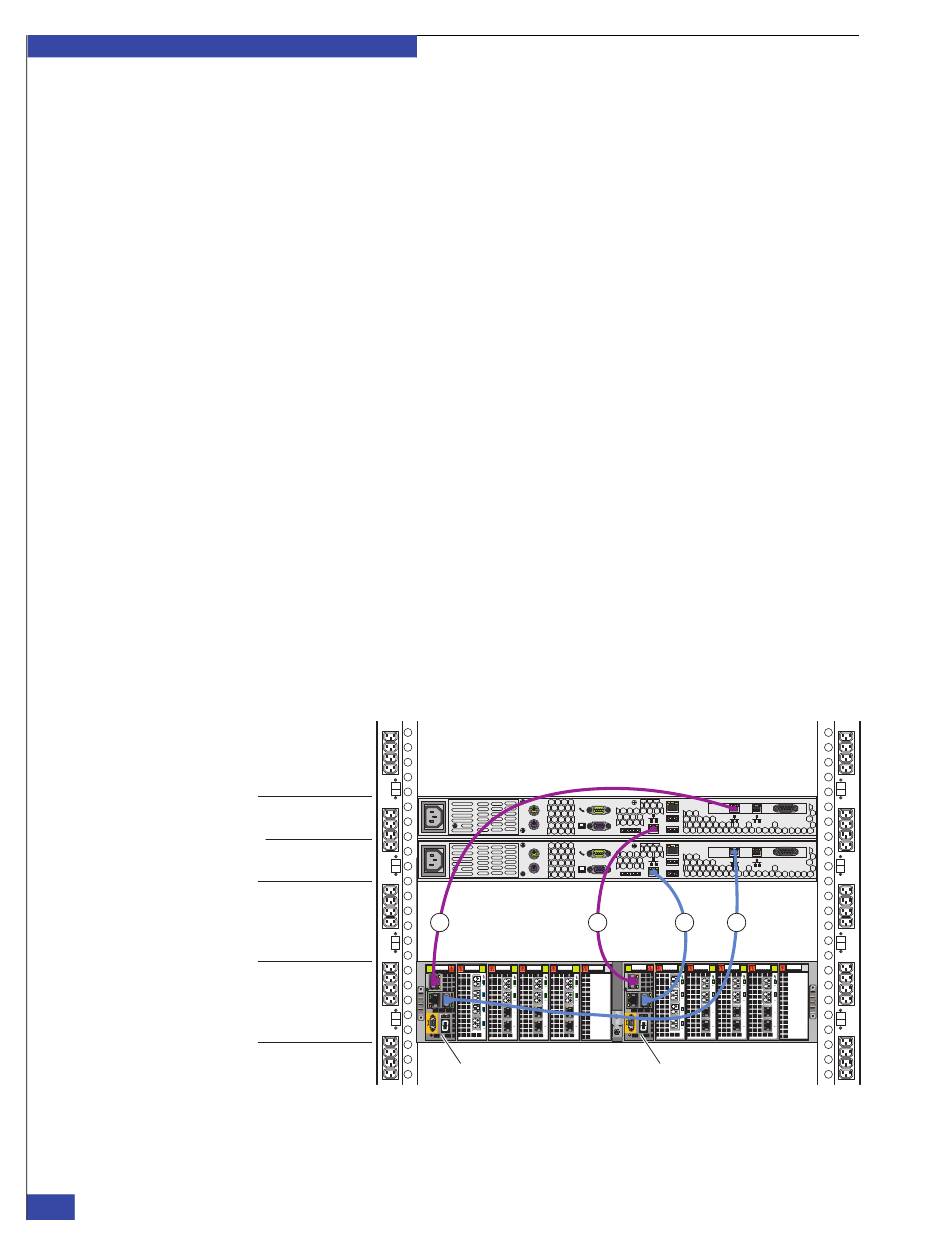

Private LAN cables to CS 0 and CS 1
Figure 74 on page 108.
MODEM plug
VGA socket
MODEM plug
VGA socket
3
module B
Figure 75 on
Figure 75 on
B MGMT
CS
Serial
console
A
B MGMT
CS
Serial
console
A
1 2
Management
module A
A
CNS-001691
