EMC VNX VG2 Setup Manual page 153

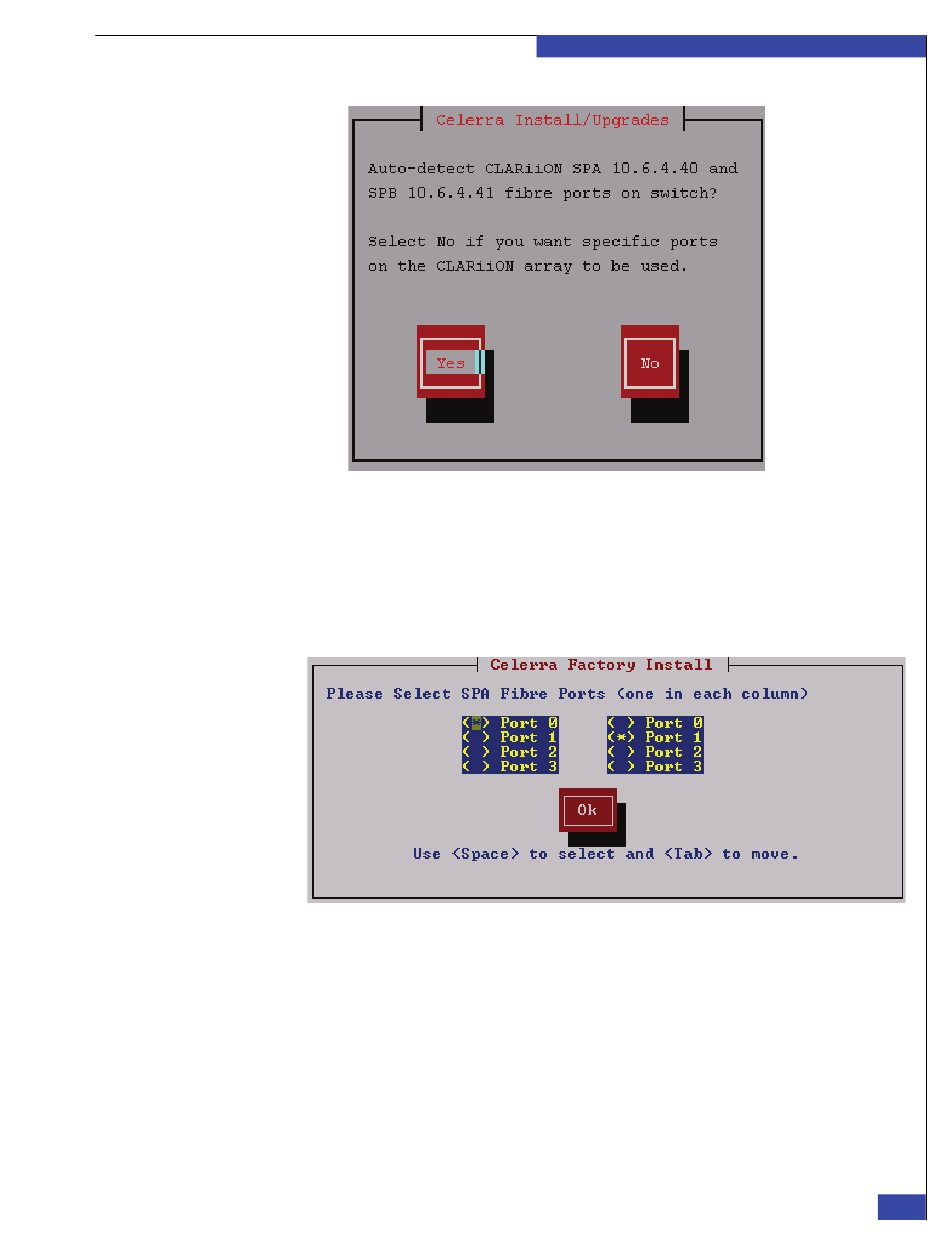

Figure 98 Auto-detect CLARiiON Fibre Channel ports on switch screen
If you select No, you are prompted to manually select the FC switch ports the
array will use (see
switch from the frontend. The right column represents ports going out of the
switch into the backend. Use the Space bar and Tab key to select one port from
each column. Tab to Ok and press Enter to select the ports.
Manually configure CLARiiON Fibre Channel ports on switch screen
Figure 99
f. Tab to Ok, and then press Enter to confirm your choice.
The script will begin configuring the system. The system displays a series of
messages. After approximately 10 minutes, you are prompted with:
Do you wish to continue [yes or no]?:
Figure 99). The left column represents ports going into the
EMC CONFIDENTIAL
Complete Phase 3 Installation
Add additional arrays 153
