VG2 components

Figure 4
Figure 5
36 EMC VNX VG2/VG8 Gateway Configuration Setup Guide

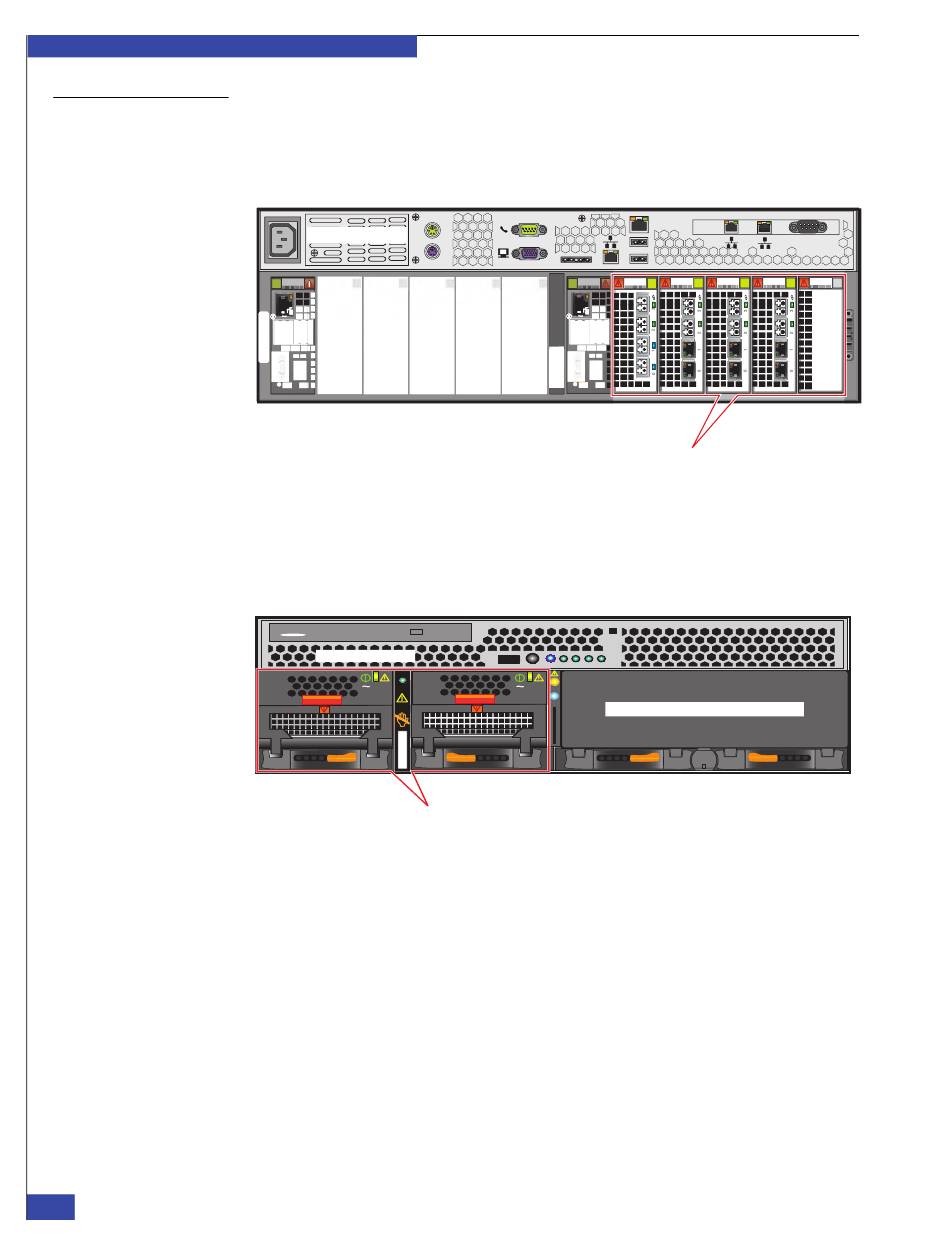

Figure 4 shows the rear view of an VG2 system that is equipped with one Control
Station and one blade in a single blade enclosure. When only one blade is equipped,
I/O filler panels are required in the unused half of the blade enclosure (as shown) to
meet air flow requirements.
Control Station 0
Example of VNX VG2 system with one blade (rear view)
Figure 5 shows the front view of the same VG2 system that is shown in
this example, a CPU/power supply filler assembly fits into the space where a CPU
module and its associated power supply/cooling modules would go if both blades
were equipped in the enclosure.
DVD
Control Station 0
AC
CPU module with power supply/
cooling modules
Example of VNX VG2 system with one blade (front view)
MODEM plug
CS
VGA socket
A
Blade (Data Mover)
AC
AC
CPU/power supply filler assembly
B MGMT
Serial
console
CNS-001642
Figure 4. In
AC
CNS-001640
