Connecting a
VNX5300 or
VNX5500 array

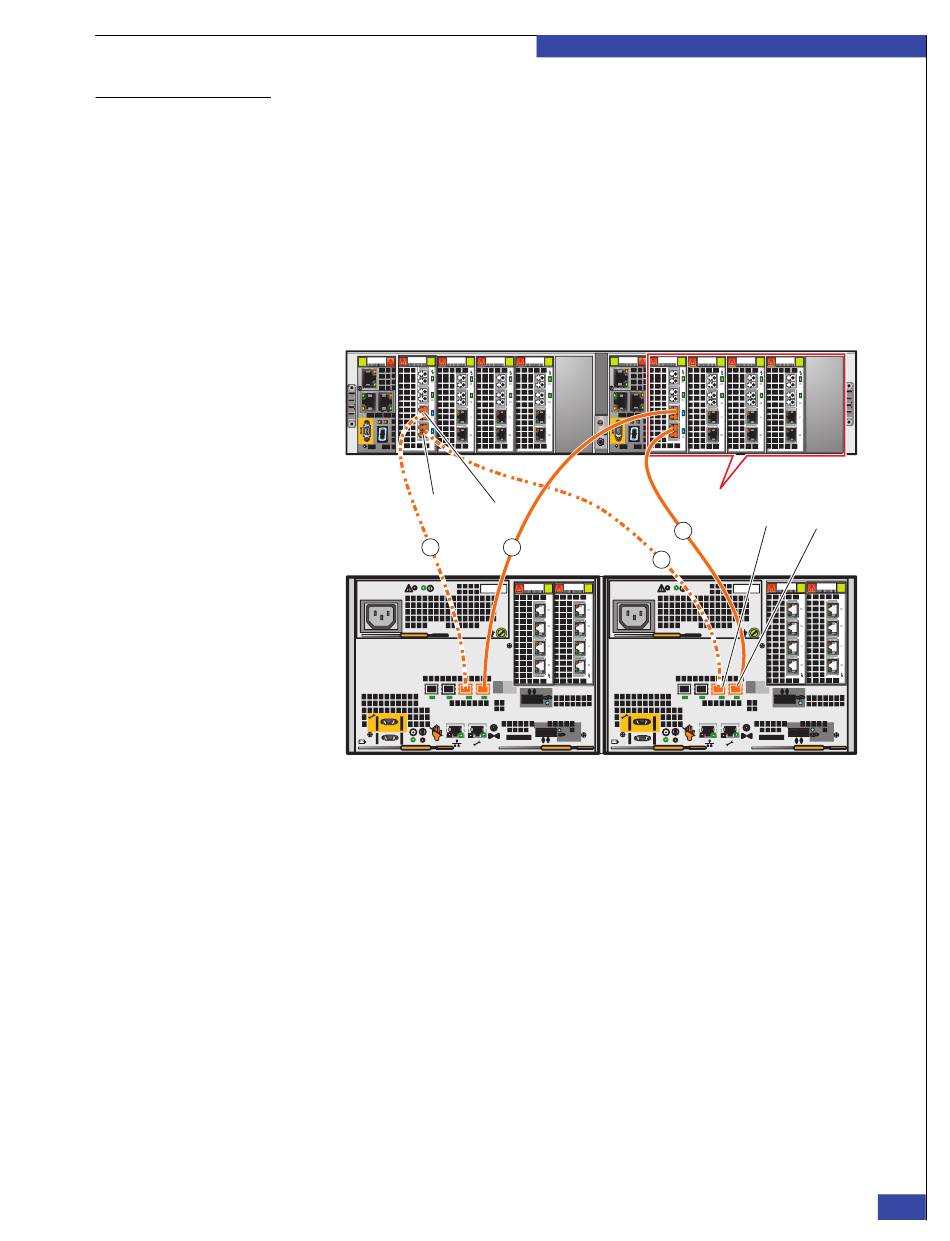

Figure 46
Use Figure 46 to connect the Fibre Channel cables from the I/O modules in the blades
to the array SPs. Use SFPs to connect the ports (see
1. Connect blade 2, slot 0, port 0 to SP A, port 5 (cable 1 in
2. Connect blade 2, slot 0, port 1 to SP B, port 5 (cable 2 in
3. For the two-blade VG2, connect blade 3, slot 0, port 0 to SP A, port 4 (cable 3 in
Figure 46).
4. For the two-blade VG2, connect blade 3, slot 0, port 1 to SP B, port 4 (cable 4 in
Figure 46).
B
VNX VG2
Port 0
4
SP B
DPE
2 3 4
FC cables connect VG2 blades to VNX5300/VNX5500 array (example)
Connect Cables for a Direct-connected VG2
Port 1
2
SP A
8Gb 6Gb
fibre SAS
1 X4
5
6Gb SAS
0 X4
VNX5300/VNX5500
Step 1: Blade Fibre Channel cables
