10. Enter the Control Station external networking configuration information from the
values in the
Note: This is the network connection to the Control Station that is used to remotely
administer the VNX gateway system.

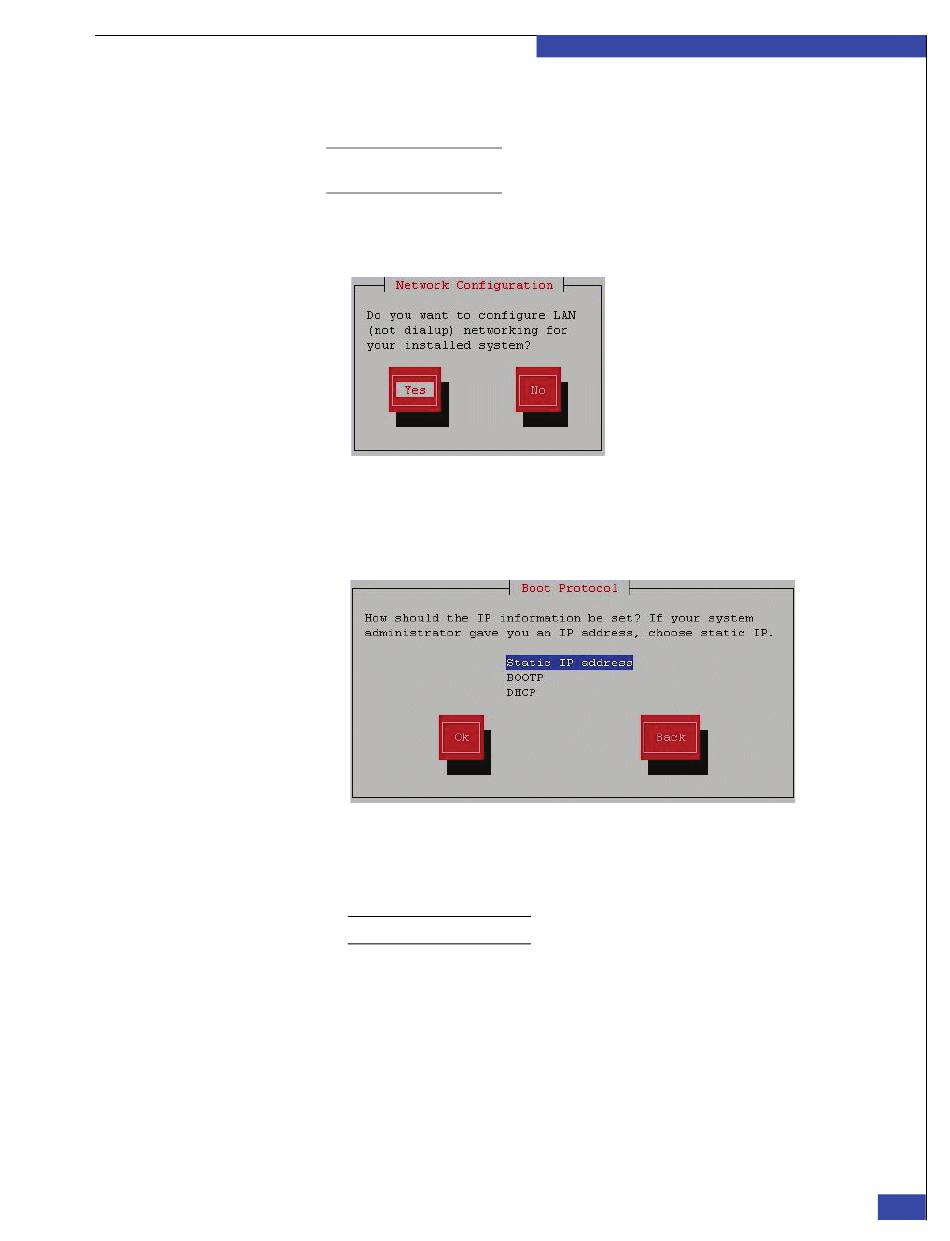

The system displays the Network Configuration dialog box shown in
a. Tab to Yes and then press Enter.
Network Configuration
Figure 116
The system displays the Boot Protocol dialog box shown in
b. Select Static IP address, BOOTP, or DHCP; tab to Ok; and press Enter.
Boot Protocol
Figure 117
If you selected Static IP address, the system displays the Configure TCP/IP
dialog box shown in
Note: If you selected BOOTP or DHCP,
"Control Station 0 networking worksheet" on page
Figure 118 on page
Express Install for File OE release 7.0 or lower
EMC CONFIDENTIAL
Figure
208.
this dialog box is skipped.
NAS Install Options
277:
Figure 116.
117.
