Navisphere Manager procedures
Table 19

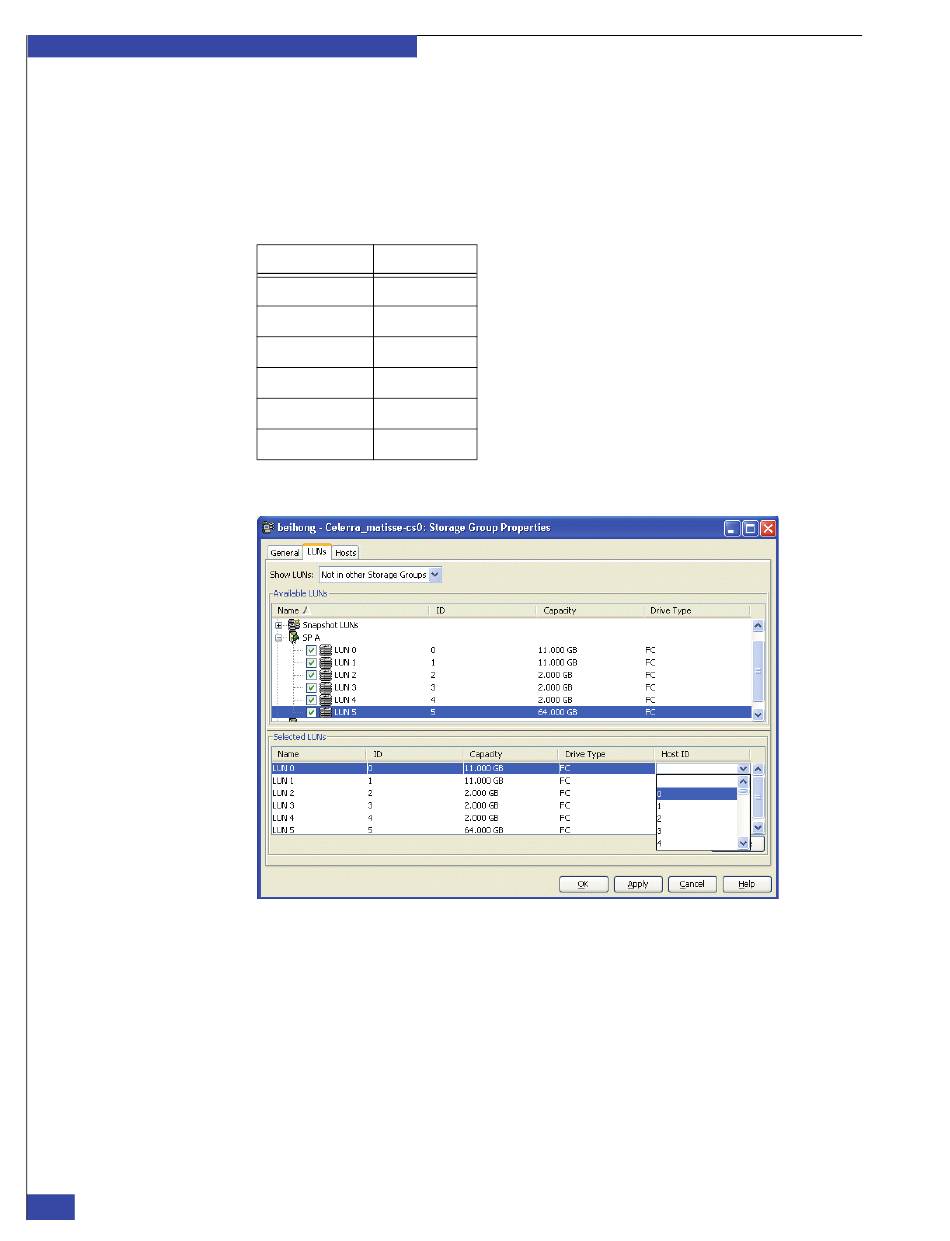

Figure 181
308 EMC VNX VG2/VG8 Gateway Configuration Setup Guide
4. In the Selected LUNs box, select each LUN and set its Host ID, as shown in
Figure 181 on page 308. Clicking a value in the Host ID column gives you a list of
available HLUs.
It is critical that you match the LUN capacity with the correct Host LUN values.
Set the Host LUN (HLU) values as shown in
Host LUN capacities
Capacity Host LUN (HLU)
11.000 GB 0
11.000 GB 1
2.000 GB 2
2.000 GB 3
2.000 GB 4
64.000 GB 5
5. Click OK.
Storage Group Properties dialog box
Table 19:
