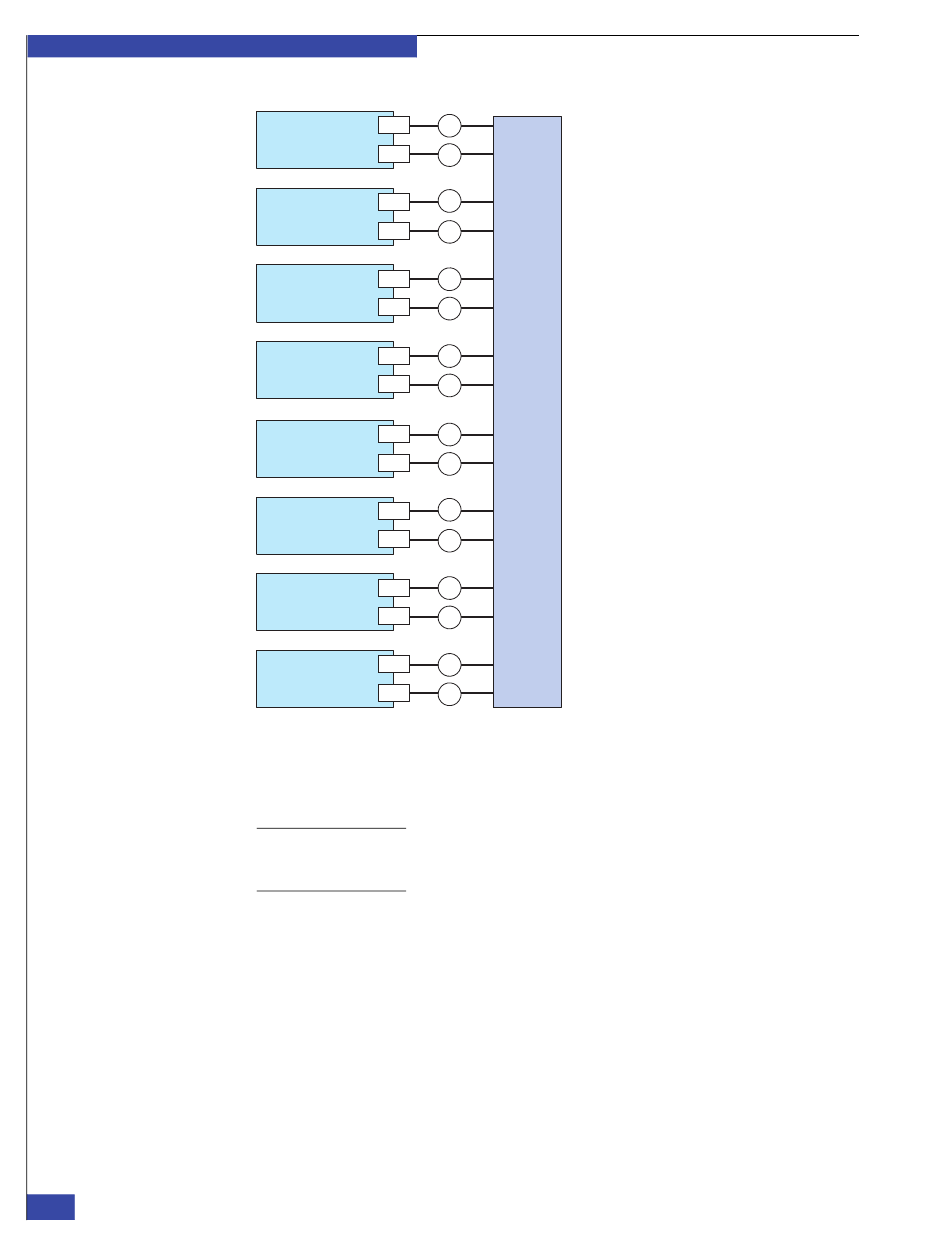

Connect Cables for a Fabric-connected VG8
Figure 56
92 EMC VNX VG2/VG8 Gateway Configuration Setup Guide
Port 0 SFP
Blade 9
SFP
Port 1
SFP
Port 0
Blade 8
SFP
Port 1
SFP
Port 0
Blade 7
Port 1 SFP
Port 0 SFP
Blade 6
Port 1 SFP
SFP
Port 0
Blade 5
SFP
Port 1
SFP
Port 0
Blade 4
Port 1 SFP
SFP
Port 0
Blade 3
SFP
Port 1
Port 0 SFP
Blade 2
SFP
Port 1
Blades connected to a single switch
Record the switch ports you connect in the
page 273.
Note: It is recommended that you label each end of the FC cable with the blade number, I/O
module, port name, FC switch port number, and FC switch number, before you connect the
cable.
16
15
14
13
12
11
10
9
Fibre
Channel
Switch
8
7
6
5
4
3
2
1
CNS-001851
"FC/FCoE cabling worksheet" on
