Connect Cables for a Direct-connected VG8

Step 2: Serial cables

Figure 81
Figure 82
118 EMC VNX VG2/VG8 Gateway Configuration Setup Guide
Serial cables connect the Control Station to the CallHome modem.
To connect the serial cables:
1. Connect the modem serial cable (labeled CS telephone icon) from the CS 0 serial
port to the first external modem
analog telephone line supplied by the customer.
Control Station

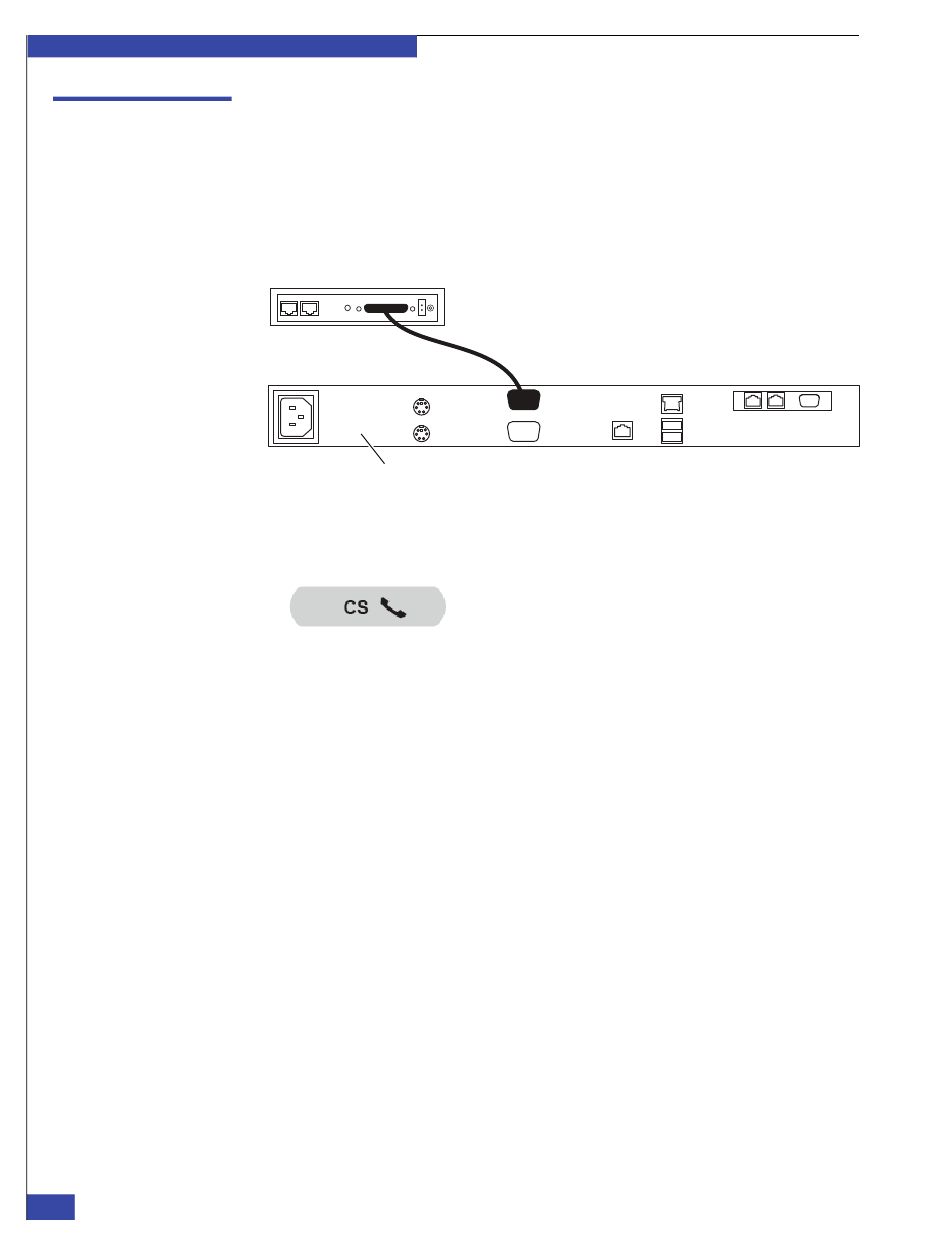

Serial connection from Control Station to modem
Figure 82 shows the label clip on the modem serial cable.
Label for serial modem cable for the CallHome modem
2. For dual Control Station systems, connect the modem serial cable (labeled CS
telephone icon) from the CS 1 serial port to the second external modem. Then,
connect the modem to an analog telephone line supplied by the customer.
(Figure 81). Then connect the modem to an
Modem
CIP-001139
