EMC VNX VG2 Setup Manual page 222

EMC CONFIDENTIAL
NAS Install Options

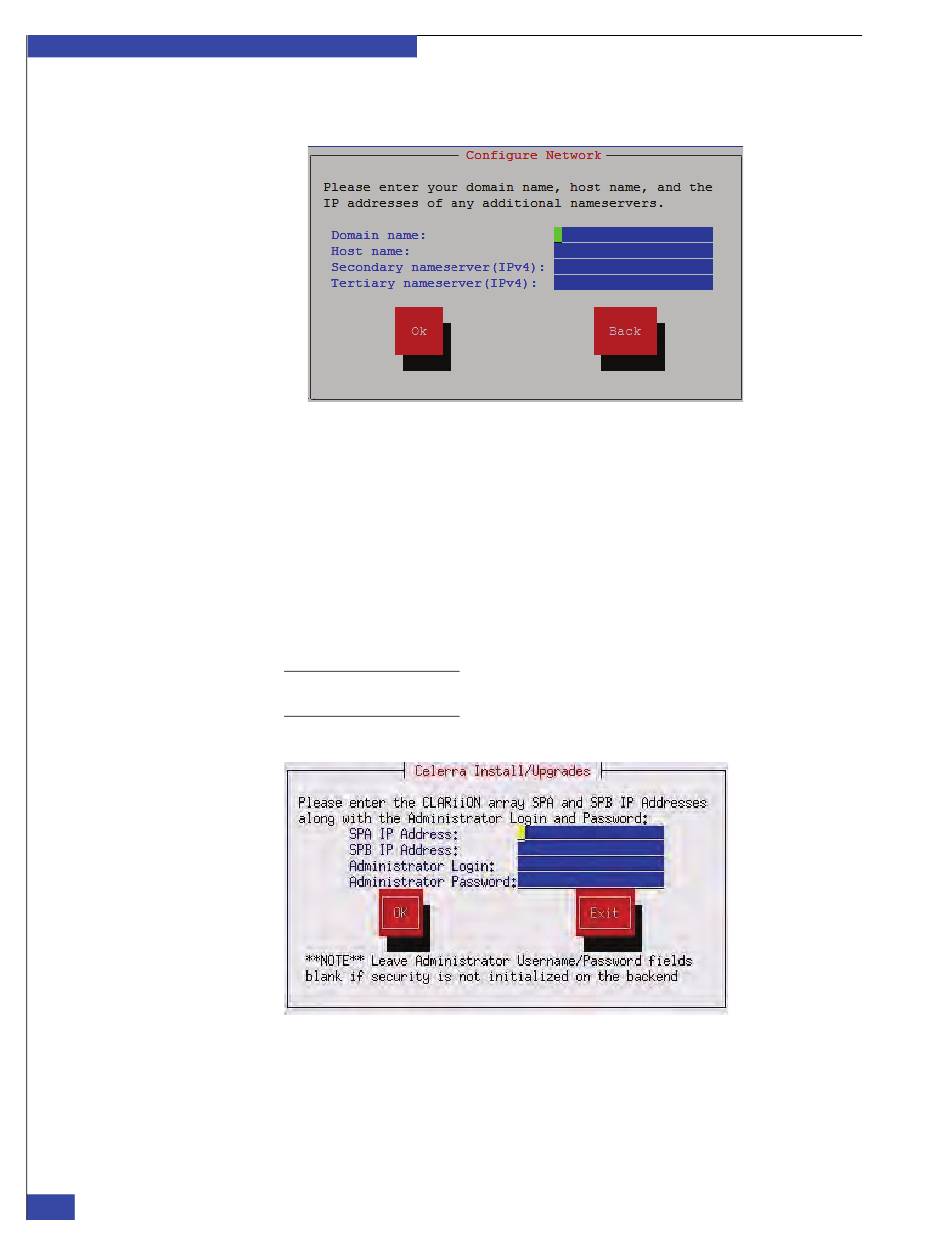

Figure 143
Figure 144
222 EMC VNX VG2/VG8 Gateway Configuration Setup Guide
e. Enter the domain and hostname for the Control Station. Optionally, enter
secondary and tertiary nameserver IP addresses. Tab to Ok and press Enter.
Example of Configure Network window
The system detects the number of Data Movers and the backend type of your
system.
8. If prompted (Figure 144):
a. Enter the values for the IP addresses of SP A and SP B in the designated fields.
Obtain these values from the
b. If security is initialized on the backend, enter the administrator login and
password for the VNX array. Otherwise, leave these fields blank.
c. Tab to Ok and press Enter. The system will now verify the IP addresses.
Note: This prompt is not displayed for gateway systems that are using a Symmetrix
backend for the boot array.
VNX SP settings
"VNX boot array worksheet" on page 276.
