1.3.2.2
Rear Panel
Chapter 3. REAR PANEL CONNECTORS
External cables are attached to connectors on the SLM-5650B's rear panel (Figure 1-5). Each
connector is described in detail in Chapter 3.
Introduction

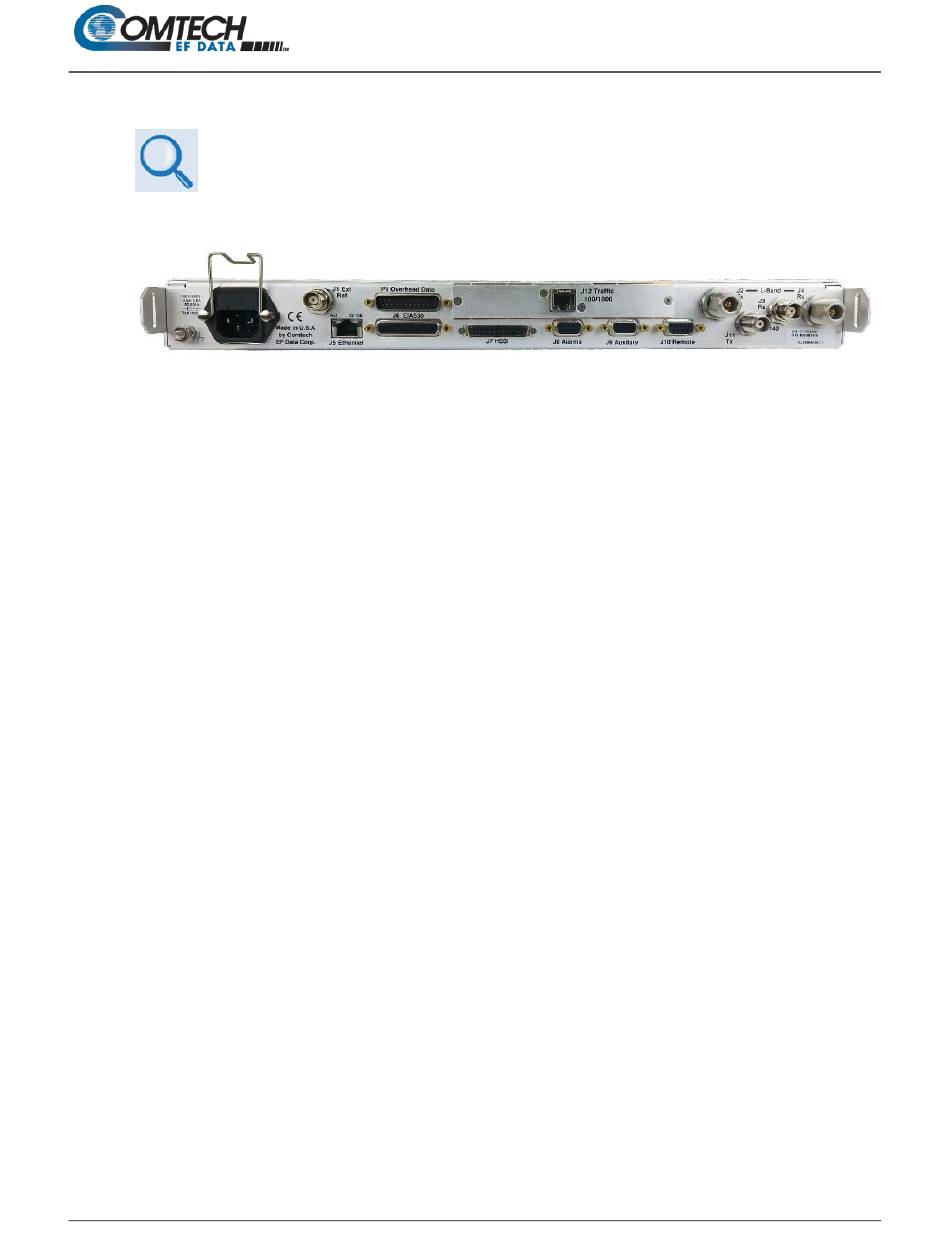

Figure 1-5. SLM-5650B Rear Panel
1–6
SLM-5650B Satellite Modem
PINOUTS
AND
Revision 2
MN-SLM-5650B
