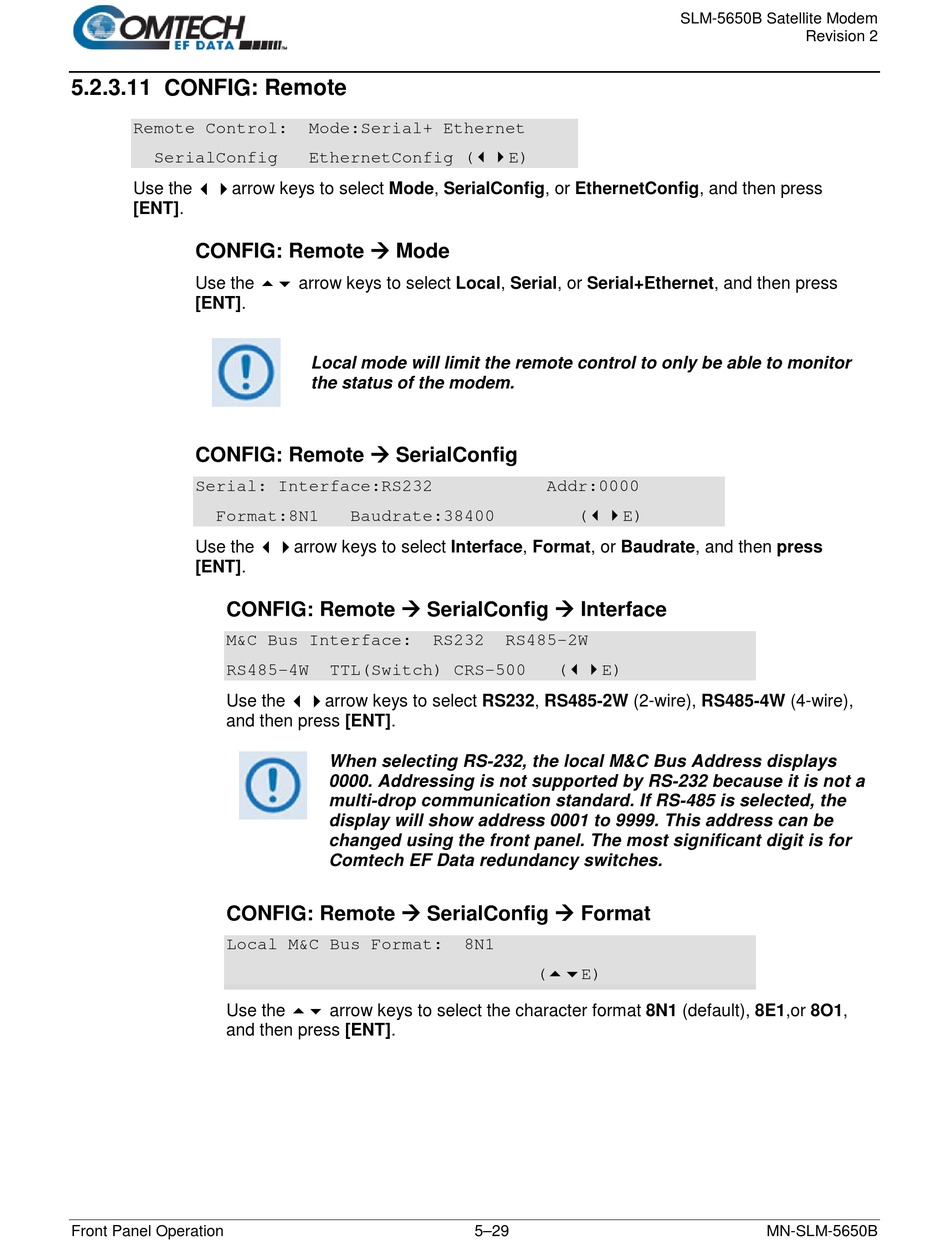

5.2.3.11 CONFIG: Remote

Remote Control:
SerialConfig
Use the arrow keys to select Mode, SerialConfig, or EthernetConfig, and then press
[ENT].
CONFIG: Remote  Mode
Use the  arrow keys to select Local, Serial, or Serial+Ethernet, and then press
[ENT].
CONFIG: Remote  SerialConfig
Serial: Interface:RS232
Format:8N1
Use the arrow keys to select Interface, Format, or Baudrate, and then press
[ENT].
CONFIG: Remote  SerialConfig  Interface
M&C Bus Interface:
RS485-4W
Use the arrow keys to select RS232, RS485-2W (2-wire), RS485-4W (4-wire),
and then press [ENT].
CONFIG: Remote  SerialConfig  Format
Local M&C Bus Format:
Use the  arrow keys to select the character format 8N1 (default), 8E1,or 8O1,
and then press [ENT].
Front Panel Operation
Mode:Serial+ Ethernet
EthernetConfig (E)
Local mode will limit the remote control to only be able to monitor
the status of the modem.
Baudrate:38400
RS232
TTL(Switch) CRS-500
When selecting RS-232, the local M&C Bus Address displays
0000. Addressing is not supported by RS-232 because it is not a
multi-drop communication standard. If RS-485 is selected, the
display will show address 0001 to 9999. This address can be
changed using the front panel. The most significant digit is for
Comtech EF Data redundancy switches.
8N1
5–29
SLM-5650B Satellite Modem
Addr:0000
(E)
RS485-2W
(E)
(E)
