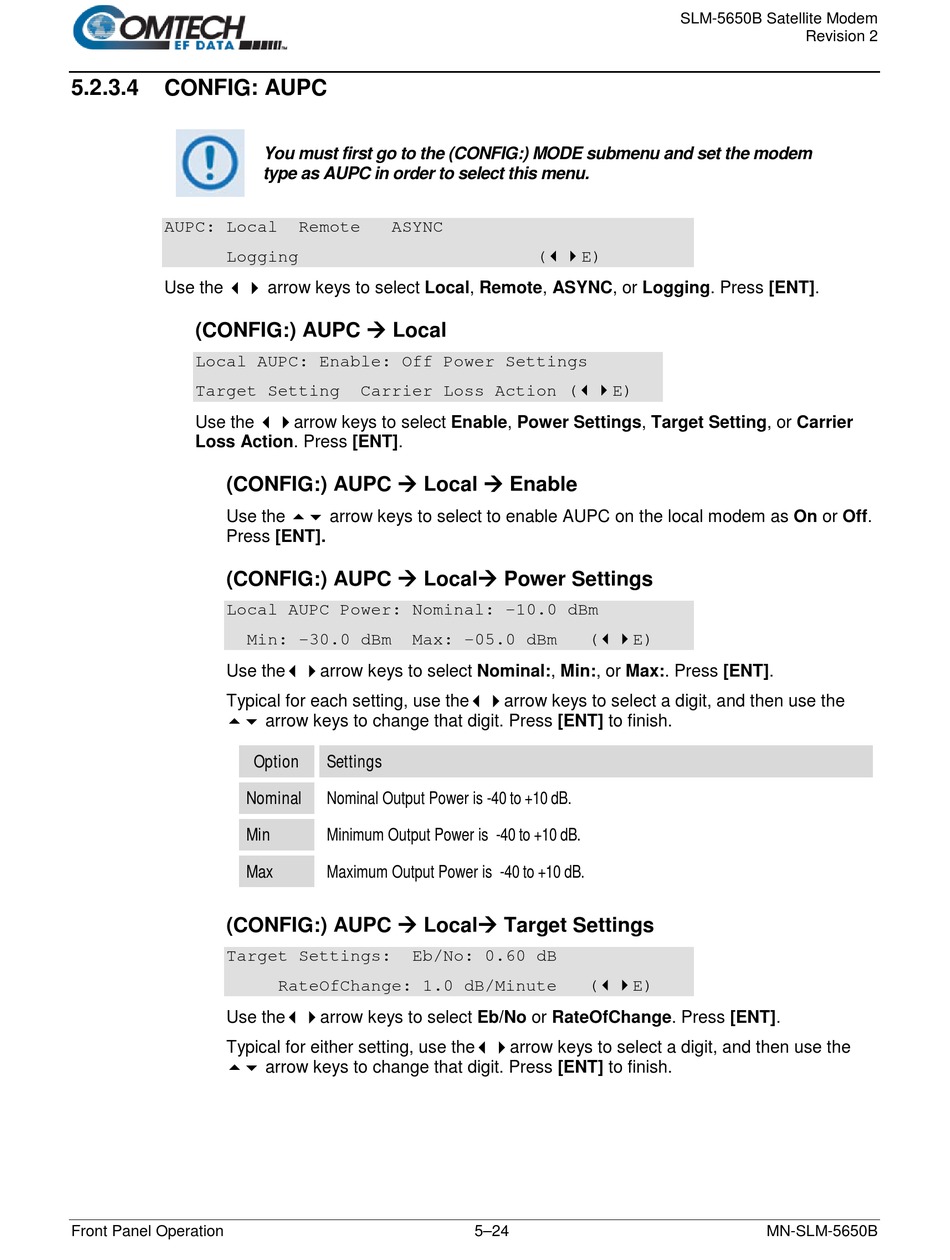

Config: Aupc - Comtech EF Data SLM-5650B Installation And Operation Manual

5.2.3.4

CONFIG: AUPC

AUPC: Local
Logging
Use the  arrow keys to select Local, Remote, ASYNC, or Logging. Press [ENT].
(CONFIG:) AUPC  Local
Local AUPC: Enable: Off Power Settings
Target Setting
Use the arrow keys to select Enable, Power Settings, Target Setting, or Carrier
Loss Action. Press [ENT].
(CONFIG:) AUPC  Local  Enable
Use the  arrow keys to select to enable AUPC on the local modem as On or Off.
Press [ENT].
(CONFIG:) AUPC  Local Power Settings
Local AUPC Power: Nominal: -10.0 dBm
Min: -30.0 dBm
Use thearrow keys to select Nominal:, Min:, or Max:. Press [ENT].
Typical for each setting, use thearrow keys to select a digit, and then use the
 arrow keys to change that digit. Press [ENT] to finish.
Nominal
Min
Max
(CONFIG:) AUPC  Local Target Settings
Target Settings:
Use thearrow keys to select Eb/No or RateOfChange. Press [ENT].
Typical for either setting, use thearrow keys to select a digit, and then use the
 arrow keys to change that digit. Press [ENT] to finish.
Front Panel Operation
You must first go to the (CONFIG:) MODE submenu and set the modem
type as AUPC in order to select this menu.
Remote ASYNC
Carrier Loss Action (E)
Max: -05.0 dBm
Option Settings
Nominal Output Power is -40 to +10 dB.
Minimum Output Power is -40 to +10 dB.
Maximum Output Power is -40 to +10 dB.
Eb/No: 0.60 dB
RateOfChange: 1.0 dB/Minute
(E)
(E)
(E)
