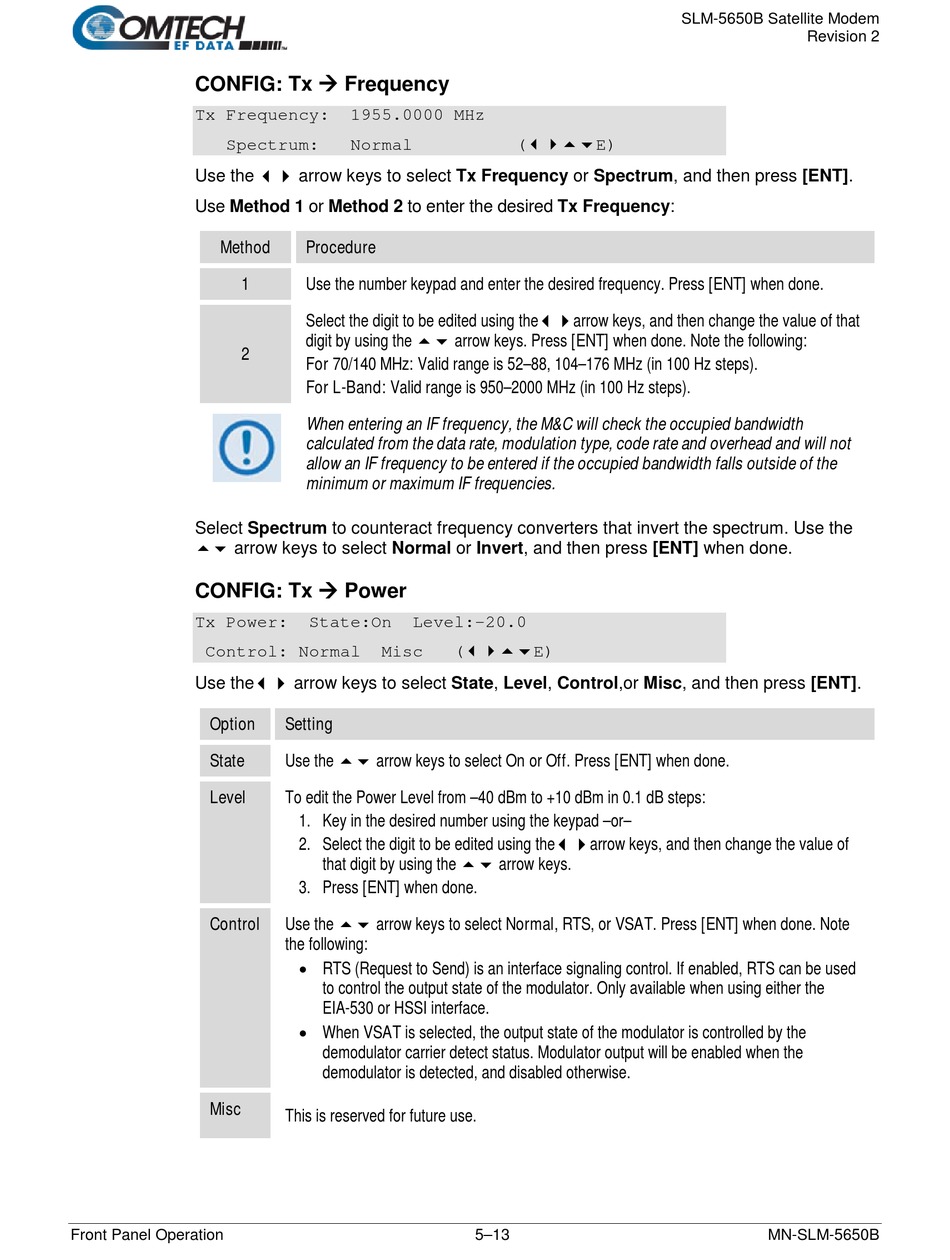

Comtech EF Data SLM-5650B Installation And Operation Manual page 97

CONFIG: Tx  Frequency
Tx Frequency:
Spectrum:
Use the  arrow keys to select Tx Frequency or Spectrum, and then press [ENT].
Use Method 1 or Method 2 to enter the desired Tx Frequency:
Method
1
2
Select Spectrum to counteract frequency converters that invert the spectrum. Use the
 arrow keys to select Normal or Invert, and then press [ENT] when done.
CONFIG: Tx  Power
Tx Power:
Control: Normal
Use the arrow keys to select State, Level, Control,or Misc, and then press [ENT].
Option
State
Level
Control
Misc
Front Panel Operation
1955.0000 MHz
Normal
Procedure
Use the number keypad and enter the desired frequency. Press [ENT] when done.
Select the digit to be edited using thearrow keys, and then change the value of that
digit by using the  arrow keys. Press [ENT] when done. Note the following:
For 70/140 MHz: Valid range is 52–88, 104–176 MHz (in 100 Hz steps).
For L-Band: Valid range is 950–2000 MHz (in 100 Hz steps).
When entering an IF frequency, the M&C will check the occupied bandwidth
calculated from the data rate, modulation type, code rate and overhead and will not
allow an IF frequency to be entered if the occupied bandwidth falls outside of the
minimum or maximum IF frequencies.
State:On Level:-20.0
Misc (E)
Setting
Use the  arrow keys to select On or Off. Press [ENT] when done.
To edit the Power Level from –40 dBm to +10 dBm in 0.1 dB steps:
1. Key in the desired number using the keypad –or–
2. Select the digit to be edited using thearrow keys, and then change the value of
that digit by using the  arrow keys.
3. Press [ENT] when done.
Use the  arrow keys to select Normal, RTS, or VSAT. Press [ENT] when done. Note
the following:
• RTS (Request to Send) is an interface signaling control. If enabled, RTS can be used
to control the output state of the modulator. Only available when using either the
EIA-530 or HSSI interface.
• When VSAT is selected, the output state of the modulator is controlled by the
demodulator carrier detect status. Modulator output will be enabled when the
demodulator is detected, and disabled otherwise.
This is reserved for future use.
(E)
5–13
