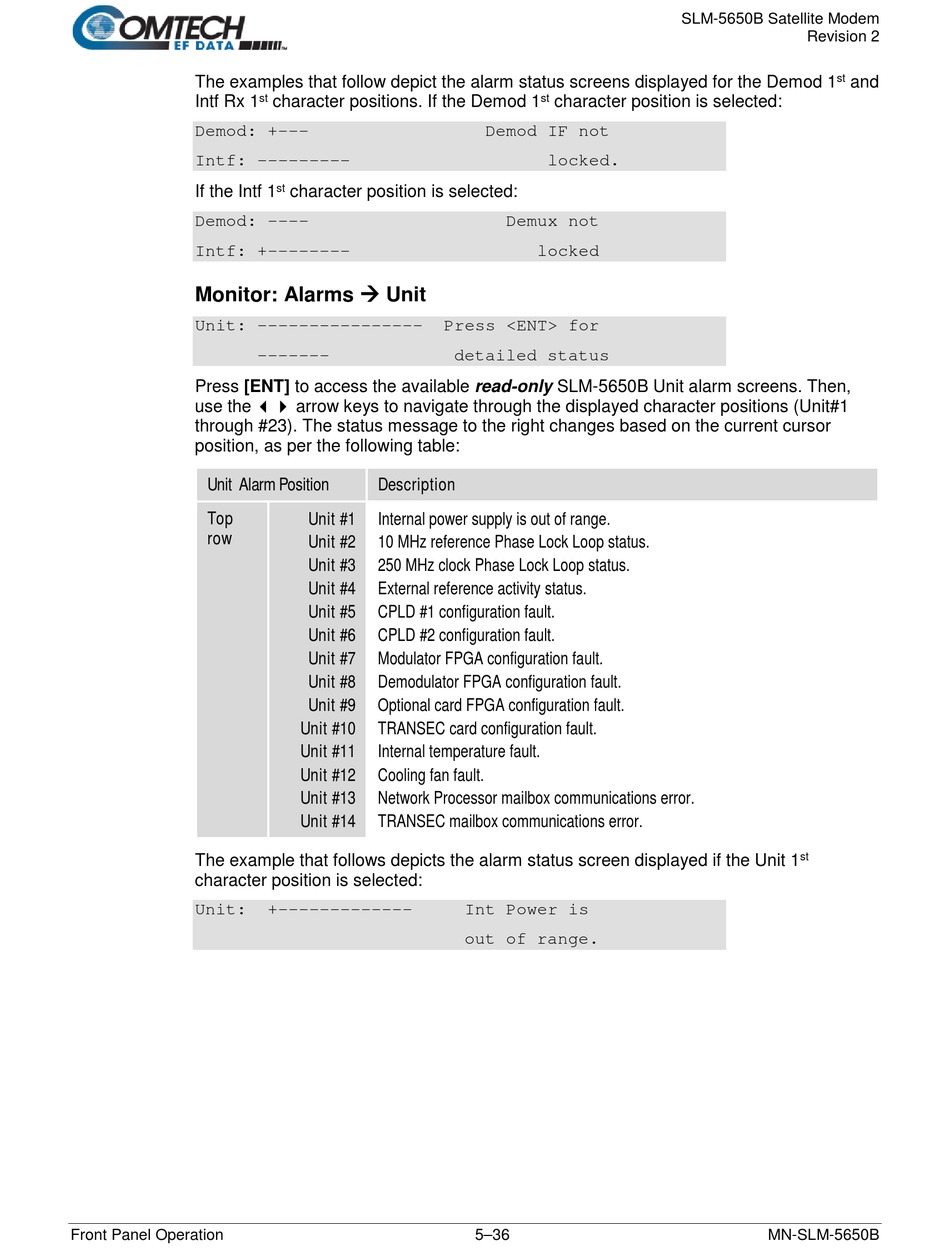

The examples that follow depict the alarm status screens displayed for the Demod 1
Intf Rx 1
Demod: +---
Intf: ---------
If the Intf 1
Demod: ----
Intf: +--------
Monitor: Alarms  Unit
Unit: ----------------
Press [ENT] to access the available read-only SLM-5650B Unit alarm screens. Then,
use the  arrow keys to navigate through the displayed character positions (Unit#1
through #23). The status message to the right changes based on the current cursor
position, as per the following table:
Unit Alarm Position
Top
row
The example that follows depicts the alarm status screen displayed if the Unit 1
character position is selected:
Unit:
Front Panel Operation
st
character positions. If the Demod 1
st
character position is selected:
-------
Description
Unit #1 Internal power supply is out of range.
Unit #2
10 MHz reference Phase Lock Loop status.
Unit #3
250 MHz clock Phase Lock Loop status.
Unit #4 External reference activity status.
Unit #5 CPLD #1 configuration fault.
Unit #6
CPLD #2 configuration fault.
Unit #7
Modulator FPGA configuration fault.
Unit #8 Demodulator FPGA configuration fault.
Unit #9 Optional card FPGA configuration fault.
Unit #10 TRANSEC card configuration fault.
Unit #11
Internal temperature fault.
Unit #12 Cooling fan fault.
Unit #13 Network Processor mailbox communications error.
Unit #14 TRANSEC mailbox communications error.
+-------------
st
character position is selected:
Demod IF not
locked.
Demux not
locked
Press <ENT> for
detailed status
Int Power is
out of range.
