When the modem is operating in (Static) Bridge Mode, Ethernet communication between the Base
Modem and the NP Interface is disabled, as the Base Modem does not support secure network
management interfaces.
8.6.3

User Login

Access to the modem's NP HTTP/HTTPS Interface depends on the IP Interface Security Mode
setting selected for the interface (via the Admin | Security page – see Section 8.6.5.2.3 for more
information).
From any compatible Web browser, enter the NP Interface IP Address into the browser's Address
area as follows (where "xxx.xxx.xxx.xxx" represents the IP Address of the NP Interface):
For non-secure HTTP session (Low Level Security selected) – http:// xxx.xxx.xxx.xxx;
For secure HTTPS session (High Level Security selected) – https:// xxx.xxx.xxx.xxx.
When prompted, type in a valid User Name and Password, similar to the dialog box shown to the
right. The default for both is comtech. Click [OK] to continue.
Note: The NP Interface User Name and Password are each restricted to a minimum of 7 characters
and a maximum of 25 characters, excluding < (ASCII Code 60), > (ASCII Code 62), " (ASCII Code
34), and ~ (ASCII Code 126).
Network Processor (NP) Interface

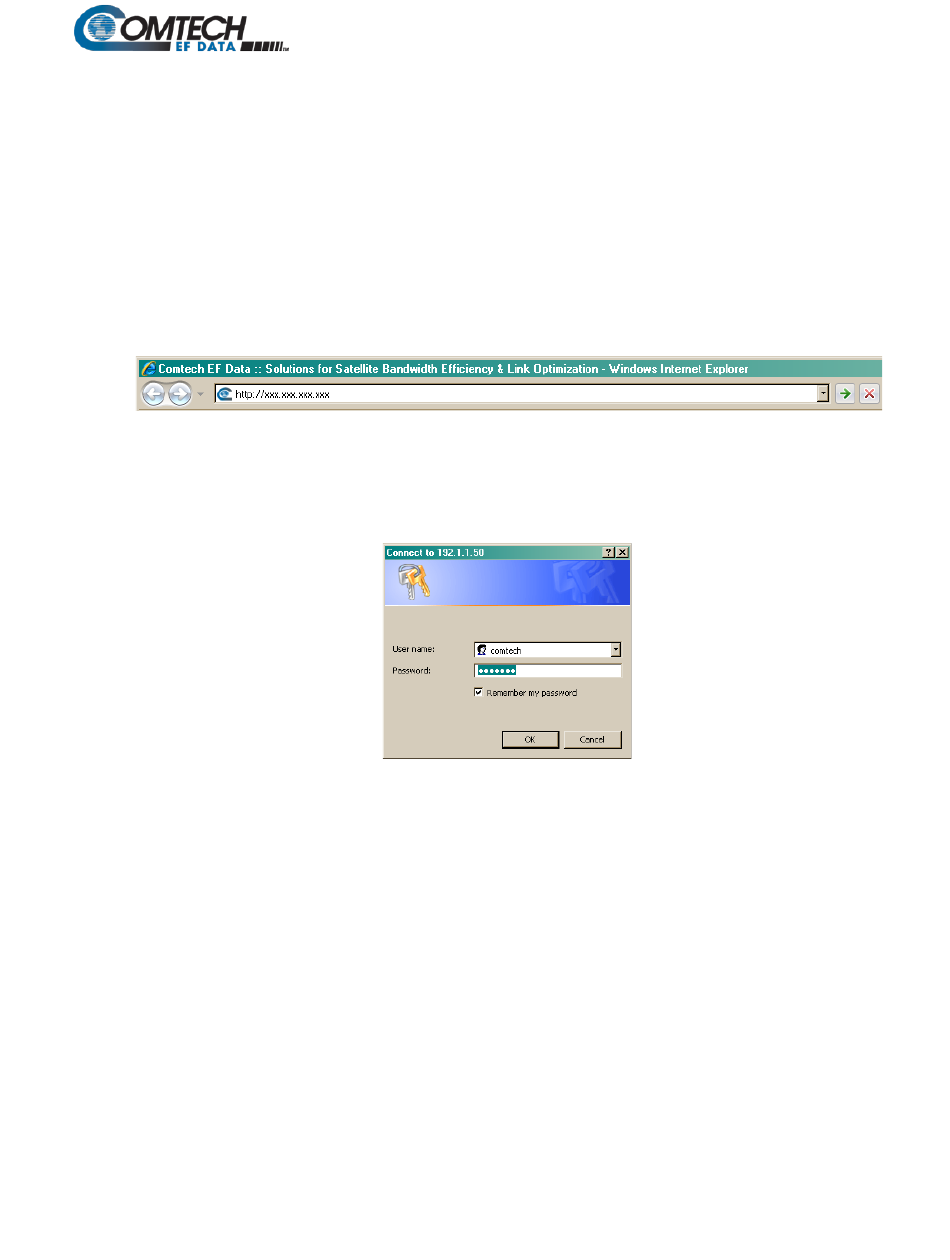

Figure 8-4. Web Browser Address Line

Figure 8-5. Password Screen
