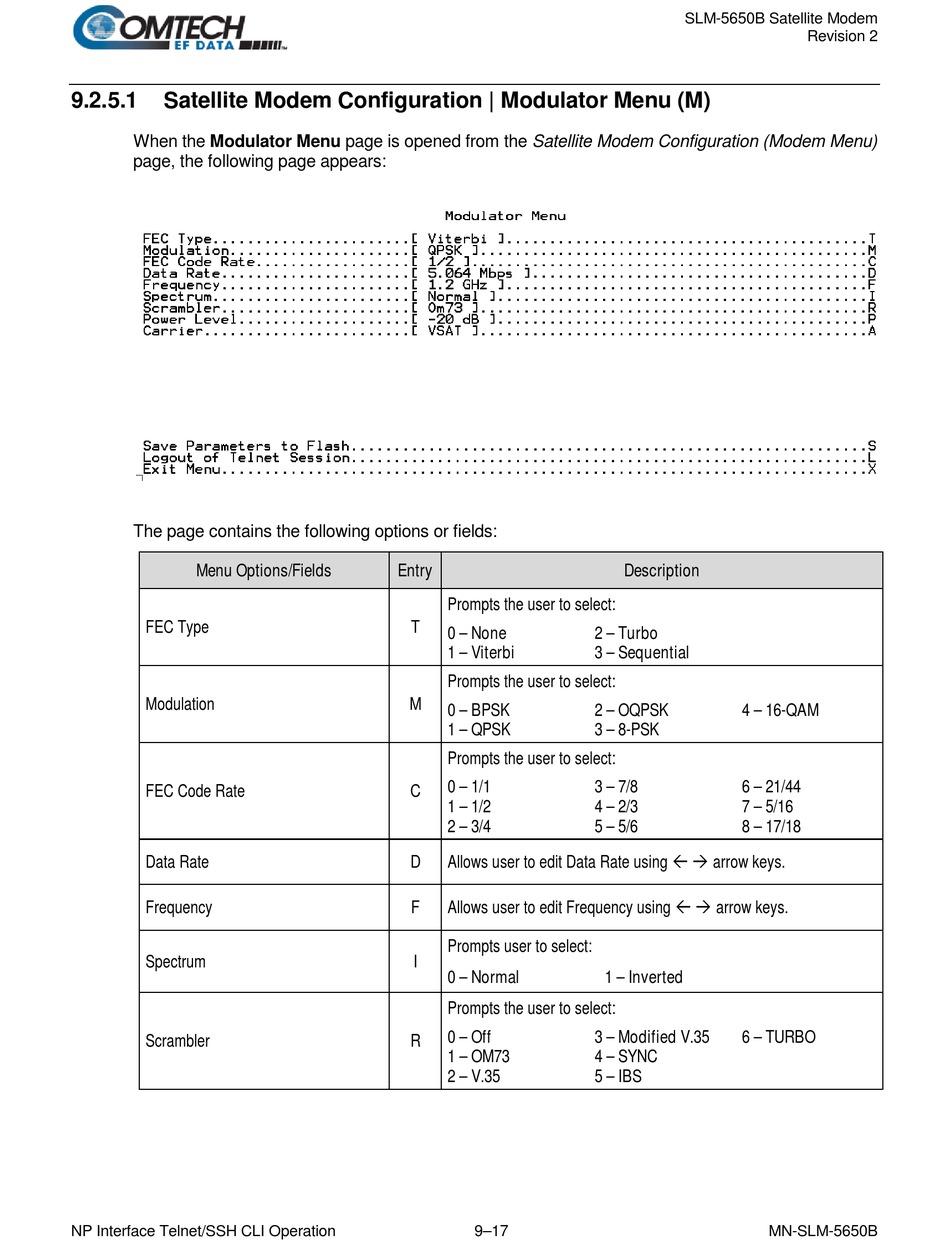

Satellite Modem Configuration | Modulator Menu (M)

When the Modulator Menu page is opened from the Satellite Modem Configuration (Modem Menu)
page, the following page appears:
The page contains the following options or fields:
Menu Options/Fields
FEC Type
Modulation
FEC Code Rate
Data Rate
Frequency
Spectrum
Scrambler
NP Interface Telnet/SSH CLI Operation
Entry
Prompts the user to select:
T
0 – None
1 – Viterbi
Prompts the user to select:
M
0 – BPSK
1 – QPSK
Prompts the user to select:
0 – 1/1
C
1 – 1/2
2 – 3/4
D Allows user to edit Data Rate using   arrow keys.
F Allows user to edit Frequency using   arrow keys.
Prompts user to select:
I
0 – Normal
Prompts the user to select:
0 – Off
R
1 – OM73
2 – V.35
9–17
SLM-5650B Satellite Modem
Description
2 – Turbo
3 – Sequential
2 – OQPSK 4 – 16-QAM
3 – 8-PSK
3 – 7/8 6 – 21/44
4 – 2/3 7 – 5/16
5 – 5/6 8 – 17/18
1 – Inverted
3 – Modified V.35 6 – TURBO
4 – SYNC
5 – IBS
